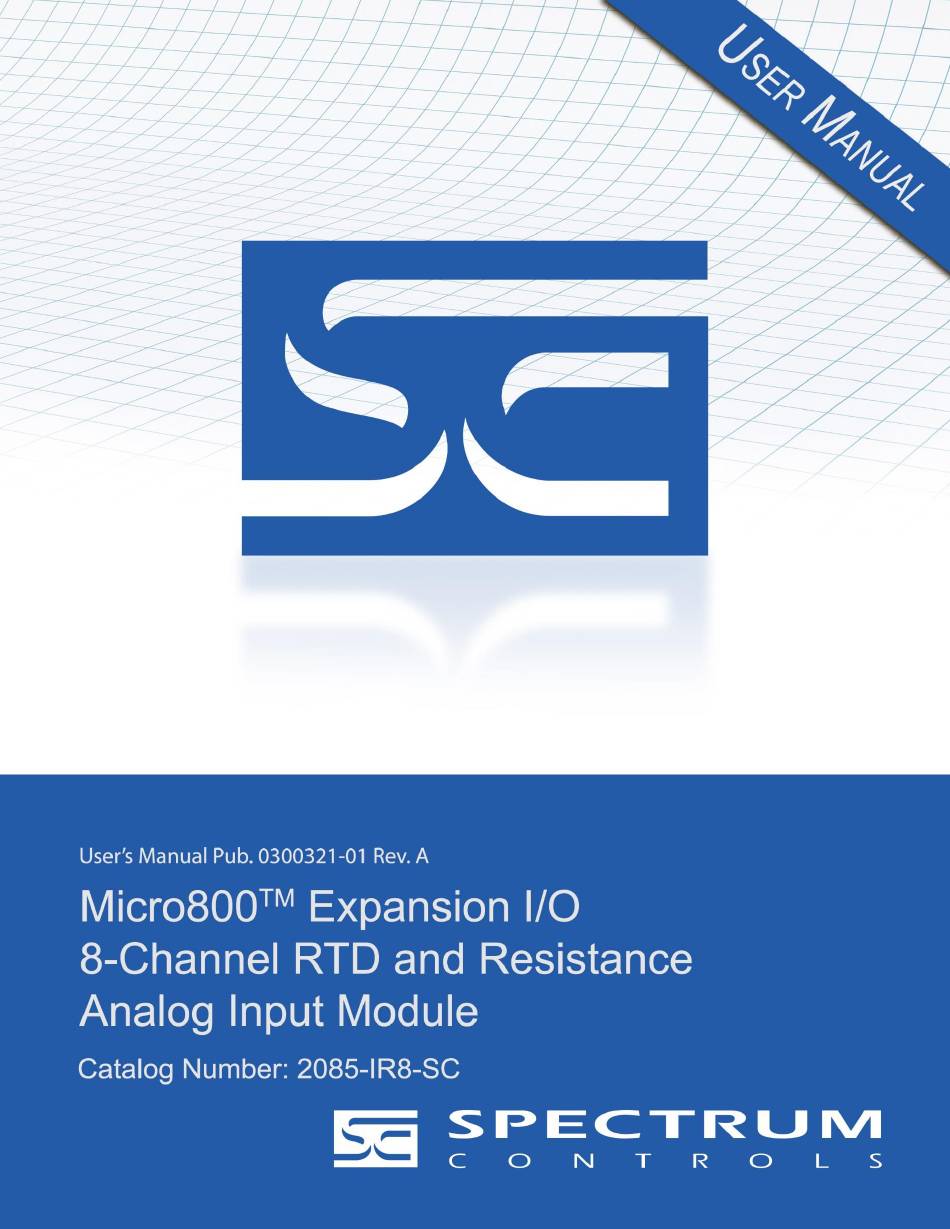

Spectrum Controls Micro800 2085-IR8-SC User Manual

Expansion i/o 8-channel rtd and resistance analog input module
Hide thumbs Also See for Micro800 2085-IR8-SC:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Micro800 2085-IR8-SC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spectrum Controls Micro800 2085-IR8-SC

Summary of Contents for Spectrum Controls Micro800 2085-IR8-SC

  • Page 2: Important Notes

    No patent liability is assumed by Spectrum Controls, Inc. with respect to the use of any of the information, products, circuits, programming, or services referenced herein.

  • Page 3: Table Of Contents

    Micro800 8-Channel RTD and Resistance Analog Input Module Table of Contents IMPORTANT NOTES ............................II CHAPTER 1 MODULE OVERVIEW ........................1-1 1.1 G ..........................1-1 ECTION ENERAL ESCRIPTION 1.2 I ..........................1-3 ECTION NPUT PECIFICATIONS 1.3 D ............................1-7 ECTION ORMATS 1.4 H ..........................
  • Page 4 Micro800 8-Channel RTD and Resistance Analog Input Module 3.6.1 Data Format ............................3-18 3.6.2 Input Type ............................... 3-18 3.6.3 Channel Bias ............................3-21 3.6.4 Channel Temperature ..........................3-22 3.6.5 Connection Method ..........................3-22 3.6.6 Input ADC Filter ............................3-24 3.6.7 Open Circuit Detection ..........................3-24 3.6.8 Stimulus/Response Sequences ........................
  • Page 5 Micro800 8-Channel RTD and Resistance Analog Input Module Preface Read this preface to familiarize yourself with the rest of the manual. This preface covers the following topics: • Who should use this manual • How to use this manual • Related documentation •...
  • Page 6 Micro800 8-Channel RTD and Resistance Analog Input Module Allen-Bradley Refer to this Document Pub. No. Micro850 24-Point Installing 24-point PLC Programmable Controllers 2080-IN007 Installation Instructions Micro850 48-Point Installing 48-point PLC Programmable Controllers 2080-IN008 Installation Instructions Micro870 24-Point Installing 24-point PLC Programmable Controllers 2080-IN012 Installation Instructions...
  • Page 7 Micro800 8-Channel RTD and Resistance Analog Input Module Documentation If you would like a manual, you can download a free electronic version from the Internet at www.spectrumcontrols.com Conventions Used in This Manual The following conventions are used throughout this manual: •...
  • Page 8 viii Micro800 8-Channel RTD and Resistance Analog Input Module User's Manual Pub. 0300321-01 Rev. A...

  • Page 9: Chapter 1 Module Overview

    Chapter 1 Module Overview This chapter describes the following topics: • General description • Input specifications • Data formats • Hardware features • System overview ™ The Micro800 2085-IR8-SC is an isolated. 8-channel RTD/Resistance module designed to expand the local I/O capability of Rockwell Automation Micro850 and Micro870 Systems over its Expansion I/O buses.
  • Page 10 Connected Component Workbench (CCW) software for the Micro850 and Micro870 family controllers or with the Module Configuration Converter (MCC) utility from Spectrum Controls, Inc. The module is factory calibrated and tested before shipping. After installation, the modules begin operation in a default, usable condition without user parameters first being set up or defined.

  • Page 11: Section 1.2 Input Specifications

    Chapter 1: Module Overview Section 1.2 Input Specifications The 2085-IR8-SC module has the following input specifications: Table 1-1. Input/Performance/Environmental Requirements Input Description Value Operating Temperature -20 ºC to 65 ºC (-4 ºF to 149 ºF) Storage/Non-Operating -40 ºC to 85 ºC (-40 ºF to 185 ºF) Temperature Operating Humidity 5% to 95%, non-condensing...
  • Page 12 Chapter 1: Module Overview Input Description Value 0 to 500 Ohm ±0.4 ±0.5 0 to 1 kΩ ±0.6 ±1 0 to 3 k Ω ±1.4 ±1.8 Repeatability (at 25 ºC) 4 Hz filter 17 Hz filter 60 and 470 Hz filters Platinum 385 ±...
  • Page 13 Chapter 1: Module Overview Input Description Value RES/RTD Current source Excitation Current* Range (Excitation current) 150 Ω, 500 Ω, 100 Ω Ni 618, 120 Ω Ni 672, 100 Ω PT 385, 200 Ω 420 µA PT 385, 100 Ω PT 3916, 200 Ω PT 3916, 10 Ω...
  • Page 14 Chapter 1: Module Overview Table 1-2. EMC Specification Table Environmental Tests Test Level Limits (Enclosure) Class A, 30 MHz – 1 GHz Radiated Emissions Group 1, Class A (AC Mains), 150 kHz – 30 MHz Conducted Emissions 6 kV Indirect (Coupling Plate) ESD immunity 6 kV Contact Discharge (to points of initial contact) (Performance Criteria B)

  • Page 15: Section 1.3 Data Formats

    Chapter 1: Module Overview ULH ANSI/ISA–12.12.01–2007 Nonincendive Electrical Equipment for Use in Class I, Division 2 Hazardous (Classified) Locations (NRAG) UL Hazardous cULH CSA C22.2 No. 213-M1987 - Non-incendive Electrical Equipment for Locations use in Class I Division 2 Hazardous Locations - March 1987 (NRAG7) Temp code T5 or better, Pollution degree 2, gas groups a, b, c, &...

  • Page 16: Section 1.5 System Overview

    Chapter 1: Module Overview Indicator State Description LED blink status: 1. Internal use only. 2. Internal use only. Blinking Green 3: Calibration Data Invalid. 4: Serial Number Invalid. 5: Indicates ADC communication error. Section 1.5 System Overview The 2085-IR8-SC module is expected to operate indefinitely. It does not require periodic maintenance or calibration.

  • Page 17: Chapter 2 Installation And Wiring

    Chapter 2 Installation and Wiring This chapter will cover: • Compliance to European union directives • Power requirements • General considerations • Installing the module • Field wiring connections Section 2.1 Compliance to European Union Directives This product is approved for installation within the European Union and EEA regions.

  • Page 18: Section 2.3 General Considerations

    Chapter 2: Installation and Wiring Power rating is 0.9 Watts maximum: 5 VDC 24 VDC 94 mA 15 mA Section 2.3 General Considerations The 2085-IR8-SC module is suitable for use in an industrial environment when installed in accordance with these instructions. Specifically, this equipment is intended for use in clean, dry environments Pollution degree 2 2.3.1 Hazardous Location Considerations This equipment is suitable for use in Class I, Division 2, Groups A, B, C, D or...

  • Page 19: Remove Power

    Chapter 2: Installation and Wiring 2.3.3 Remove Power Remove power before removing or inserting this module. When you WARNING remove or insert a module with power applied, an electrical arc may occur. An electrical arc can cause personal injury or property damage by: •...

  • Page 20: Minimum Spacing

    Chapter 2: Installation and Wiring 2.4.1 Minimum Spacing Maintain spacing from enclosure walls, wire ways, adjacent equipment, etc. Allow 50.8 mm (2 in.) of space on all sides for adequate ventilation, as shown: 2.4.2 Parts List Your package contains one Micro800 Expansion I/O 2085-IR8-SC Module and one Quick Start Guide.

  • Page 21: Insert Module Next To The Controller

    Chapter 2: Installation and Wiring • This equipment is considered Group 1, Class A industrial NOTE equipment according to IEC/CISPR 11. Without appropriate precautions, there may be difficulties with electromagnetic compatibility in residential and other environments due to conducted and radiated disturbance. •...
  • Page 22 Chapter 2: Installation and Wiring You can install the module on DIN rails of dimension 35 mm × 7.5 mm × 1 mm (EN 50 022-35×7.5), or on a panel. Hazard of intermittent grounding. WARNING This product is grounded through the DIN rail to chassis ground. To assure proper grounding, use zinc-plated, yellow-chromate steel DIN rail.

  • Page 23: Wiring Diagram

    Hazard of damage to the terminal connector. WARNING The Spectrum Controls RTB hold down and terminal screws must be tightened by hand using the guidelines. They must not be tightened using a power tool. Use a screwdriver of 0.8 × 2 mm and tighten to no more than 0.25 N-m (2.2 lb-in) torque.
  • Page 24 Chapter 2: Installation and Wiring 4-wire Res./RTD Input 2-wire Res./RTD Input 3-wire Res./RTD Input SENSE+ SENSE+ SENSE+ SENSE- SENSE- SENSE- Terminal Block Input signal descriptions are as follows: RTB1 Name Desc. RTB2 Name Desc. EXC0 Ch. 0 Excitation Current EXC4 Ch.

  • Page 25: Chapter 3 Configuring The 2085-Ir8-Sc Using Ccw

    Introduction You use CCW software (v 9.00.00 and above) to configure the 2085-IR8-SC Expansion I/O Module. Spectrum Controls, Inc. provides a custom configuration software utility that you may use to provide configuration settings to the profile. You then send the configuration setup to the module.

  • Page 26: Section 3.2 Importing A Profile Into Ccw Software

    Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW USB/Ethernet PC Workstation Micro850/870 with CCW Program Controller and 2085-IR8-SC Connection User RAMPP file 2080 Expansion I/O module Backplane Micro800 Expansion I/O Module Backplane Pt 385/3916, Cu 426, Resistance 150, 500, 1 k, 3 kΩ Ni 618/672, NiFe 518 Micro800 2080...
  • Page 27 Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW 2. When prompted by Windows User Account Control, to confirm that you wish to run the program, click Yes button. If necessary, confirm with the Windows operating system that you wish to run the software.
  • Page 28 Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW The Resources tab appears: The window lists the language chosen for the module, and the module description. You may also use this tab to access the help file provided for the module.

  • Page 29: 2085-Ir8-Sc Tab On Ccw

    Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW Section 3.3 2085-IR8-SC Tab on CCW Before you start, if needed, install the latest version of Rockwell Automation’s Connected Components Workbench (CCW) Standard Edition. Using the Module Profile Tool to import the 2085-IR8 AOP into CCW NOTE software is necessary only if you are using a CCW version earlier than 11.00.00.
  • Page 30 Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW The same variables can also be found on the CCW Global Variables Tab: 9. To view the configuration tab, click the Configuration option: • Maximum Length. Shows maximum number of words available. Each word is 16-bit.

  • Page 31: Section 3.4 Setting Configuration Parameters Using Mcc

    You may create the configuration for each channel using the MCC utility provided by Spectrum Controls, Inc. You download the utility from the Spectrum Controls website at https://www.spectrumcontrols.com. To use the MCC utility: 1.
  • Page 32 Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW 2. Navigate to the CCW Configuration Tab and click in the file path textbox below the Launch button. The Browse button appears. 3. Click the button, navigate to the directory where you installed the CCW program, and select the ModuleConfigConverter tool located in the Spectrum Tool directory: Example.
  • Page 33 Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW The 2085-IR8-SC Configuration Setup dialog appears: 6. View and specify the following options as needed. See Channel Configuration Bit locations listed later in this section for details on the settings for every configuration bit: •...
  • Page 34 3-10 Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW • Connection. Defines connection type. Default is 3-Wire With Compensation: • Filter. Specifies which filter to use. Default is 17 Hz. • Open Circuit Response. Specifies how to respond to an open circuit condition.
  • Page 35 Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW 3-11 7. When finished making selections, click Generate. The Configuration Text dialog appears with your configuration settings for all the channels. You can manually copy the settings and paste it to the textbox of the CCW Configuration tab 8.

  • Page 36: Section 3.5 Software Information

    Module Identity The following values will be stored in the Vendor ID, Product_Type, Product_Code, Series_Rev, and Mod_Features arrays: Parameter Description Vendor ID 58 (Spectrum Controls) [0×03A] Product Type 10 (Analog) [0×0A] Product Code 119 [0×77] 50208 [0×C420] (First release revision Series Rev is 1.1)
  • Page 37 Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW 3-13 3.5.6 Configuration Table The configuration table size for the module is 32 words. Each Configuration Bit is formed in an unsigned 16-bit Data Type. Each value input is assigned to a signed 16-bit Data Type with a range of -32768 to +32767.
  • Page 38 3-14 Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW Configuration Bit Decimal Feature Option Value 15 14 13 12 11 10 9 6 5 4 3 2 1 0 Raw/Proportional Data Percentage Range °C Temperature Scale °F 3-wire with compensation 4-wire Connection Method...

  • Page 39: Input Table

    Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW 3-15 3.5.9 Input Table The input table size for the module is 16 words. Each channel data is assigned to a signed 16-bit data byte and displays value between -32768 to +32767. The actual display value is clamped by each Input Type limit, or by the signed 16-bit data byte, whichever comes first.

  • Page 40: Module And Channel Fault Bit And Value Description

    3-16 Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW High Byte Low Byte Status & Word Reading Bits Index Indication Ch 7 & 6 AI_11 PAH PAL PAH PAL ADC Status Module & Channel AI_12 Unused Fault Software AI_13 Signed INT Revision...

  • Page 41: Channel Data

    Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW 3-17 Channel Status Name Description Process Alarm High PAH<n> When set to 1, indicates the channel input value is greater than or equal to the user-defined Process Alarm High Value in the configuration table. Under Range When set to 1, indicates the channel input reading is less than or equal to the UR<n>...

  • Page 42: Output Bit Allocation

    3-18 Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW 3.5.16 Output Bit Allocation High Byte Low Byte Process Word Alarm Bits Index Latch AO_0 Ch 7:0 3.5.17 Output Bit Description AO_00: Clear High/Low Process Alarm Latches Name Description Clear Low Process Alarm Latch Even CL<n>...
  • Page 43 Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW 3-19 The defined, data display resolution for each input type is listed in the following table. If the Data Format of the Input Type supports the resolution up to after the decimal point, the fractional part of the input reading is shifted up to display in integers: Input Type...
  • Page 44 3-20 Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW Input Type Input Value Condition EU x1 EU x10 Raw Prop Percentage 850.00 °C High Range 8500 32767 10000 0.385 -200.00 °C Low Range -2000 -200 -32768 -200.00 °C Low Limit -2000 -200...

  • Page 45: Channel Bias

    Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW 3-21 Input Type Input Value Condition EU x1 EU x10 Raw Prop Percentage 260.00 °C High Limit 2600 32767 10000 120 Ω 260.00 °C High Range 2600 32767 10000 -80.00 °C Low Range -800 -32768...

  • Page 46: Channel Temperature

    3-22 Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW �� is the gain: (�������� ������ℎ ���������� − �������� ������ ����������) �� = (������������ ������ℎ ���������� − ������������ ������ ����������) The User High/Low Limit value is based on the selected Input Type and the selected Data Format.
  • Page 47 Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW 3-23 Index Connection Method Note 2-wire Invalid 3-Wire Method When using the 3-wire measurement with one-side sense-wire connected, two measurements will be executed. The first measurement acquires the reading across the main resistance load plus the doubled lead-wire resistance value. The acquisition rate of this measurement is based on the channel scan rate.

  • Page 48: Input Adc Filter

    3-24 Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW Single Measurement: �� ����−������ = (�� + 2�� �������������� �������� �������� �� A configuration error is reported if an invalid Connection Method option is entered in the configuration table. When the 3-wire measurement with compensation option is enabled, using a faster ADC filter means the channel input reading becomes noisy.
  • Page 49 Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW 3-25 detected, but it takes 6 to 10 seconds to detect that the excitation wire is reconnected. • 3-wire lead resistance is measured at 60-seconds intervals; 3-wire lead open circuit is also detected once every 60 seconds. •...

  • Page 50: Process Alarm And Latching

    3-26 Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW • For the Disable option, an open circuit condition is not reported. Also, the periodic open circuit detection does not take place. • The Channel Fault bit and the OC bit are cleared once the open circuit condition on the channel has been resolved.

  • Page 51: Under/Over Range Alarms

    Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW 3-27 The Process Alarm High Value is greater than the high limit of the selected Input Type. The firmware sets the Process Alarm Low status bit in the Channel Status byte and the Channel Fault bit when the channel input reading is equal to, or less than, the user-defined Process Alarm Low Value entered in the configuration table.

  • Page 52: Adc Alarm

    ADC and PGA component is damaged. To clear the fault bit, cycle power the module. If the fault fails to clear, please send the module back to Spectrum Controls for further inspection. 3.6.12 Channel Scan Rate...

  • Page 53: Module Specific Hardware Errors

    Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW 3-29 Below is the approximate timing for each input filter selection ADC Filter Selection Total Channel Scan Rate Measurement per Channel 17 Hz 4 Hz 62 Hz 470 Hz 3.6.13 Module Specific Hardware Errors The module notifies the host PLC of critical and non-critical errors.
  • Page 54 3-30 Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW If any of the following faults has happened, look up the Configuration Table to use appropriate values: Fault Code Extended Fault Error Description Code General Channel Configuration Error 0×450 No additional information Configuration error on Invalid Connection Method 0×410 –...

  • Page 55: Section 3.7 Technical Assistance

    Controls, please ensure that the unit is enclosed in approved ESD packaging (such as static-shielding / metalized bag or black conductive container). Spectrum Controls reserves the right to void the warranty on any unit that is improperly packaged for shipment.
  • Page 56 3-32 Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW User's Manual Pub. 0300321-01 Rev. A...

  • Page 57: Appendix A Manually Importing An Aop

    This appendix explains how to manually import an AOP rampp file into CCW software. 1. Download the latest module AOP from Spectrum Controls website, https://www.spectrumcontrols.com, and save the file to a local folder on your computer (normally the Downloads folder).
  • Page 58 Appendix A: Module Specifications 8. The program loads the .rampp file and informs you that you need to restart the CCW program. 9. After the program restarts, create a new project or reload your project. Select an Available slot from the Expansion Modules drop-down list: The newly imported module is now available as a selection from the Expansion Modules list.

  • Page 59: Index

    Index 2085-IR8-SC AOP Factory default import 3-5 on startup 3-12 2-Wire Method 3-23 Filter 3-Wire Method 3-23 field 3-10 4-Wire Method 3-23 General ADC Alarm 3-28 description 1-1 Add On Profile (AOP) 3-2 Generate configuration 3-11 manual importation A-1, 1 Hardware ASCII specifications 1-3...
  • Page 60 Index I-2 field 3-10 safety test 1-6 Process Alarm Low Stimulus/Response Sequences 3-24 field 3-10 System Product Features 3-18 overview 1-8 Radix Technical support menu 3-7 contact information, vi Remove Power 2-3 Temp Units Safety Test field 3-9 specifications 1-6 Under/Over Range Alarms 3-27 Software updating 3-12 Version of Software 3-12...
