Start Sequence - Vacon NX ACTIVE FRONT END II Applications Manual

Arfiff05 Standard AFE-II
3.4

Start Sequence

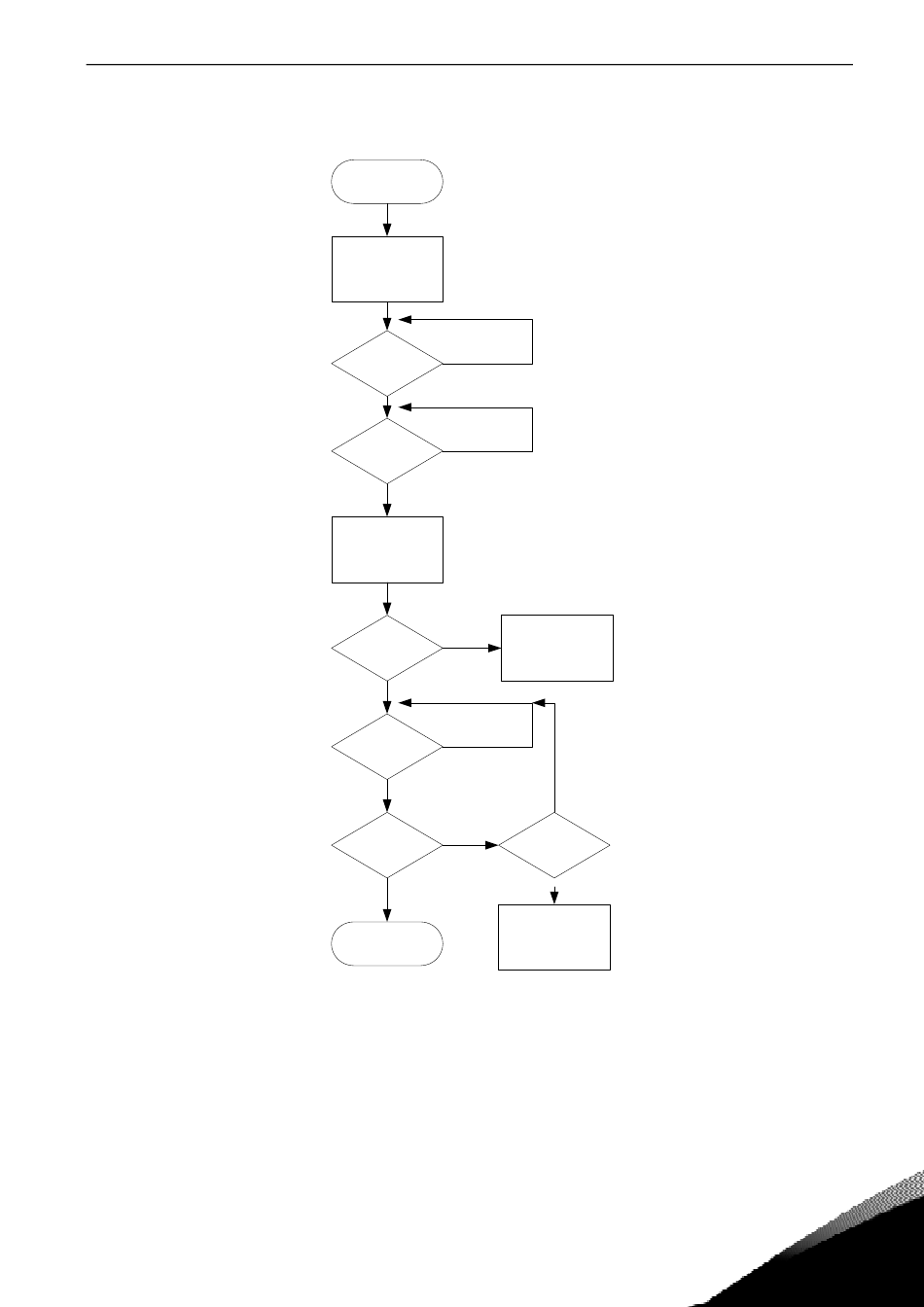

Figure 0-2. AFE start sequence
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
Init
Ready to
switch on
No
DC > 85 %
Yes
No
MCB close
enable
Yes
Close MCB
No
MCB Closed
Yes
No
Start
Command
Yes
No
Synchronized
Yes
F10: LineSynch
Modulating
F64 A2
(Delayed)
No
Trials >= 5
Yes
vacon • 13
