Vacon NX User Manual

Liquid-cooled drives
Hide thumbs Also See for NX:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
vacon nx
®
ac drives
liquid-cooled drives
user manual

Advertisement

Table of Contents
loading

Related Manuals for Vacon NX

Summary of Contents for Vacon NX

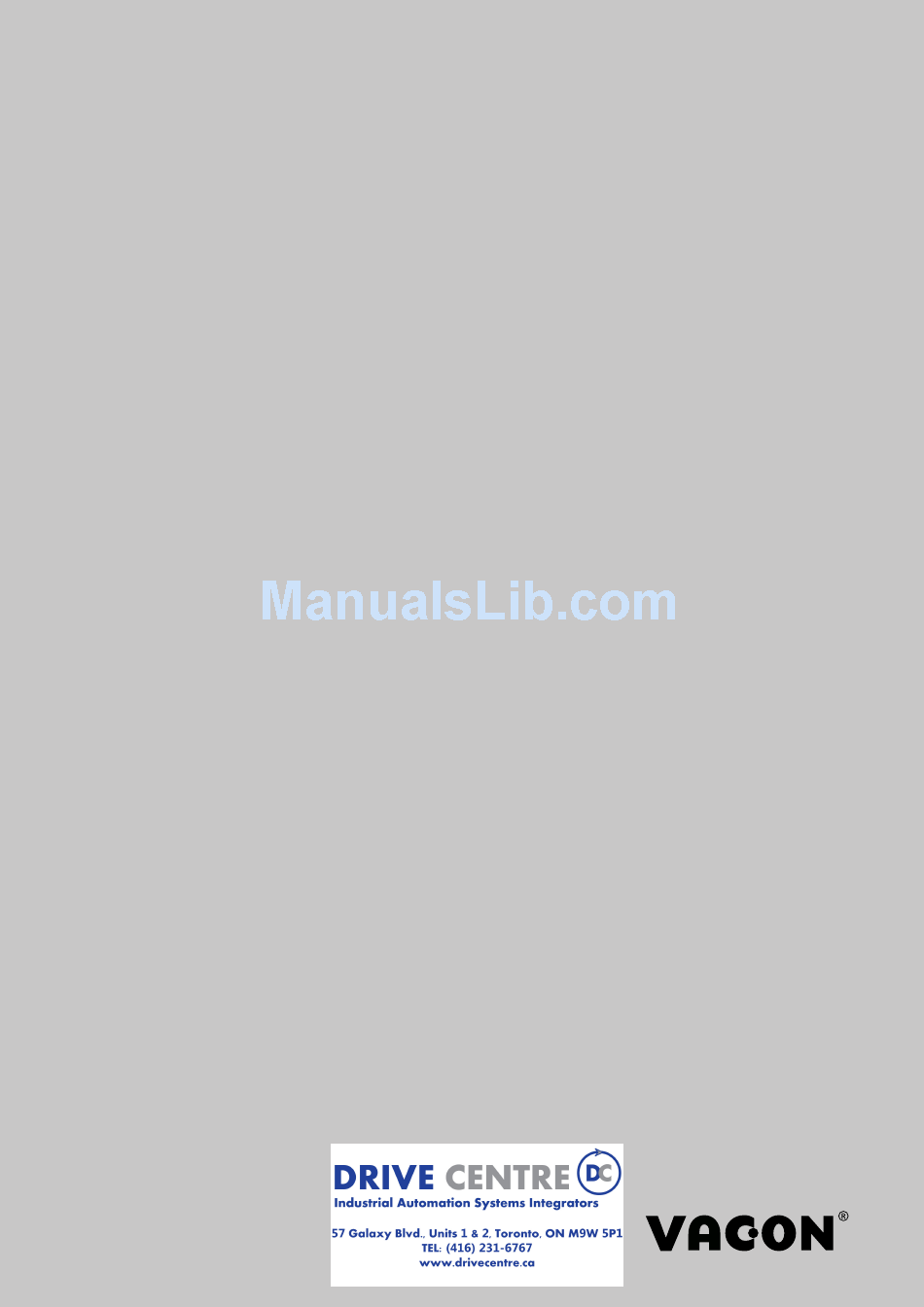

  • Page 1 ® ac drives liquid-cooled drives user manual...

  • Page 3: Table Of Contents

    EU directive....................11 CE marking........................11 EMC directive ........................11 2.2.1 General ..........................11 2.2.2 Technical criteria ......................11 2.2.3 VACON® AC drive EMC classification ................11 2.2.4 Explanations of voltage classes..................12 2.2.5 Manufacturer's declaration of conformity...............13 Receipt of delivery ..................14 Type designation code......................14 Storage and shipping .......................15 Maintenance........................15...
  • Page 4 • 2 6.2.3 Control terminal signals ....................98 6.2.4 Control unit mounting box .....................103 Internal connections ......................106 6.3.1 Connections between Power Unit ASIC and Driver Boards ..........106 6.3.2 Connections between power unit ASIC and the control unit.........109 6.3.3 Connections between mains device and inverter power module .........113 Control keypad.....................
  • Page 5 12.5.1 VACON® NXB; DC voltage 460–800 V................204 12.5.2 VACON® NXB; DC voltage 640–1100 V................205 12.6 VACON® brake resistors and brake chopper dimensioning ........206 12.6.1 Braking energy and losses ....................206 12.6.2 Braking power and resistance, mains voltage 380–500 Vac/600–800 Vdc ....208 12.6.3 Braking power and resistance, mains voltage 525–690 Vac/840–1100 Vdc ....210...
  • Page 6 NX All in One Application Manual. 9. Follow the commissioning instructions, see Chapter 8. ® 10. The VACON NX Liquid-Cooled AC drive is now ready for use. Vacon Ltd is not responsible for the use of its products against instructions. Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...
  • Page 7 ® and operation of VACON NX Liquid-Cooled drives. We recommend that you carefully study these instructions before powering up the AC drive for the first time. This manual is available in both paper and electronic editions. We recommend you to use the electronic version if possible.

  • Page 8: Safety

    • 6 Safety AFETY ONLY A COMPETENT ELECTRICIAN MAY CARRY OUT THE ELECTRICAL INSTALLATION! 9000.emf Safety symbols used in the manual This manual contains warnings and cautions, which are identified with safety symbols. The warnings and cautions give important information on how to prevent injury and damage to the equipment or your system.

  • Page 9: Danger

    Safety vacon • 7 Danger Do not touch the components of the power unit when the drive is connected to mains. The components are live when the drive is connected to mains. A contact with this voltage is very dangerous.

  • Page 10: Grounding And Earth Fault Protection

    • 8 Safety Do not make measurements when the AC drive is connected to mains. It can cause damage to the drive. Make sure that there is reinforced protective ground connection. It is mandatory, because the touch current of the AC drives is more than 3.5 mA AC (refer to EN 61800-5-1).
  • Page 11 Safety vacon • 9 a) The protective grounding conductor must have a cross-sectional area of minimum 10 mm Cu or 16 mm Al. OR b) There must be an automatic disconnection of the mains, if the protective grounding conductor breaks. See Chapter 6. OR c) There must be a terminal for a second protective grounding conductor in the same cross- sectional area as the first protective grounding conductor.

  • Page 12: Running The Motor

    ® Before you use the VACON NX Liquid-Cooled AC drive to control the motor, make sure that liquid-cooling system functions properly. NOTE! You can download the English and French product manuals with applicable safety, warning and caution information from http://drives.danfoss.com/knowledge-center/technical-documentation/.

  • Page 13: Eu Directive

    (European Economic Area). ® VACON NX AC drives carry the CE label as a proof of compliance with the Low Voltage Directive and the Electro Magnetic Compatibility Directive (EMC). The company SGS FIMKO has acted as the Competent Body. EMC directive 2.2.1...

  • Page 14: Explanations Of Voltage Classes

    • 12 EU directive 2.2.4 Explanations of voltage classes NX_5 = 380 - 500 VAC drives -> DC link voltage = 465 - 800 VDC NX_6 = 525 - 690 VAC drives -> DC link voltage = 640 - 1100 VDC NX_8 = 525 - 690 VAC drives ->...

  • Page 15: Manufacturer's Declaration Of Conformity

    Product(s) VACON® NX Liquid-Cooled AC drive Type(s) VACON® NXP 0016 5… to 4140 5 VACON® NXP 0170 6… to 3100 6 VACON® NXP 0170 8… to 3100 8 VACON® NXA 0016 5… to 4140 5 VACON®...

  • Page 16: Receipt Of Delivery

    ® VACON NX Liquid-Cooled AC drives have undergone scrupulous tests and quality checks at the factory before they are delivered to the customer. However, after unpacking the product, check that no signs of transport damages are to be found on the product and that the delivery is complete (compare the type designation of the product to the code).

  • Page 17: Storage And Shipping

    If the storage time exceeds 12 months the electrolytic DC capacitors need to be charged with ® caution. Therefore, such a long storage time is not recommended. See Chapter 9.3 and the VACON NX Liquid-Cooled Drives Service Manual for instructions on charging. See also Chapter 3.3.
  • Page 18 • 16 Receipt of delivery ® Table 2. VACON NX Liquid-Cooled AC drive maintenance program, general Inspection Inspection Service schedule Proactive maintenance actions target intervals Main DC cooling fans and and Replace parts according to service internal cooling 1 year...
  • Page 19 Receipt of delivery vacon • 17 ® Table 3. VACON Liquid-Cooled AC drive maintenance program, liquid cooling system Inspection Inspection Service schedule Proactive maintenance actions target intervals Open the cubicle doors and check that there are no visible leaks on...

  • Page 20: Warranty

    The local distributor may grant a warranty time different from the above. This warranty time shall be specified in the distributor's sales and warranty terms. Vacon Ltd assumes no responsibility for any other warranties than that granted by Vacon itself.

  • Page 21: Technical Data

    NX_W Liquid-Cooled product range consists of active front ends, inverters, brake ® choppers and AC drives. Figure 1 & Figure 2 presents the block diagram of the VACON NX Liquid- Cooled inverter and AC drive. Mechanically, the product consists of two units, the Power Unit and the Control Unit.
  • Page 22 CH3. For CH72 (only 6-pulse) and CH74, it is available as internal option while in all other sizes it is optional but installed externally. ® Figure 1. VACON NX Liquid-Cooled AC drive principal block diagram Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...
  • Page 23 *Brake resistor is available for all sizes (CH3 to CH7). An internal brake chopper belongs to standard equipment in sizes CH3 only, while in all other sizes it is optional but installed externally. ® Figure 2. VACON NX Liquid-Cooled inverter principal block diagram Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...

  • Page 24: Power Ratings

    4.2.1 AC drives ® 4.2.1.1 VACON NX Liquid-Cooled AC drive – Mains voltage 400—500 VAC ® Table 5. Power ratings of VACON NX Liquid-Cooled AC drive (6-pulse), supply voltage 400-500 VAC Mains voltage 400-500 VAC, 50/60 Hz, 3~, 6-pulse drives...
  • Page 25 ® The enclosure class for all VACON NX Liquid-Cooled AC drives is IP00. If the motor is continuously (besides start and stop ramps) run at frequencies below 5 Hz, pay attention to the drive dimensioning for low frequencies, i.e. maximum I = 0.66*I...
  • Page 26 • 24 Technical data Table 7. Internal brake chopper unit (BCU) ratings, braking voltage 640—800 VDC Internal brake chopper ratings, braking voltage 640-800 Vdc Loadability Braking capacity at 600 Vdc Braking capacity at 800 Vdc BCU rated cont. BCU rated Rated cont.
  • Page 27 Technical data vacon • 25 ® 4.2.1.2 VACON NX Liquid-Cooled AC drive – Mains voltage 525—690 VAC ® Table 8. Power ratings of VACON NX Liquid-Cooled AC drive (6-pulse), supply voltage 525—690 VAC Mains voltage 525-690 VAC, 50/60 Hz, 3~, 6-pulse drives...
  • Page 28 ® The enclosure class for all VACON NX Liquid-Cooled AC drives is IP00. If the motor is continuously (besides start and stop ramps) run at frequencies below 5 Hz, pay attention to the drive dimensioning for low frequencies, i.e. maximum I = 0.66*I...
  • Page 29 Technical data vacon • 27 Table 10. Internal brake chopper unit (BCU) ratings, braking voltage 840—1100 VDC Internal brake chopper ratings, braking voltage 840-1100 Vdc Ch72 NX_460 6 Ch72 NX_502 6 NX_820 6 Ch74 NX_920 6 Ch74 NX_1030 6 Ch74...

  • Page 30: Inverter Units

    Technical data 4.2.2 Inverter units ® 4.2.2.1 VACON NX Liquid-Cooled Inverter Unit – Mains voltage 465—800 VDC ® Table 11. Power ratings of VACON NX Liquid-Cooled inverter unit, supply voltage 540—675 VDC Mains voltage 465-800 VDC Drive output Power loss...
  • Page 31 The enclosure class of all inverter units is IP00. ® 4.2.2.2 VACON NX Liquid-Cooled Inverter Unit – Mains voltage 640—1100 VDC ® Table 12. Power ratings of VACON NX Liquid-Cooled inverter unit, supply voltage 710—930 VDC Mains voltage 640-1100 VDC...
  • Page 32 • 30 Technical data ® Table 12. Power ratings of VACON NX Liquid-Cooled inverter unit, supply voltage 710—930 VDC Mains voltage 640-1100 VDC 2120_6 2120 1927 1413 1450 1900 37.8/2.0/39.8 2*CH64 2340_6 2340 2127 1560 1600 2100 43.2/2.3/45.5 2*CH64...

  • Page 33: Technical Data

    Technical data vacon • 31 Technical data *) NX_8 AC drives only available as Ch6x AFE/BCU/INU units.* Note: System software version Table 13. Technical data NX_5: 400…500 VAC (–10%…+10%); 465…800 VDC (–0%…+0%) NX_6: 525…690 VAC (–10%…+10%); 640…1100 VDC Input voltage U (–0%…+0%)
  • Page 34 • 32 Technical data Table 13. Technical data Frequency control U/f Control method Open Loop Sensorless Vector Control Closed Loop Vector Control NX_5: Up to and including NX_0061: 1…16 kHz; Factory default 10 kHz From NX_0072: 1…12 kHz; Factory default 3.6 kHz NX_6/ 1…6 kHz;...
  • Page 35 ISO 13849-1 (2004), EN ISO 13849-2 (2003), Safe Torque Off (STO) EN 60079-14 (1997), EN 954-1 (1996), cat. 3 board (hardware disable); IEC 61508-3(2001), prEN 50495 (2006). ® See VACON NX OPTAF STO Board User Manual for detailed information. Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...
  • Page 36 • 34 Technical data Table 13. Technical data 0…+10 V, R = 200 kΩ, (–10 V…+10 V joystick control) Analogue input voltage Resolution 0.1%, accuracy ±1% Analogue input current 0(4)…20 mA, Ri = 250 W differential Digital inputs (6) Positive or negative logic;...
  • Page 37 Technical data vacon • 35 Table 13. Technical data Drinking water (see specification on page 49). Allowed cooling agents Water-glycol mixture. See derating specifications, Chapter 5.3. Volume See page 51. 0…35 °C input (I ); 35…55 ºC: derating required, Temperature of cooling see Chapter 5.3.

  • Page 38: Installation

    ® VACON NX Liquid-Cooled Drive modules must be installed into an enclosure. The drives consisting of one module will be mounted on the mounting plate. The drives that include two or three modules are mounted inside a mounting bracket (see table below) which will then be installed in the enclosure.
  • Page 39 ® The VACON NX Liquid-Cooled drives are equipped with plastic handles and these handles can be used to move and lift drives consisting of one power module (CH61, CH62, & CH72) by hand. NOTE! Never lift a drive from the plastic handle or handles with an elevating device, such as jib crane or hoist.

  • Page 40: Vacon® Nx Liquid-Cooled Dimensions

    Fixing rail 2pcs M8 2pcs M8 PEM 11313_uk Figure 5. Securing the drive to the cabinet frame ® 5.1.2 VACON NX Liquid-Cooled dimensions 5.1.2.1 Drives consisting of one module Table 14. One-module drive dimensions (mounting base included) Chassis Width Height Depth...
  • Page 41 Installation vacon • 39 Terminals 11314_uk ® Figure 6. VACON NX Liquid-Cooled drive dimensions, CH3 11315_uk ® Figure 7. VACON NX Liquid-Cooled drive dimensions (AC drive), CH4 Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...
  • Page 42 • 40 Installation 11316_uk ® Figure 8. VACON NX Liquid-Cooled drive dimensions (inverter), CH4 11317_uk ® Figure 9. VACON NX Liquid-Cooled dimensions, CH5 AC drive Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...
  • Page 43 Installation vacon • 41 11318_uk ® Figure 10. VACON NX Liquid-Cooled dimensions, CH5 inverter 11319_uk ® Figure 11. VACON Liquid-Cooled AC drive, CH61 Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...
  • Page 44 • 42 Installation 11320_uk ® Figure 12. VACON Liquid-Cooled inverter, CH61 Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...
  • Page 45 Installation vacon • 43 11321_uk ® Figure 13. VACON Liquid-Cooled inverter, CH62 Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...
  • Page 46 • 44 Installation 11322_uk ® Figure 14. VACON Liquid-Cooled AC drive (6-pulse), CH72 11323_uk ® Figure 15. VACON Liquid-Cooled AC drive (6-pulse) with internal brake chopper Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...
  • Page 47 • 45 11324_uk ® Figure 16. VACON Liquid-Cooled AC drive (12-pulse), CH72 5.1.2.2 Drives consisting of several modules ® VACON NX Liquid-Cooled drives consisting of several modules are mounted in a mounting bracket as presented in Figure 17. Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...
  • Page 48 • 46 Installation Table 15. Several-module drive dimensions (mounting bracket incl.) Chassis Width Height Depth Weight CH63 CH64 CH74 1175 11325_00 Figure 17. Drive mounted inside mounting bracket Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...
  • Page 49 Installation vacon • 47 11326_uk ® Figure 18. VACON Liquid-Cooled AC drive with mounting bracket, CH63 Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...
  • Page 50 • 48 Installation 11327_uk ® Figure 19. VACON Liquid-Cooled inverter with mounting bracket, CH63 Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...
  • Page 51 Installation vacon • 49 11328_uk ® Figure 20. VACON NX Liquid-Cooled inverter dimensions, CH64, IP00 Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...
  • Page 52 • 50 Installation 11329_uk ® Figure 21. VACON NX Liquid-Cooled AC drive (6-pulse) dimensions, CH74, IP00 Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...
  • Page 53 Installation vacon • 51 11330_uk ® Figure 22. VACON NX Liquid-Cooled AC drive (6-pulse) with internal brake chopper dimensions, CH74, IP00 Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...
  • Page 54 • 52 Installation 11331_uk ® Figure 23. VACON NX Liquid-Cooled AC drive (12-pulse) with internal brake chopper dimensions, CH74, IP00 Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...

  • Page 55: Cooling

    Preventing of oxygen diffusion in the coolant diminishes the risk of electrochemical corrosion of the ® metal parts, and generation of rust deposits. Always use a closed system with VACON NX Liquid- Cooled drives.
  • Page 56 • 54 Installation Table 16. Drinking water chemical specification Quality Unit Value Benzopyrene μg/l 0.010 Boron mg/l Bromate μg/l Cadmium μg/l Chromium μg/l Copper mg/l Cyanides μg/l 1,2-Dichloroethane μg/l Epichlorohydrin μg/l 0.10 Fluoride mg/l Lead μg/l Mercury μg/l Nickel μg/l...
  • Page 57 Installation vacon • 55 Table 17. Drinking water quality recommendations Quality Unit Max. value Aluminium μg/l mg/l 0.50 Ammonium (NH Ammonium (NH mg/l 0.40 mg/l <100 Chloride Manganese μg/l Iron μg/l <0.5 1] 2] mg/l Sulphate Sodium mg/l Oxidizability mg/l...
  • Page 58 • 56 Installation Specification: Process water Table 18. Process water specification Quality Unit Value 6…9 Water hardness °dH <20 Electrical conductivity μS/cm <100 mg/l <100 Chlorides (Cl) Iron (Fe) mg/l <0.5 *. The allowed concentration of chloride ions (Cl–): <1000 ppm at 20 °C, < 300 ppm at 50 °C and <...
  • Page 59 Installation vacon • 57 30.0ºC 18.0ºC ≈ ≈ ≈ ≈ 34.5ºC 26.1ºC 11332_uk Figure 24. Example of cooling system We recommend to equip the cooling system with pressure and flow supervision (FE). The flow supervision can be connected to digital input function External fault. If the coolant flow is found too low, the AC drive will be stopped.
  • Page 60 • 58 Installation In tables below you will find the specifications related to the cooling agent and its circulation. See also Table 9 on page 25. Table 19. Information about cooling agent and its circulation Min. liquid flow Max. liquid flow Nom.
  • Page 61 Installation vacon • 59 Table 20. Cooling agent flow rates (l/min) in relation to power loss at certain glycol/water mixture Power loss [kW] Glycol/Water ratio 100/0 80/20 60/40 40/60 20/80 0/100 26.46 23.63 21.46 19.74 18.36 17.22 30.86 27.57 25.03 23.03...

  • Page 62: Condensation

    5.2.1 Condensation ® Condensation on the cooling plate of the VACON NX Liquid-Cooled drive must be avoided. Therefore, the temperature of the cooling liquid must be kept higher than the temperature of the electrical room. Use the graph below to determine if the drive operating conditions (combination of room temperature, humidity and cooling liquid temperature) are safe, or, to choose the allowed temperature for the cooling liquid.

  • Page 63: Cooling System Connections

    Installation vacon • 61 5.2.2 Cooling system connections The external cooling system must be connected to each one of the cooling elements of the inverter or AC drive. NOTE! Do not connect the cooling elements in series. The delivery comprises hoses (Technobel Noir Tricoflex, Art.no 135855) 1.5 m in length and 16 mm in diameter (CH5, CH6, CH7).
  • Page 64 • 62 Installation For all other chasses (CH3, CH4), the standard delivery includes fast connectors of type 'Tema', series 1300 or 1900. The fast connectors are available as option also for CH5, CH6, CH7. Table 21. Liquid connector types (all pressure values at nominal flow)
  • Page 65 Installation vacon • 63 5.2.2.1 Pressure losses Table 22. Pressure losses; CH6x CH6x with standard 1.5m hoses and optional fast connectors TEMA Pressure Pressure loss total loss total Pressure Pressure Pressure Pressure (inflow (Tema, Volume loss; Pressure loss; loss; loss; Tema,...
  • Page 66 • 64 Installation Table 23. Pressure losses; CH7x CH7x (16) with standard 1.5m hoses and optional fast connectors TEMA Pressure Pressure loss total Pressure loss total Volume Pressure Pressure Pressure Pressure (Tema, loss; (inflow flow loss; loss; loss; loss; Tema,...
  • Page 67 Installation vacon • 65 The hoses must tolerate a peak pressure of 30 bar. Connect the line hose to its counterpart (screw connector or fast connector) on the cooling element of the AC drive/inverter. The coolant inlet connector is the one closer to the mounting plate and the outlet connector the one closer to the face of the drive, see Figure 32.
  • Page 68 • 66 Installation Coolant outlet Coolant inlet 11340_uk Figure 32. Direction of coolant circulation Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...

  • Page 69: Drive Derating

    • 67 Drive derating ® The tables below state the maximum coolant temperatures for VACON Liquid-Cooled drives at given switching frequencies. Drive derating is required if the maximum temperatures are exceeded. NOTE! If the heatsink is nickel-coated you must allow for a 2-degree C derating of values in the tables below.
  • Page 70 • 68 Installation Table 27. Max temperatures of coolant at switching frequency of 3.6 kHz Supply voltage 525-690 VAC, switching frequency 3.6 kHz Max coolant temperature [°C] Max coolant temperature [°C] Chassis Type Supply voltage 525 V Supply voltage 690 V...

  • Page 71: Input Chokes

    (CH74) AC-chokes are required to balance the line current between the rectifiers. ® The input chokes are included in the standard delivery of VACON Liquid-Cooled AC drives (not inverters). However, you can also order your AC drive without the choke.

  • Page 72: Installation Of Input Chokes

    5.4.1 Installation of input chokes ® There are two types of input choke connection in VACON NX Liquid-Cooled drives. The two smallest sizes (CH31, CH32; up to 61 A) have terminal block connection whereas bigger sizes use busbar connection. Examples of both connections and the choke dimensions below.
  • Page 73 • 71 Mains Converter 220a.fh8 11342_uk ® Figure 34. Example of input chokes for VACON NX Liquid-Cooled. Sizes 87 A…145 A and 590 A Table 32. Choke dimensions; Sizes 23 A…145 A and 590 A Weight Choke type [mm] [mm] [mm]...
  • Page 74 CHK1150N6A0 (8 pcs) (36 pcs) ® If you have ordered the input chokes for VACON NX Liquid-Cooled separately pay attention to the following instructions: 1. Protect the chokes from dripping water. You may even need to use plexiglass for protection because jets of water may occur when working with the connections.
  • Page 75 Installation vacon • 73 Example: If you connect the mains cable of one phase to terminal X, the other two phases must be connected to Y and Z. Accordingly, the choke output cables are connected to their corresponding input pairs: phase 1  U, phase 2  V and phase 3  W.

  • Page 76: Electrical Cabling And Connections

    NX Liquid-Cooled units are implemented depends on the ® size of the unit. The smallest VACON NX Liquid-Cooled unit (CH3) has terminal blocks for the connections. In all other units, the connection is established using cables and cable clips or bolting the busbars together.
  • Page 77 Electrical cabling and connections vacon • 75 Table 35. Cable types required to meet standards Cable type Level N/T Mains cable Motor cable Control cable Power cable intended for fixed installation and the specific mains voltage. Symmetrical shielded cable recommended.
  • Page 78 • 76 Electrical cabling and connections Table 36. Motor cable sizes, 400—500 V Terminal cable size Max. number of Motor cable Main Chassis Type cables/ Earth terminal Cu [mm terminal Bolt size ], max. 0590_5 CH62/72 3*(3*150+70) 25—185 4/M12...
  • Page 79 Electrical cabling and connections vacon • 77 Table 37. Motor cable sizes, 525—690 V Terminal cable size Max. number of Motor cable Chassis Type cables/ Main terminal Earth terminal Cu [mm Bolt size ], max CH62/72 0325_6 2*(3*95+50) 25—185 4/M12...
  • Page 80 • 78 Electrical cabling and connections 6.1.1.4 Mains cable data for AC drives Table 38. Mains cable sizes for AC drives, 400—500 V Terminal cable size Max. number Chassis Type of cables/ Main terminal Earth terminal Mains cable Bolt size...
  • Page 81 Electrical cabling and connections vacon • 79 Table 38. Mains cable sizes for AC drives, 400—500 V Terminal cable size Max. number Chassis Type of cables/ Main terminal Earth terminal Mains cable Bolt size ], max Cu [mm CH74 2060_5...
  • Page 82 • 80 Electrical cabling and connections Table 39. Mains cable sizes, 525—690 V Terminal cable size Max. number Mains cable Chassis Type of cables/ Main terminal Earth terminal Cu [mm Bolt size ], max. CH74 1030_6 1030 4*(3*185+95) 300 Cu/Al...

  • Page 83: Drive Protection - Fuses

    Electrical cabling and connections vacon • 81 6.1.1.5 Cable selection and unit installation in accordance with the UL standards To meet the UL (Underwriters Laboratories) regulations, use a UL-approved copper cable with a minimum heat-resistance of +90 °C to meet the requirements.
  • Page 84 • 82 Electrical cabling and connections 6.1.3.1 AC drives ® Table 41. Fuse sizes for VACON NX Liquid-Cooled (500 V) AC drives DIN43620 DIN43653 Qty. of Fuse Fuse Chass Fuse fuses per Type aR fuse aR fuse aR fuse catalog...
  • Page 85 Electrical cabling and connections vacon • 83 ® Table 42. Fuse sizes for VACON NX Liquid-Cooled (690 V) AC drives DIN43620 DIN43653 Qty. of Fuse Fuse fuses Fuse Chassis Type aR fuse aR fuse size aR fuse part nr. drive part nr.
  • Page 86 • 84 Electrical cabling and connections Fuse information The values in tables are based on max ambient temperature of +50 ºC. Fuse sizes can differ in the same chassis. Make sure that the Isc of the supply transformer is high enough to burn fuses fast enough.
  • Page 87 6.1.3.2 Fuse sizes, inverters Each DC supply line must be equipped with an aR fuse according to the tables below. ® Table 43. Fuse sizes for VACON NX Liquid-Cooled (450—800 V) inverters "TTQF" threaded "TTF" threaded end end size84 or "7X"...
  • Page 88 • 86 Electrical cabling and connections ® Table 43. Fuse sizes for VACON NX Liquid-Cooled (450—800 V) inverters "TTQF" threaded "TTF" threaded end end size84 or "7X" DIN43620 "PLAF" 2x84 or size 83 with end with end contacts Chas...

  • Page 89: Cable Installation Instructions

    ® VACON NX Liquid-Cooled drive must always be installed in an enclosure, a separate cubicle or an electrical room. Always use a jib crane or similar lifting device to lift the drive. For safe and appropriate lifting, see Chapter 5.1.1.
  • Page 90 1.5 m in length and 15 mm in diameter. The hoses are inserted in 1400-mm UL94V0 approved conduits. Connect the line hose branch to ® its counterpart (screw or fast connector) on the of the VACON Liquid-Cooled drive.
  • Page 91 Electrical cabling and connections vacon • 89 Cable clamp for EMC grounding Armouring Cable clamp 11344_uk Figure 36. Clamping the motor cables to cabinet frame 2,3 kN 2,3 kN 2,3 kN 1 kN 2,3 kN 2,3 kN nxw11.fh8 1 kN...

  • Page 92: Supply Busbars For Inverter Units

    • 90 Electrical cabling and connections 6.1.5 Supply busbars for inverter units In order to avoid excessive terminal stresses on busbar terminals on inverter units with DC-supply on top (CH61…CH64), use flexible busbar connection. See figure below. The maximum terminal stresses are shown in Figure 37.

  • Page 93: Installation Space

    Electrical cabling and connections vacon • 91 6.1.6 Installation space Enough free space must be left above and below the AC drive/inverter to ensure practical and appropriate electrical and cooling connections. The minimum dimensions are given in the table below. The space left and right to the drive may be 0 mm.

  • Page 94: Installation Of Ferrite Rings (Option) On The Motor Cable

    • 92 Electrical cabling and connections 6.1.8 Installation of ferrite rings (option) on the motor cable Slip only the phase conductors through the window; leave the cable screen below and outside the rings, see Figure 40. Separate the PE conductor.

  • Page 95: Cable And Motor Insulation Checks

    Electrical cabling and connections vacon • 93 6.1.10 Cable and motor insulation checks Motor cable insulation checks Disconnect the motor cable from terminals U, V and W of the AC drive and from the motor. Measure the insulation resistance of the motor cable between each phase conductor as well as between each phase conductor and the protective ground conductor.

  • Page 96: Control Unit

    ® The control unit of VACON NX Liquid-Cooled AC drive/inverter is installed into a mounting box. It contains the control board and additional boards (see Figure 41 and Figure 42) connected to the five slot connectors (A to E) of the control board. The control unit and the ASIC of the power unit are connected through cables (and an adapter board).
  • Page 97 Electrical cabling and connections vacon • 95 Usually, when the AC drive is delivered from the factory, the control unit includes at least the standard compilation of two basic boards (I/O board and relay board) which are normally installed in slots A and B. On the next pages you will find the arrangement of the control I/O and the relay terminals of the two basic boards, the general wiring diagram and the control signal descriptions.

  • Page 98: Control Board Power-Up

    X10 on the power board. This applies to all chassis ≥ CH61. 6.2.2 Control connections The basic control connections for boards A1 and A2 are shown in Chapter 6.2.3. ® The signal descriptions are presented in VACON NX All in One Application Manual. +10Vref Reference AI1+...
  • Page 99 Electrical cabling and connections vacon • 97 RO1/1 RO1/3 ac/dc Switching: RO2/1 <8A/24Vdc, <0.4A/125Vdc, RO2/3 <2kVA/250Vac Continuously: <2Arms Basic relay board OPT-A2 NX6_6.fh8 11355_uk Figure 45. General wiring diagram of the basic relay board (OPT-A2) 6.2.2.1 Control cables The control cables must be at least 0.5 mm screened multicore cables, see Table 35.

  • Page 100: Control Terminal Signals

    • 98 Electrical cabling and connections Gate drivers 10Vref L1 L2 L3 +24V Control I/O ground AI2+ AI2 - Control DIN1... panel Digital input DIN3 group A DIN4... Digital input DIN6 group B Control Power Analogue AO1+ board board...
  • Page 101 Electrical cabling and connections vacon • 99 Table 46. Control I/O terminal signals Terminal Signal Technical information Analogue input Differential input if not connected to ground; GND/AI2– Allows ±20 V differential mode voltage to GND common ±15%, maximum current 250 mA...
  • Page 102 • 100 Electrical cabling and connections 6.2.3.1 Digital input signal inversions The active signal level depends on which potential the common inputs CMA and CMB (terminals 11 and 17) are connected to. The alternatives are either +24 V or ground (0 V). See Figure 47.
  • Page 103 Electrical cabling and connections vacon • 101 11357_00 Figure 48. Jumper blocks on OPT-A1 Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...
  • Page 104 • 102 Electrical cabling and connections Jum per block X 1 : Jum per block X 2 : AI1 m ode AI2 m ode AI1 mode: 0...20mA; Current input AI2 mode: 0...20mA; Current input AI1 mode: Voltage input; 0...10V AI2 mode: Voltage input;...

  • Page 105: Control Unit Mounting Box

    Installing the control unit mounting box ® The control unit of VACON NX Liquid-Cooled drive is mounted into a metal box which then can be ® placed inside the enclosure. VACON alpha-numeric or graphical keypad can be used to control the...
  • Page 106 1. If the keypad sits in its place on the control unit, remove the keypad. ® 2. Connect the male end of the keypad cable to the D-connector of the control unit. Use VACON RS232 cable included in the delivery. Figure 1.
  • Page 107 Electrical cabling and connections vacon • 105 11364_00 11363_00 11365_00 Figure. 4 Figure. 5 Figure. 6 11366_00 11367_00 VANXPLC_1061_INS_uk 11368_00 Figure. 9 Figure. 7 Figure. 8 Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...

  • Page 108: Internal Connections

    • 106 Electrical cabling and connections Internal connections As a general rule, all internal electrical and communications connections are made at the factory. However, if modules have to be moved, for example, and the connections therefore removed, you will have to re-establish the connections between 1) the Power Unit ASIC and the Driver Board(s) on the one hand and 2) the Power Unit ASIC and the Optical Cable Adapter Board on the other.
  • Page 109 Electrical cabling and connections vacon • 107 NOTE! Terminals X9 and X15 are connected by default. The cable can be removed if the signal is receved from other source. DC- DC+ X9 X15 H1H2H3H4H5H6H7 ASIC board X3 X4 X5 Driver board,...
  • Page 110 • 108 Electrical cabling and connections Gate driver signals from ASIC to driver Terminals on ASIC board board Connect to terminal X6 on phase V/W driver board X1 Internal fan power connection for Mod. 2 NOTE! Terminals X9 and X15 are connected by default. The cable can be removed if the signal is receved from other source.

  • Page 111: Connections Between Power Unit Asic And The Control Unit

    ® The communication connections between the VACON NX Liquid-Cooled drive power unit and the control unit (see Chapter 6.2) can be established using either the conventional round cable (standard in chassis CH3, CH4 and CH5) or optical cable (all chassis). Note that for chassis CH61 and greater, only optical cables can be used.
  • Page 112 • 110 Electrical cabling and connections 6.3.2.2 Connections with optical cable (Chassis CH3, CH4, CH5, CH6x and CH7x) If optical cables are used to link the power unit and the control board, a special Optical Cable Adapter Board connected to the control board D-connector must be used. To connect the optical cables to the power unit, you will have to remove the protective cover first.
  • Page 113 Electrical cabling and connections vacon • 111 Each fibre optic cable has a number 1...7 marked on the cable shield at both cable ends. Connect each cable to the connectors marked with the same number 1...7 on the ASIC board and on the rear side of the control unit.
  • Page 114 • 112 Electrical cabling and connections Fasten the removed cover(s) on the inverter module when the work is finished. 6.3.2.3 Connections with optical cable (Chassis 2xCH64 and 2xCH74) If optical cables are used to link the power unit and the control board, a special Optical Cable Adapter Board connected to the control board D-connector must be used.

  • Page 115: Connections Between Mains Device And Inverter Power Module

    Connections between mains device and inverter power module The dimensions in the table below must be taken into account if some kind of mains device (e.g. ® fuse, switch fuse, contactor) is used in the input line between the mains and the VACON Liquid- Cooled inverter.
  • Page 116 • 114 Electrical cabling and connections Table 47. Connections from mains device to drive Connection Chassis Type Conductor cross section Busbar size Busbar size (flexible connection) (bare Cu) 0016_5 0022_5 0031_5 0038_5 0045_5 0061_5 0072_5 0087_5 0105_5 0140_5 0168_5...
  • Page 117 Electrical cabling and connections vacon • 115 Table 48. Connections from mains device to drive Connection Conductor cross Chassis Type Busbar size (flexible Busbar size section [mm connection) (bare Cu) 0170_6 CH61 0208_6 2*24*1 0261_6 0325_6 2*70 0385_6 1*50*5 CH62...

  • Page 118: Control Keypad

    Control keypad ONTROL KEYPAD ® ® The control keypad is the link between the VACON AC drive and the user. The VACON NX control keypad features an alphanumeric display with seven indicators for the Run status (RUN, READY, STOP, ALARM, FAULT) and three indicators for the control place (I/O term/ Keypad/ BusComm).

  • Page 119: Control Place Indications

    Control keypad vacon • 117 7.1.2 Control place indications The symbols I/O term, Keypad and Bus/Comm (see Figure 60) indicate the choice of control place made in the Keypad Control Menu (see Chapter 7.3.3). I/O terminals are the selected control place; i.e. START/STOP commands I/O term or reference values etc.

  • Page 120: Keypad Push-Buttons

    • 118 Control keypad Keypad push-buttons ® The VACON alphanumeric control keypad features 9 push-buttons that are used for the control of the AC drive (and motor), parameter setting and value monitoring. 3063_00 Figure 61. Keypad push-buttons 7.2.1 Button descriptions = This button is used to reset active faults (see Chapter 7.3.4).

  • Page 121: Navigation On The Control Keypad

    Control keypad vacon • 119 Start button Pressing this button starts the motor if the keypad is the active control place. See Chapter 7.3.3. Stop button. Pressing this button stops the motor (unless disabled by parameter R3.4/R3.6). See Chapter 7.3.3.

  • Page 122: Monitoring Menu (M1)

    • 120 Control keypad READY READY R EADY R EADY R EADY R EADY I/Oterm I/Oterm I/Ote rm I/Ote rm I/Oterm I/Oterm Expander boards Expander boards A:NXOPTA1 A:NXOPTA1 Parameters Parameters G1 G1 G1 G1 P1 P3 P1 P3 G1 G5...
  • Page 123 Motor voltage Calculated motor voltage V1.8 DC-link voltage Measured DC-link voltage V1.9 Unit temperature ºC Heat sink temperature Calculated motor temperature. See VACON ® NX All in One applica- V1.10 Motor temperature tion manual. V1.11 Voltage input V1.12 Current input V1.13...

  • Page 124: Parameter Menu (M2)

    • 122 Control keypad 7.3.2 Parameter menu (M2) Parameters are the way of conveying the commands of the user to the AC drive. The parameter values can be edited by entering the Parameter Menu from the Main Menu when the location indication M2 is visible on the first line of the display.

  • Page 125: Keypad Control Menu (M3)

    Control keypad vacon • 123 Ke ypa d Input signals READY READY READY Keypad Keypad Keypad Parameters Basic parameters Min Frequency P1 P18 G1 G8 13.95 Hz READY READY Keypad Keypad Min Frequency Min Frequency enter 13.95 Hz 14.45 Hz 11377_uk Figure 64.
  • Page 126 • 124 Control keypad Change the control place by entering the edit mode with the Menu button right. The options can then be browsed through with the Browser buttons. Select the desired control place with the Enter button. See the diagram on the next page.

  • Page 127: Active Faults Menu (M4)

    Control keypad vacon • 125 is 0, the STOP button will stop the motor only when the keypad has been selected as the active control place. NOTE! There are some special functions that can be performed when in the M3 menu: Select the keypad as the active control place by keeping the Start button pushed down for 3 seconds when the motor is running.
  • Page 128 7.3.4.1 Fault types ® In the VACON NX AC drive, there are four different types of faults. These types differ from each other on the basis of the subsequent behaviour of the drive. See Table 51. I/Ote rm Operation hours...

  • Page 129: Fault History Menu (M5)

    Control keypad vacon • 127 7.3.4.3 Fault time data record When a fault occurs the information described above in is displayed. By pushing the Menu button right here you will enter the Fault time data record menu indicated by T.1T.13. In this menu, some selected important data valid at the time of the fault are recorded.

  • Page 130: System Menu (M6)

    • 128 Control keypad The order of the faults is indicated by the location indication in the upper left corner of the display. The latest fault carries the indication F5.1, the second latest F5.2 etc. If there are 30 uncleared faults in the memory the next occurring fault will erase the oldest from the memory.
  • Page 131 Control keypad vacon • 129 Functions in the System menu Table 53. System menu functions Code Function Unit Default Cust Selections Available selections S6.1 Language selection English depend on the language package. Basic Application Standard Application Local/Remote control Appl. Basic Multi-Step Application S6.2...
  • Page 132 • 130 Control keypad Table 53. System menu functions Code Function Unit Default Cust Selections S6.8.1 Total counters C6.8.1.1 MWh counter C6.8.1.2 Power On day counter C6.8.1.3 Power On hours counter S6.8.2 Trip counters T6.8.2.1 MWh counter Clear T6.8.2.2...
  • Page 133 Enter button Pushing any other button leaves the parameters of the previously used application saved in the keypad. For more information, see Chapter 7.3.6.3. ® For more information about the Application Package, see VACON NX All-in-One Application Manual.
  • Page 134 Parameter sets (S6.3.1) ® The VACON NX AC drive features a possibility for the user to load back the factory default parameter values and to store and load two customised parameter sets (all parameters included in the application). On Parameter sets page (S6.3.1), push the Menu button right to enter the Edit menu. The text LoadFactDef begins to blink and you can confirm the loading of factory defaults by pushing the Enter button.
  • Page 135 Menu button right. Choose Yes or No with the Browser buttons. ® When the Parameter backup function is activated VACON NX control keypad makes a copy of the parameters of the presently used application. Every time a parameter is changed the keypad backup is automatically updated.
  • Page 136 • 134 Control keypad with symbol P (e.g. P1P5 = five deviating values). By pressing the Menu button right once again you can still enter the pages where you can see both the actual value and the value it was compared to.
  • Page 137 Control keypad vacon • 135 Deactivate the password function by entering the value 0. READY READY READY I/Oterm I/O term I/Oterm enter enter Password Password Password Not in use 11387_uk Figure 73. Password setting NOTE! Store the password in a secure location! No changes can be made unless a valid password is entered! Parameter lock (P6.5.2)
  • Page 138 • 136 Control keypad READY READY READY I/Oterm I/Oterm I/Oterm enter CONFIRM Startup wizard Startup wizard Startup wizard CANCEL 11389_uk Figure 75. Activation of Start-up wizard Multimonitoring items (P6.5.4) ® VACON alpha-numeric keypad features a display where you can monitor even three actual values at the same time (see Chapter 7.3.1 and Chapter Monitoring values in the manual of the application...
  • Page 139 Control keypad vacon • 137 repeat the procedure. Confirm the new default page value with the Enter button. You can return to the previous step anytime by pushing the Menu button left. READY READY READY enter CONFIRM CHANGE I/Oterm I/Oterm...
  • Page 140 • 138 Control keypad HMI acknowledge timeout (P6.7.3) This function allows the user to change the timeout of the HMI acknowledgement time in cases where there is an additional delay in the RS-232 transmission due to use of modems for communication over longer distances, for example.
  • Page 141 Control keypad vacon • 139 Total counters (S6.8.1) In the Total counters page (S6.8.1) you can find information related to the AC drive operation times, i.e. the total numbers of MWh, operation days and operation hours passed so far. Unlike the counters in the Trip counters, these counters cannot be reset.
  • Page 142 • 140 Control keypad Software (S6.8.3) The Software information page includes information on the following AC drive software related topics: Table 56. Software information pages Page Content 6.8.3.1 Software package 6.8.3.2 System software version 6.8.3.3 Firmware interface 6.8.3.4 System load Applications (S6.8.4)

  • Page 143: Expander Board Menu (M7)

    Control keypad vacon • 141 Hardware (S6.8.5) The Hardware information page provides information on the following hardware-related topics: Table 58. Hardware information pages Page Content 6.8.5.1 Power unit type code 6.8.5.2 Nominal voltage of the unit 6.8.5.3 Brake chopper 6.8.5.4 Brake resistor Expander boards (S6.8.6)

  • Page 144: Further Keypad Functions

    C ON FIR M CHANGE enter R EA DY I/Oterm Baud rate Auto 11398_uk Figure 84. Expander board information menu Further keypad functions ® ® The VACON NX control keypad embodies additional application-related functions. See VACON Application Package for more information. Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...

  • Page 145: Commissioning

    Before commissioning, note the following directions and warnings: ® Internal components and circuit boards of the AC drive are live when VACON Liquid-Cooled drive is connected to mains potential. Coming into contact with this voltage is extremely dangerous and may cause death or severe injury.

  • Page 146: Commissioning Of The Ac Drive

    6. Check that all Start/Stop switches connected to the I/O terminals are in Stop-position. 7. Connect the AC drive to mains. ® 8. Set the parameters of group 1 (See VACON All in One Application Manual) according to the requirements of your application. At least the following parameters should be set:...
  • Page 147 Commissioning vacon • 145 b) Push the Start button on the keypad. c) Move over to the Keypad control menu (M3) and Keypad Reference submenu (Chapter 7.3.3.2) and change the frequency reference using the Browser buttons d) Check in the Monitoring menu (M1) that the value of Output frequency changes according to the change of frequency reference.

  • Page 148: Fault Tracing

    • 146 Fault tracing AULT TRACING Fault codes When a fault is detected by the AC drive control electronics, the drive is stopped and the symbol F together with the ordinal number of the fault, the fault code and a short fault description appear on the display.
  • Page 149 Fault tracing vacon • 147 Table 60. Fault codes Fault Fault Possible cause Correcting measures code Cannot be reset from the keypad. Switch off power. DO NOT RE-CONNECT Various causes: POWER! defective component Saturation trip Contact your local brake resistor short-circuit or distributor.
  • Page 150 • 148 Fault tracing Table 60. Fault codes Fault Fault Possible cause Correcting measures code Cause 1): Check that values for Ith 3) Heatsink temperature is over 70 °C. (Chapter 4.2) are not Overtemperature warning is issued when exceeded.
  • Page 151 Fault tracing vacon • 149 Table 60. Fault codes Fault Fault Possible cause Correcting measures code faulty operation component failure Reset the fault and restart. Microprocessor Subcodes: Should the fault re-occur, watchdog fault S1 = CPU watchdog timer contact your distributor.
  • Page 152 • 150 Fault tracing Table 60. Fault codes Fault Fault Possible cause Correcting measures code Option board added. Reset. Device is ready for Subcodes: Device added use. S1 = Control board (same type) Old board settings will be S4 = Control unit used.
  • Page 153 Fault tracing vacon • 151 Table 60. Fault codes Fault Fault Possible cause Correcting measures code Option board of different type added. Subcodes: S1 = Control board Reset Device added S2 = Control unit Set the option board (different type) S3 = Power board parameters again.

  • Page 154: Load Test With Motor

    • 152 Fault tracing Table 60. Fault codes Fault Fault Possible cause Correcting measures code Check encoder connection. Speed error Motor speed is unequal to reference. PMS motor has exceeded the pull out torque. Check reason for Run enable Run disable Run enable signal is low.

  • Page 155: Dc Link Test (Without Motor)

    Fault tracing vacon • 153 DC link test (without motor) NOTE! There will be dangerous voltages present during this test! 1. Read carefully the safety instructions in Chapter 1 and follow them. 2. Connect a variable DC power supply to DC+ and DC– terminals. Make sure that all polarities are correct.

  • Page 156: Active Front End (Nxa)

    CTIVE FRONT END 10.1 Introduction ® The VACON NX Active Front End is used to transfer power between the AC input and intermediate ® DC circuit. The VACON NX Active Front End has a two-way function. This means that when power ®...

  • Page 157: Type Designation Code

    Active front end (NXA) vacon • 155 10.3 Type designation code In Vacon type designation code, the Active Front Unit is characterized by the characters NXA and number 2, for example: NXA 0300 5 A1A2000000 POWER MODULE U/T1 IGBT V/T2...

  • Page 158: Active Front End Unit Technical Data

    • 156 Active front end (NXA) 10.4 Active Front End unit technical data The technical data for the active front end unit, see table below. *) NX_8 AC drives only available as Ch6x AFE/BCU/INU units. Table 61. Technical data NX_5: 400…500 VAC (–10%…+10%);...
  • Page 159 ISO 13849-1 (2004), EN ISO 13849-2 (2003), EN Safe Torque Off (STO) 60079-14 (1997), EN 954-1 (1996), cat. 3 (hardware board disable); IEC 61508-3(2001), prEN 50495 (2006). ® See VACON NX OPTAF STO Board User Manual for detailed information. Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...
  • Page 160 • 158 Active front end (NXA) Table 61. Technical data 0…+10 V, R = 200 kΩ, (–10 V…+10 V joystick control) Analogue input voltage Resolution 0.1%, accuracy ±1% Analogue input 0(4)…20 mA, Ri = 250 W differential current Digital inputs (6) Positive or negative logic;...
  • Page 161 Active front end (NXA) vacon • 159 Table 61. Technical data Drinking water (see specification on page 49) Allowed cooling Water-glycol mixture agents See derating specifications, Chapter 5.3. Volume See Table 19. 0…35 °C input (I ); 35…55 ºC: derating required, Temperature of see Chapter 5.3.

  • Page 162: Power Ratings

    Active front end (NXA) 10.5 Power ratings ® Table 62. Power ratings of VACON NX Liquid-Cooled AFE unit, supply voltage 400-500 VAC ® VACON NX Liquid-Cooled Front End; DC Bus voltage 465–800 VDC AC Current DC power Power loss Active Thermal Rated Rated...
  • Page 163 Active front end (NXA) vacon • 161 ® Table 63. Power ratings of VACON NX Liquid-Cooled AFE unit, supply voltage 525-690 VAC ® VACON NX Liquid-Cooled Front End; DC Bus voltage 640–1100 VDC ***) AC Current DC power Power loss Active Thermal Rated...

  • Page 164: Liquid-Cooled Rlc Filters

    Table 62. The RLC filters are not included in the standard delivery of the AFE units and therefor they need to be ordered reparately. More information about Air Cooled LCL filters can be found from ® UD01190B, VACON NX Active Front End User‘s Manual, FI9-13. 10.6.2 Wiring diagrams The RLC filter contains a 3-phase chokes (L...

  • Page 165: Power Rating And Dimensions

    Active front end (NXA) vacon • 163 10.6.3 Power rating and dimensions ® Table 64. VACON RLC ratings, drive suitable and dimensions ® VACON NX Liquid-Cooled regenerative line filters - IP00 Dimensions Suitability Dimensions Thermal Power loss Ldrive, 1pcs Dimensions Total...
  • Page 166 400-500V In/Out (L_in/L_out) 525-690V In/Out (L_in2/L_out2) out2 3070A_uk ® Figure 89. Example of L choke of a VACON RLC filter 3072_00 ® Figure 90. Example of capacitor bank (C ) of a VACON RLC filter bank Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...

  • Page 167: Technical Data

    Active front end (NXA) vacon • 165 10.6.4 Technical data ® Table 65. VACON RLC technical data Voltage U AC connections Same as the NXA unit. Frequency f 50 or 60 Hz + 2%. Continuous output cur- See current rating of filter.

  • Page 168: Removing Hf Capacitors

    • 166 Active front end (NXA) 3074_uk Figure 91. Wiring diagram of the alternative discharging circuit configuration 10.6.6 Removing HF capacitors If a PWM modulated rectifier from another manufacturer is connected to the same input transformer, the capacitors must be removed! Otherwise the capacitors must not be removed.
  • Page 169 Active front end (NXA) vacon • 167 11400_uk Figure 92. HF capacitors in RLC filters 11401_uk Figure 93. HF capacitors in RLC filters Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...

  • Page 170: Active Front End - Fuse Selection

    DC buses. If DC fuses are not used, short-circuit in the DC buses will cause a loading of the Active Front End unit. Vacon Ltd will not assume any responsibility for damages caused by insufficient protection. The warranty becomes void if the drive is not equipped with appropriate fuses.
  • Page 171 Active front end (NXA) vacon • 169 ® Table 66. Fuse sizes for VACON NX AFE units (380—500V) ‘TTF’ threaded ‘TTF’ threaded Qty. of DIN43620 Fuse Chassis Type fuses / size drive 3~ aR fuse part nr. aR fuse part nr. aR fuse part nr.

  • Page 172: Pre-Charcing Circuit

    • 170 Active front end (NXA) 10.8 Pre-Charcing circuit The Active Front End unit requires an external pre-charging circuit. The purpose of the pre-charging unit is to charge the voltage in the intermediate circuit to a level sufficient for connecting the Active Front End unit to the mains.
  • Page 173 Active front end (NXA) vacon • 171 FI13 AFE / CHARGING-AFE-FFE-FI13 Snubber capacitor Rifa PHE448 Contactor Telemecanique LC1D32P7 The Active Front End unit must not be connected to mains without pre-charging. In order to ensure the correct operation of the pre-charging circuit, the input circuit-breaker or contactor, as well as the pre-charging circuit contactor, must be controlled by the Active Front End unit.

  • Page 174: Parelling

    • 172 Active front end (NXA) NOTE! Enough space must be reserved around the resistors to ensure sufficient cooling. Don’t place any heat sensitive components near the resistors. 3078.emf 11402 uk Figure 95. Wiring diagram for control unit 10.9...

  • Page 175: Common Pre-Charging Circuit

    Active front end (NXA) vacon • 173 10.10 Common pre-charging circuit In case of paralleled Active Front End units, one common pre-charging circuit can be used, see Figure 96. Standard pre-charging circuits can be used if the capacitance of the intermediate circuit not exceeds maximum value.

  • Page 176: Each Active Front End Unit Has The Pre-Charcing Circuit

    • 174 Active front end (NXA) 10.11 Each Active Front End unit has the pre-charcing circuit Each Active Front End can have an own pre-charging circuit, and each unit is controlling it’s own pre- charging and main contactor, see Figure 97. One control switch can be used but if an Active Front End unit needs to be controlled independently, separate switches are needed.

  • Page 177: Non-Regenerative Front End

    ® The VACON NX Non-regenerative Front End (NFE) is used to transfer power from the AC input to the intermediate DC circuit to which the inverter units are connected. The Non-regenerative Front End configurations consist of the unit itself, choke, pre-charging circuit, control unit with accessories, AC fuses, circuit breaker and DC fuses which you need to take into account when planning the switchgear configuration, see Figure 98.
  • Page 178 • 176 Non-regenerative front end CUSTOMER SUPPLY 400-690VAC, 50/60HZ DC PRE-CHARGING DOUBLE INSUL. DOUBLE INSUL. DOUBLE INSUL. -FC4.1 -FC4.2 I1: 1000A I1: 1000A t1: 3s t1: 3s I3: 1,5x I3: 1,5x I>> I>> I>> I>> I>> I>> -QB6.1 -FC1.1 -FC1.4...
  • Page 179 Non-regenerative front end vacon • 177 11682A_uk Figure 100. Wiring diagram for controls, OPTBH, OPTB1 CHARGING CONTACTOR ACB CONTROL ACB UNDER VOLTAGE TRIP DC PRE-CHARGING -XD1 SUPPLY -FC6.2 230V -AA1 /2.2E -AF2 -SFG1 E-STOP E-STOP ACC. RO1 NO RO2 NC...

  • Page 180: Installation Of The Nfe Control Cables

    • 178 Non-regenerative front end 11.3 Installation of the NFE control cables A 24Vdc power supply for fans, fan feedback signals and PT100 temperature sensor must be connected to the X100 connector at the NFE module. Remove the protective cover to reveal the X100-connector on the power unit.

  • Page 181: Type Designation Codes

    Non-regenerative front end vacon • 179 11.4 Type designation codes In Vacon type designation code, the Non-regenerative Front Unit is characterized by the characters NXN. The codes are given below: NXN 2000 6 A1A2BHB100 without chokes NXN 2000 6 A1A2BHB100...

  • Page 182: Power Ratings

    • 180 Non-regenerative front end 11.5 Power ratings ® Table 70. VACON NXN Liquid-Cooled non regenerative front-end, DC bus voltage 465-800 VDC AC current DC power Power loss AC drive type Chassis Thermal Rated Rated c/a/T*) mains mains mains...

  • Page 183: Non-Regenerative Front End Unit Technical Data

    Power loss into air: 0.5 kW Power losses of the chokes: see Table 76. –10 °C (no frost)…+50 °C (at I Ambient operating The NX Liquid-Cooled drives must be used in an temperature heated indoor controlled environment. Installation 0...+70 °C temperature Storage temperature –40 °C…+70 °C;...
  • Page 184 • 182 Non-regenerative front end Table 72. Technical data Immunity Fulfils IEC/EN 61800-3 EMC immunity requirements. EMC level N for TN/TT networks Emissions EMC level T for IT networks IEC/EN 61800-5-1 Safety IEC/EN 60204-1 as relevant, (see unit nameplate for...

  • Page 185: Dimensions

    Non-regenerative front end vacon • 183 11.7 Dimensions Table 73. Non-regenerative front-end unit dimensions Width Height Depth Weight Chassis [mm] [mm] [mm] [kg] CH60 11679_uk ® Figure 103. VACON Liquid-cooled Non-regenerative front end, CH60 Table 74. Terminal connection Earth terminal...

  • Page 186: Chokes

    • 184 Non-regenerative front end 11.8 Chokes Table 76. Type and dimensions for air-cooled chokes Losses to Width Height Depth Weight Losses to Choke type coolant Cooling [mm] [mm] [mm] [kg] air [W] CHK1030N6A0 1170* FLU-CHK-1030-6-DL 1680 1180 Liquid *) Losses for one choke.

  • Page 187: Non-Regenerative Front End - Fuse Selection

    DC buses. If DC fuses are not used, short-circuit in the DC buses will cause a loading of the Non-regenerative Front End unit. Vacon Ltd will not assume any responsibility for damages caused by insufficient protection. The warranty becomes void if the drive is not equipped with appropriate fuses.

  • Page 188: Fuse Sizes, Non-Regenerative Front End Units

    The required AC fuse type for the non-regenerative front end unit can be found from Table 78. The required DC fuse type for the non-regenerative front end unit can be found from Table 79. 11.9.1 Fuse sizes, Non-regenerative Front End units ® Table 78. AC Fuse sizes for VACON NX NFE units Chassis Code Fuse, Mersen...

  • Page 189: 2Option Board Settings

    The NXP control has fixed option boards A1A2BHB100. The option boards have jumpers which you ® may need to set according to the external wiring and connections. See the VACON NX I/O Board User manual for settings. Required board settings for default wiring diagram and components are...

  • Page 190: Dc Pre-Charging Circuit

    • 188 Non-regenerative front end 11.11 DC pre-charging circuit Each Non-regenerative Front End unit requires its own external pre-charging circuit. The purpose of the pre-charging unit is to charge the voltage in the intermediate circuit to a level sufficient for connecting the Non-regenerative Front End unit to the mains.

  • Page 191: Paralleling

    Non-regenerative front end vacon • 189 FI13 AFE / CHARGING-AFE-FFE-FI13 Item Q‘ty Description Manufacturer Product Code Diode Bridge Semikron SKD 82 Charcing resistors Danotherm CBV335C11R Snubber capacitor Rifa PHE448 Contactor Telemecanique LC1D32P7 The Non-regenerative Front End unit must not be connected to mains without pre-charging. In order to ensure the correct operation of the pre-charging circuit, the input circuit-breaker and the pre- charging circuit contactor must be controlled by the Non-regenerative Front End unit.

  • Page 192: Parameters

    • 190 Non-regenerative front end 11.13 Parameters The parameters for software version ANCNQ100 are described below. Table 83. Monitoring values Code Parameter Unit Default Desciption DC voltage measured by external V1.2.1 DC Voltage 1500 AI devices Current measured by external AI V1.2.2...
  • Page 193 Non-regenerative front end vacon • 191 Table 85. Digital input G2.2.1 Code Parameter Unit Default Desciption Select digital input signal for P2.2.1.2 BreakerFeedback 1916 Breaker Feedback Select digital input for missing P2.2.1.3 Miss Input Phase 1917 input phase or low input voltage Select for digital input signal P2.2.1.4...
  • Page 194 • 192 Non-regenerative front end Table 87. Digital Output G2.3.1 Code Parameter Unit Default Desciption Select for digital output signal MC P2.3.1.1 Running 1935 running Selection for digital output close P2.3.1.2 Close MCB 1936 Main circuit breaker Selection digital output signal for P2.3.1.3...
  • Page 195 Non-regenerative front end vacon • 193 Table 89. Protection G2.4 Code Parameter Unit Default Desciption Response to Choke Temp mode when Temp measurement is using digital input (DI)signals or PT100 signal P2.4.7 ChokeTempFauMode 1951 0=No action (DI) 1=Warn + Fault (after delay) (DI)
  • Page 196 • 194 Non-regenerative front end Table 90. Fieldbus G2.5 Code Parameter Unit Default Desciption P2.5.1 Process Data IN1 10000 P2.5.2 Process Data IN2 10000 P2.5.3 Process Data IN3 10000 P2.5.4 Process Data IN4 10000 P2.5.5 Process Data IN5 10000 P2.5.6...

  • Page 197: Ch60 Liquid-Cooled Nfe Protections

    Non-regenerative front end vacon • 195 Table 92. OPT-BH parameters G7.3 Code Parameter Unit Default Desciption 0=No Sensor 1=PT100 2=PT1000 7.3.1.1 Sensor 1 type 3=Ni1000 4=KTY84 5=2 x PT100 6=3 x PT100 7.3.1.2 Sensor 2 type See above 7.3.1.3 Sensor 3 type See above NFE’s internal temperature sensor is PT100.

  • Page 198: Fault Codes

    • 196 Non-regenerative front end 11.15 Fault codes When a fault is detected by the NFE control electronics, the drive is stopped and main circuit breakers and the charging switch is controlled into open state, which will then disconnect the NFE module from the mains supply.
  • Page 199 Non-regenerative front end vacon • 197 Table 96. Fault codes Fault Fault Possible cause Correcting measures code External electronic monitoring relay have detected undervoltage, phase sequence or phase failure issue. • min. threshold value: 360Vac for 400-500Vac supply voltage • min. threshold value: 470Vac for...
  • Page 200 • 198 Non-regenerative front end Table 96. Fault codes Fault Fault Possible cause Correcting measures code • Check liquid cooling • Check the signal Cooling OK digital input for liquid cooling Cooling wiring feedback have triggered the fault • Check Cooling OK input •...

  • Page 201: Brake Chopper Unit (Nxb)

    12.2 Type designation code In Vacon type designation code, the Brake Chopper Unit is characterized by number 8, for example: NXB 0300 5 A1A2000000 12.3 Diagrams 12.3.1...

  • Page 202: Vacon® Nxb Topologies And Connection

    • 200 Brake chopper unit (NXB) ® 12.3.2 VACON NXB topologies and connection NXB (Brake Chopper Unit) + one resistor U/T1 Resistor is a braking power control unit. V/T2 Unnecessary energy is burnt off W/T3 NXB (Brake Chopper Unit) + two resistors...

  • Page 203: Brake Chopper Unit Technical Data

    12.4 Brake chopper unit technical data *) NX_8 AC drives only available as Ch6x AFE/BCU/INU units. ® Table 97. Technical specification for VACON NXB Liquid-Cooled brake chopper unit NX_5: 400…500 VAC (–10%…+10%); 465…800 VDC (–0%…+0%) NX_6: 525…690 VAC (–10%…+10%); 640…1100 VDC Input voltage U (–0%…+0%)
  • Page 204 • 202 Brake chopper unit (NXB) ® Table 97. Technical specification for VACON NXB Liquid-Cooled brake chopper unit 5…150 Hz Vibration Displacement amplitude 0.25 mm (peak) EN 50178/EN 60068-2-6 at 3…31 Hz Max acceleration amplitude 1 G at 31…150 Hz...
  • Page 205 Brake chopper unit (NXB) vacon • 203 ® Table 97. Technical specification for VACON NXB Liquid-Cooled brake chopper unit Drinking water (see specification on page 46) Allowed cooling agents Water-glycol mixture See derating specifications, Chapter 5.3. Volume See Table 19.

  • Page 206: Bcu Power Ratings

    Brake chopper unit (NXB) 12.5 BCU power ratings ® 12.5.1 VACON NXB; DC voltage 460–800 V ® Table 98. Power ratings of VACON NXB, supply voltage 460–800 Vdc Braking voltage 460-800 VDC Loadability Braking capacity Rated cont. Rated cont. braking...

  • Page 207: Vacon® Nxb; Dc Voltage 640-1100 V

    Brake chopper unit (NXB) vacon • 205 ® 12.5.2 VACON NXB; DC voltage 640–1100 V ® Table 99. Power ratings of VACON NXB, supply voltage 640–1100 Vdc Braking voltage 640-1100 VDC ***) Loadability Braking capacity Rated cont. Rated cont. BCU rated...

  • Page 208: Vacon® Brake Resistors And Brake Chopper Dimensioning

    • 206 Brake chopper unit (NXB) ® 12.6 VACON brake resistors and brake chopper dimensioning 12.6.1 Braking energy and losses ® Table 100. VACON standard brake resistors and NXB energy, mains voltage 465–800 Vdc Mains voltage 465-800 VDC BCU output...
  • Page 209 Brake chopper unit (NXB) vacon • 207 ® Table 101. VACON standard brake resistors and NXB energy, mains voltage 640–1100 Vdc Mains voltage 640-1100 VDC NXB 0460_6 BRR0416 / 2.5 2710 7046 8.7/0.4/9.1 Ch62 NXB 0502_6 BRR0416 / 1.7 3986 10362 9.8/0.5/10.3...

  • Page 210: Braking Power And Resistance, Mains Voltage 380-500 Vac/600-800 Vdc

    • 208 Brake chopper unit (NXB) 12.6.2 Braking power and resistance, mains voltage 380–500 Vac/600–800 Table 102. Voltage levels Default +18% DC-link voltage level for braking Voltage +18% Table 103. Maximum braking power Thermal Max braking power at DC-link voltages [kW]...
  • Page 211 Brake chopper unit (NXB) vacon • 209 Table 104. Minimum resistance Minimum resistance at DC-link voltages [ohm] Thermal Chassis NXB unit current [Ith] NXB 0261_5 Ch61 NXB 0300_5 Ch61 NXB 0385_5 Ch62 NXB 0460_5 Ch62 NXB 0520_5 Ch62 NXB 0590_5...

  • Page 212: Braking Power And Resistance, Mains Voltage 525-690 Vac/840-1100 Vdc

    • 210 Brake chopper unit (NXB) 12.6.3 Braking power and resistance, mains voltage 525–690 Vac/ 840–1100 Vdc Table 106. Voltage levels Default +18% DC-link voltage level for braking Voltage 708.8 742.5 776.3 850.5 931.5 +18% 1004 1051 1099 Table 107. Maximum braking power...
  • Page 213 Brake chopper unit (NXB) vacon • 211 Table 109. Maximum resistance Maximum resistance at DC-link voltages [ohm] Thermal Chassis NXB unit current [Ith] 1004 1051 1099 1136 * Ch61 NXB 0170_6 24.6 25.8 26.9 28.1 29.5 30.9 32.3 33.4 Ch61 NXB 0208_6 20.1...

  • Page 214: Brake Chopper Unit - Fuse Selection

    • 212 Brake chopper unit (NXB) 12.7 Brake chopper unit – Fuse selection Table 110. BCU fuse selection, mains voltage 465–800 Vdc "TTF" threaded end "TTQF" threaded end DIN43620 "7X" or size 83 with end size84 or "PLAF" 2x84 Min res.
  • Page 215 Brake chopper unit (NXB) vacon • 213 Table 111. BCU fuse selection, mains voltage 640–1100 Vdc "TTF" threaded end "TTQF" threaded end DIN43620 "7X" or size 83 with size84 or "PLAF" 2x84 Min res. end contacts with end contacts Chass...

  • Page 216: Appendices

    • 214 Appendices PPENDICES Appendix 1 ® VACON NX Liquid-Cooled AC drive and inverter main circuit and control diagrams CH3, FC B+ / R+ DC + U / T1 Skiip Skiip V / T2 81...83 81...83 W / T3...
  • Page 217 Appendices vacon • 215 CH5, FC SKiM 5 U / T1 V / T2 W / T3 X10 X11 X13 MEASUREMENTS K1, K2, K3 DC + + 24 V DC - RECTIFIER BOARD POWER BOARD FIBER ADAPTER BOARD H1...H7 CONTROL BOARD...
  • Page 218 • 216 Appendices CH61, FC MODULE RIGHT SIDE U / T1 V / T2 W / T3 MAINS VOLTAGE SUPERVISION MEASUREMENT BOARD 1 RECTIFIER BOARD With SPU-024 option only X1/+: connected to DC+ if SPU-024 not in use DRIVER BOARD 11408_uk Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/...
  • Page 219 Appendices vacon • 217 CH61, FC, CONTROL ASIC BOARD DC + DC - RECT / X13 CONTROL UNIT DRIVER / X13 CONTROL DRIVER / X14 PANEL DRIVER / X15 DRIVER / H4 DRIVER / H5 DRIVER / H6 OPTO DRIVER / H7...
  • Page 220 • 218 Appendices CH61, INVERTER, CONTROL ASIC BOARD DC + DC - CONTROL UNIT DRIVER / X13 CONTROL DRIVER / X14 PANEL DRIVER / X15 DRIVER / H4 DRIVER / H5 DRIVER / H6 OPTO DRIVER / H7 ADAPTER...
  • Page 221 Appendices vacon • 219 CH62, INVERTER, CONTROL ASIC BOARD DC + DC - CONTROL UNIT DRIVER / X13 CONTROL DRIVER / X14 PANEL DRIVER / X15 DRIVER / H4 DRIVER / H5 DRIVER / H6 OPTO DRIVER / H7 ADAPTER...
  • Page 222 • 220 Appendices CH63, FC, MODULE 2 V / T2 W / T3 MEASUREMENT BOARD 2 MEASUREMENT BOARD 3 DRIVER BOARD V DRIVER BOARD W With SPU-024 option only X1/+ and X15/+: connected to DC+ if SPU-024 not in use...
  • Page 223 Appendices vacon • 221 U / T1 CH63, INVERTER, MODULE 1 MEASUREMENT BOARD 1 DRIVER BOARD U 11417_uk V / T2 W / T3 CH63, INVERTER, MODULE 2 MEASUREMENT BOARD 2 MEASUREMENT BOARD 3 DRIVER BOARD V DRIVER BOARD W...
  • Page 224 • 222 Appendices CH63, INVERTER, CONTROL ASIC BOARD DC + DC - CONTROL UNIT DRIVER U / X6 CONTROL DRIVER V / X2 PANEL DRIVER W / X6 DRIVER U / H15 DRIVER U / H16 DRIVER V / H2...
  • Page 225 Appendices vacon • 223 CH64, INVERTER, CONTROL ASIC BOARD DC + DC - Charge fb PHASE DRIVER / X1 MODULE CONTROL UNIT DRIVER / H2 CONTROL DRIVER / H4 PANEL DRIVER / X1 PHASE MODULE DRIVER / H2 DRIVER / H4...
  • Page 226 • 224 Appendices CH72, FC, CONTROL ASIC BOARD DC + DC - RECT / X13 DRIVER / X13 CONTROL UNIT CONTROL DRIVER / X14 PANEL DRIVER / X15 DRIVER / H4 DRIVER / H5 DRIVER / H6 OPTO DRIVER / H7...
  • Page 227 Appendices vacon • 225 ASIC CH74, FC, CONTROL BOARD DC + DC - Charge fb RECT / X13 PHASE DRIVER / X1 MODULE CONTROL UNIT DRIVER / H2 CONTROL DRIVER / H4 PANEL DRIVER / X1 PHASE MODULE DRIVER / H2...
  • Page 228 • 226 Appendices Appendix 2 ® OETL2500 + OFAX3 + Charging circuit for VACON NX Liquid-Cooled inverters 1640_5 to 2300_5 (3 diagrams) MAIN CIRCUIT 500V 400 VAC aux L1 aux L2 -F2.1 /5-3C DC+ /5-3C DC- DC+ DC- DC+ DC-...
  • Page 229 Appendices vacon • 227 CONTROL UNIT /1-1B 24 VDC SUPPLY -KENTTÄ-Q2 -W13 +10Vref AIA1+ AIA1- AIA2+ AIA2- +24V DIN1 DIN2 DIN3 +24V DIN4 DIN5 DIN6 AOA1+ AOA1- DOA1 ABCD ABCD -A16 -A11 VACON-03-A1: RO1 NC RO1 C RO1 NO RO2 C...
  • Page 230 • 228 Appendices /1-7C AUX (L1) /1-7C AUX (L2) /1-1B > I > I > START -U1.3 START /1-5D CH1 /1-6D CH2 -K10.1 -K10.2 -K10.1 -K10.2 -K11 -K11 /1-1B -Q1.1 -K10.1 -K10.2 -K11 DC ready Head switch in used...
  • Page 231 The physical size of the fuse is chosen on the basis of the fuse current: Current < 400 amps (size 2 fuse or smaller), current < 400 amps (size 3 fuse). ® Table 112. Fuse sizes (Bussman aR) for VACON NX Liquid-Cooled (500 V) AC drives DIN43653 DIN43653 Qty.
  • Page 232 • 230 Appendices ® Table 112. Fuse sizes (Bussman aR) for VACON NX Liquid-Cooled (500 V) AC drives DIN43653 DIN43653 Qty. of DIN43620 Fuse Fuse (80mm) (110mm) fuses per Chassis Type Ith phase aR fuse Fuse aR fuse Fuse...
  • Page 233 Appendices vacon • 231 ® Table 113. Fuse sizes (Bussman aR) for VACON NX Liquid-Cooled (690 V) AC drives DIN43653 DIN43653 Qty. of DIN43620 (80mm) (110mm) Fuse Fuse fuses Chassis Type aR fuse Fuse aR fuse Fuse aR fuse Fuse phase part nr.
  • Page 234 • 232 Appendices ® Table 114. Fuse sizes (Bussman aR) for VACON NX Liquid-Cooled (450—800 V) inverters DIN43653 DIN43653 DIN43620 Fuse Fuse Qty. of (80mm) (110mm) Chassis Type fuses/ aR fuse Fuse aR fuse Fuse aR fuse Fuse pole part nr.
  • Page 235 170M6277 3SHT 170M8639 3TN/110 1100 1000 SHT fuses can be assembled into DIN fuse base of the corresponding size ® Table 115. Fuse sizes (Bussman aR) for VACON NX AFE units (380—500 V) DIN43653 DIN43653 DIN43620 Fuse Fuse Qty. of...
  • Page 236 • 234 Appendices ® Table 115. Fuse sizes (Bussman aR) for VACON NX AFE units (380—500 V) DIN43653 DIN43653 DIN43620 Fuse Fuse Qty. of (80mm) (110mm) Chassis Type fuses / aR fuse Fuse aR fuse Fuse aR fuse Fuse phase 3~ part nr.
  • Page 237 Appendices vacon • 235 ® Table 116. Fuse sizes (Bussman aR) for VACON NX AFE units (525—690 V) DIN43620 DIN43653 (110mm) Qty. of Fuse Fuse Type fuses / aR fuse Fuse aR fuse Chassis Fuse size phase 3~ part nr.
  • Page 238 • 236 Appendices Table 117. Brake chopper unit fuse selection (Bussman aR), mains voltage 465–800 Vdc DIN43620 Min resistor Qty. of Braking Fuse Fuse Chassis Type value, 2* fuses per aR fuse Fuse current [ohm] pole part nr. size 0016 52.55...
  • Page 239 Document ID: Vacon Ltd DPD00887E Member of the Danfoss Group Rev. E Runsorintie 7 65380 Vaasa Sales code: DOC-INSNXPLC+DLUK Finland...
