The valid range for the Decimal Radix indication is from 0 to 65535. It does not accept negative values. If
7
you need to receive negative values, select the Hex Radix option instead.
Chapter 3: Configuring the 2085-IF4XOF4-SC Using CCW
-
Decimal. Characters represented as decimals. Example:
32767
• Launch. Use to populate the file path field. The file path lets you
enter the file path for opening the MCC utility program to assist you
in configuring the module. Use the Browse ellipse to navigate to
where the utility is stored. Then click the Launch button to start the
utility.
You may create the configuration for each channel using the MCC utility
provided by Spectrum Controls, Inc. You download the utility from the Spectrum
Controls website at https://www.spectrumcontrols.com.
To use the MCC utility:
1. The first time you configure a Spectrum Controls 2085 analog module,
you must provide the file path of the utility to the CCW software.

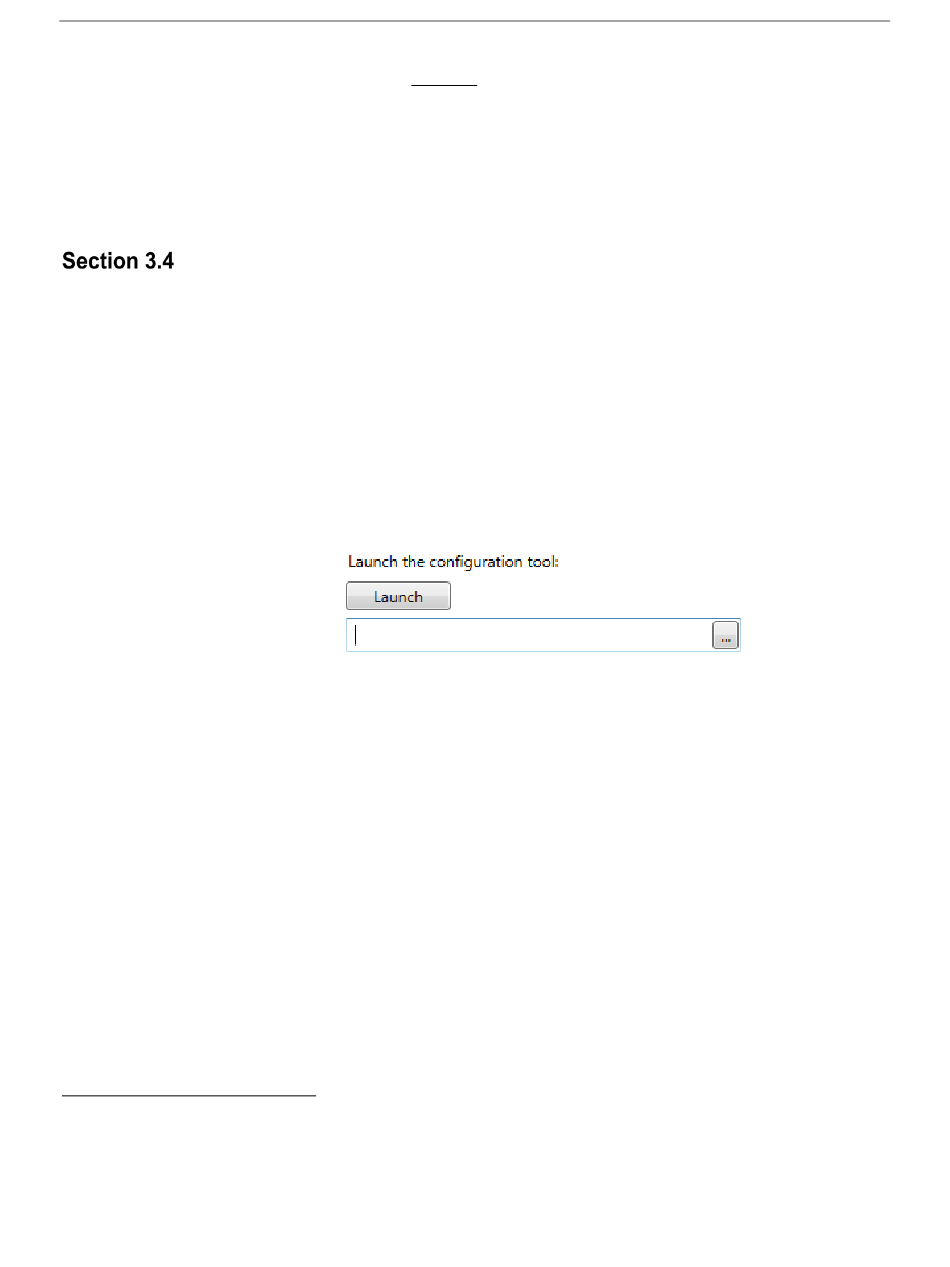

Navigate to the CCW Configuration Tab and click in the file path
textbox below the Launch button.
The Browse button appears.
2. Click the button, navigate to the directory where you installed the CCW
program, and select the ModuleConfigConverter tool located in the
Spectrum Tool directory:
7
User's Manual Pub. 0300307-01 Rev. A
3-7
