Minimum Spacing; Parts List; Module Description; Insert Module Into The Controller - Spectrum Controls 2085sc-IF8U User Manual

2-4
6
5
Description
1 Mounting screw hole/mounting foot
2 Removable Terminal Block (RTB)
3 RTB hold down screws
User's Manual Pub. 0300305-01 Rev. A

2.4.1 Minimum Spacing

Maintain spacing from enclosure walls, wire ways, adjacent equipment, etc.

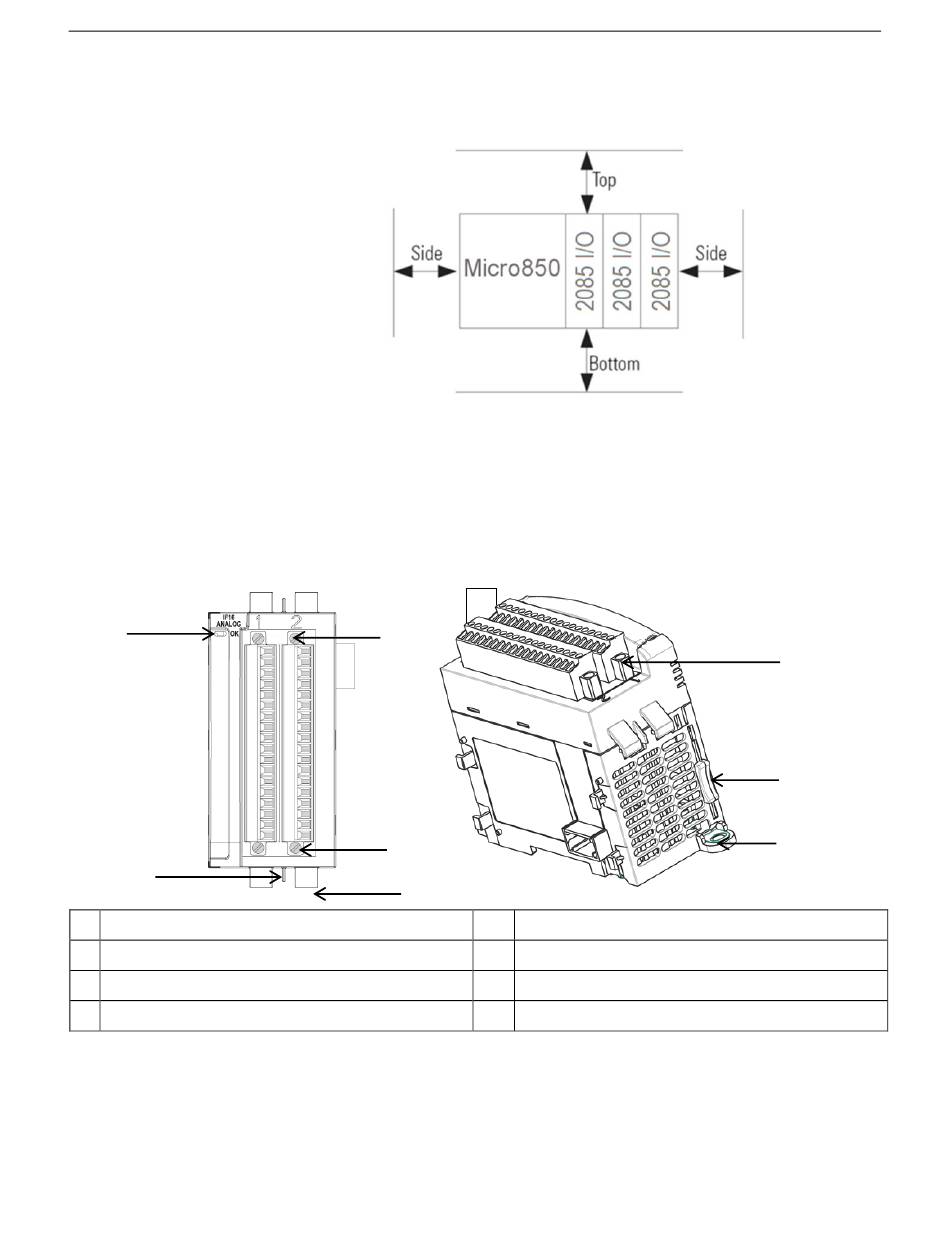

Allow 50.8 mm (2 in.) of space on all sides for adequate ventilation, as shown:

2.4.2 Parts List

Your package contains one Micro850 2085sc-IF8u (Universal Analog Input)
Plug-in Module and one Quick Start Guide.

2.4.3 Module Description

3
3
1

2.4.4 Insert Module into the Controller

You can choose to wire the plug-in before inserting it into the controller, or wire
it once the module is secured in place.
Chapter 2: Installation and Wiring
2
Description
4 Module interconnect latch
5 DIN rail mounting latch
6 I/O Status LED
3
4
1
