2-4
Chapter 2: Installation and Wiring
Section 2.4
Mounting
WARNING
NOTE
WARNING
User's Manual Pub. 0300247-01 Rev. D
Do not remove protective debris strip until after the module and all other
equipment near the module is mounted and wiring is complete. Once
wiring is complete, and the module is free of debris, carefully remove
protective debris strip. Failure to remove strip before operating can cause
overheating.

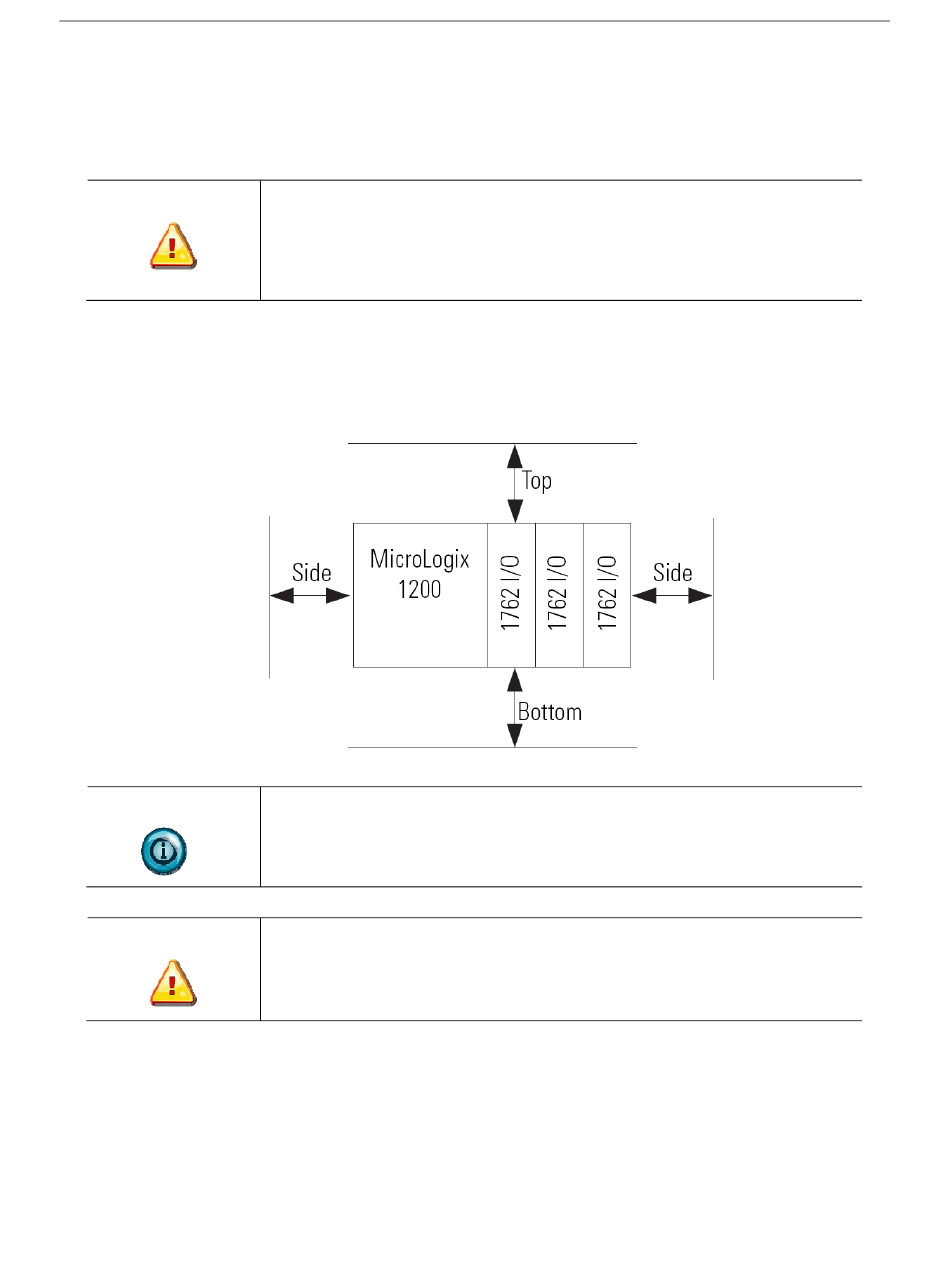

2.4.1 Minimum Spacing

Maintain spacing from enclosure walls, wireways, adjacent equipment, etc.
Allow 50.8 mm (2 in.) of space on all sides for adequate ventilation, as shown:
Figure 2-1
1762 expansion I/O may only be mounted horizontally.
During panel or DIN rail mounting of all devices, be sure that all debris
(metal chips, wire strands, etc.) is kept from falling into the module.
Debris that falls into the module could cause damage when power is
applied to the module.

2.4.2 DIN Rail Mounting

The module can be mounted using the following DIN rails: 35 × 7.5 mm (EN 50
022 - 35 × 7.5) or 35 × 15 mm (EN 50 022 - 35 × 15).
Before mounting the module on a DIN rail, close the DIN rail latch. Press the
DIN rail mounting area of the module against the DIN rail. The latch will
momentarily open and lock into place.
