Maintenance
Place on the keyboard grid at a 45° angle, see Fig. 16.4.

Snap in keyboard grid lugs

Fold keyboard grid onto keyboard

Align keys

 Press keyboard grid firmly

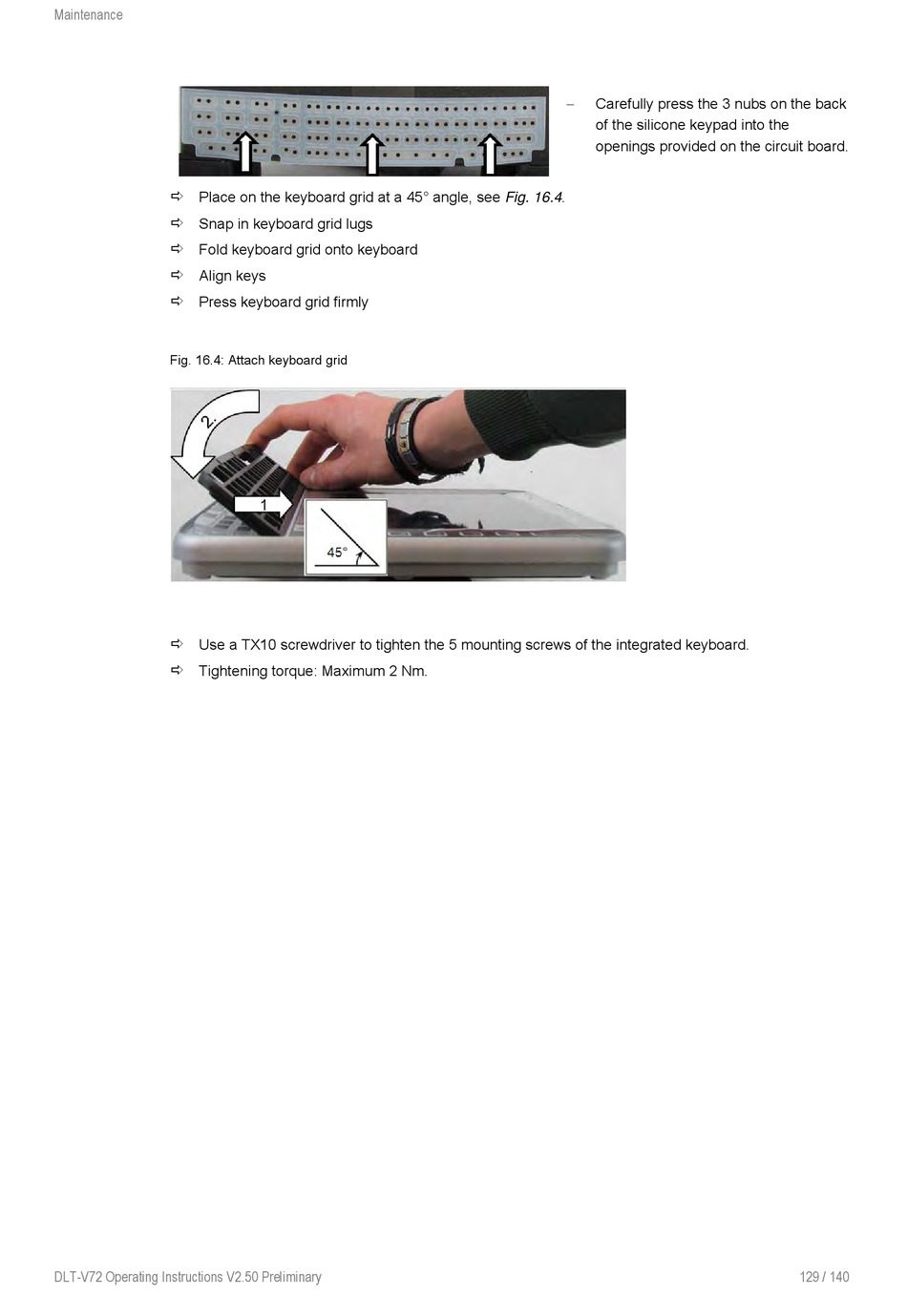

Fig. 16.4: Attach keyboard grid

Use a TX10 screwdriver to tighten the 5 mounting screws of the integrated keyboard.

Tightening torque: Maximum 2 Nm.

DLT-V72 Operating Instructions V2.50 Preliminary
− Carefully press the 3 nubs on the back
of the silicone keypad into the
openings provided on the circuit board.
129 / 140
