Remove the integrated keyboard

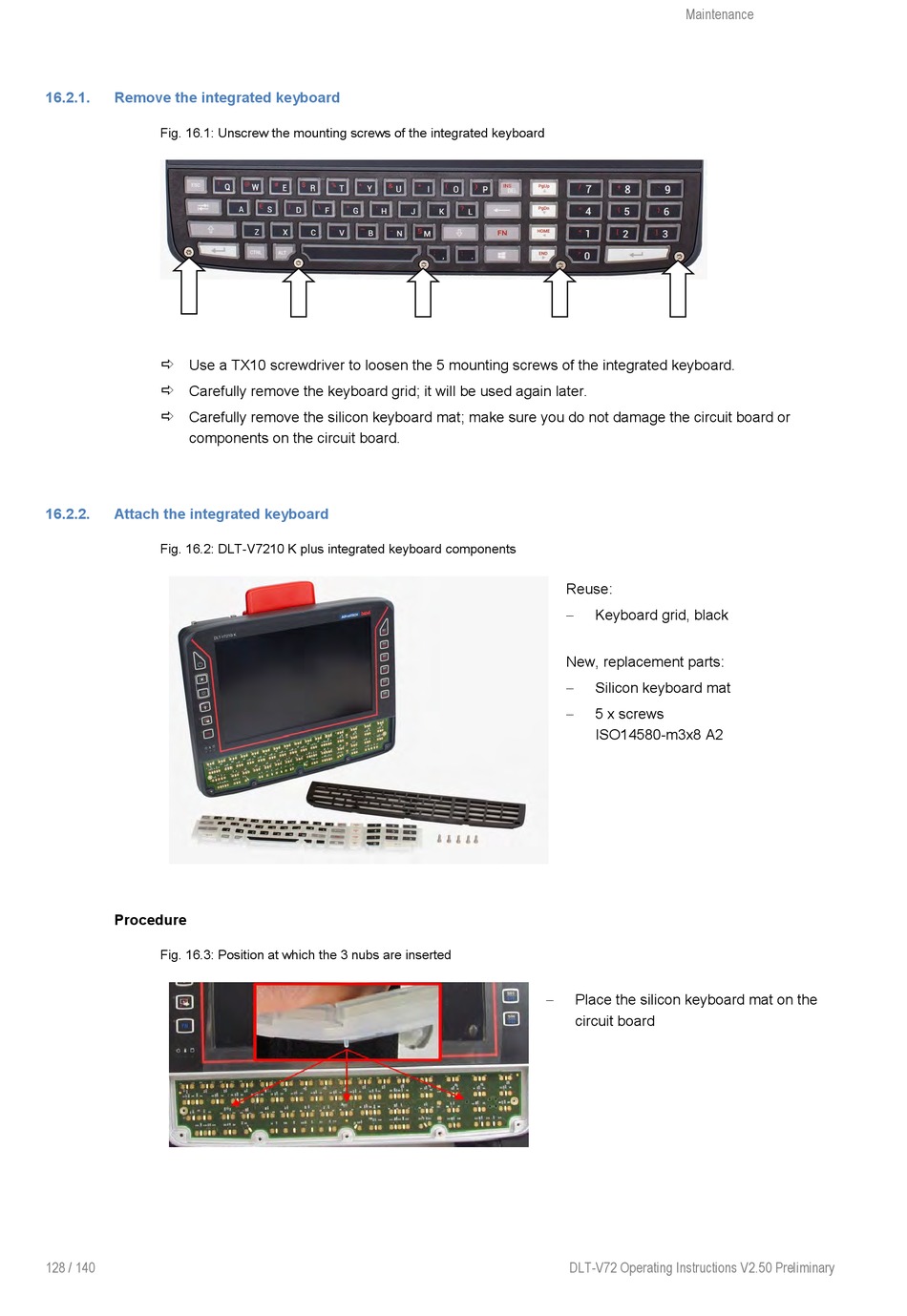

Fig. 16.1: Unscrew the mounting screws of the integrated keyboard

Use a TX10 screwdriver to loosen the 5 mounting screws of the integrated keyboard.

 Carefully remove the keyboard grid; it will be used again later.
Carefully remove the silicon keyboard mat; make sure you do not damage the circuit board or

components on the circuit board.
16.2.2.

Attach the integrated keyboard

Fig. 16.2: DLT-V7210 K plus integrated keyboard components
Procedure

Fig. 16.3: Position at which the 3 nubs are inserted

128 / 140
Maintenance
Reuse:
− Keyboard grid, black
New, replacement parts:
− Silicon keyboard mat
5 x screws
−
ISO14580-m3x8 A2
− Place the silicon keyboard mat on the
circuit board
