12.4.2.

Ethernet cable

 Plug the Ethernet cable into the associated port.
Fold open the round cable passage in the rubber seal.

Insert the Ethernet cable.

Secure Ethernet cable to the strain relief rail with cable clips and screws.

ATTENTION Tighten the mounting screws sufficiently but on no account pinch or crush the cable.

If you do, the cables may break or the cable insulation may get damaged.

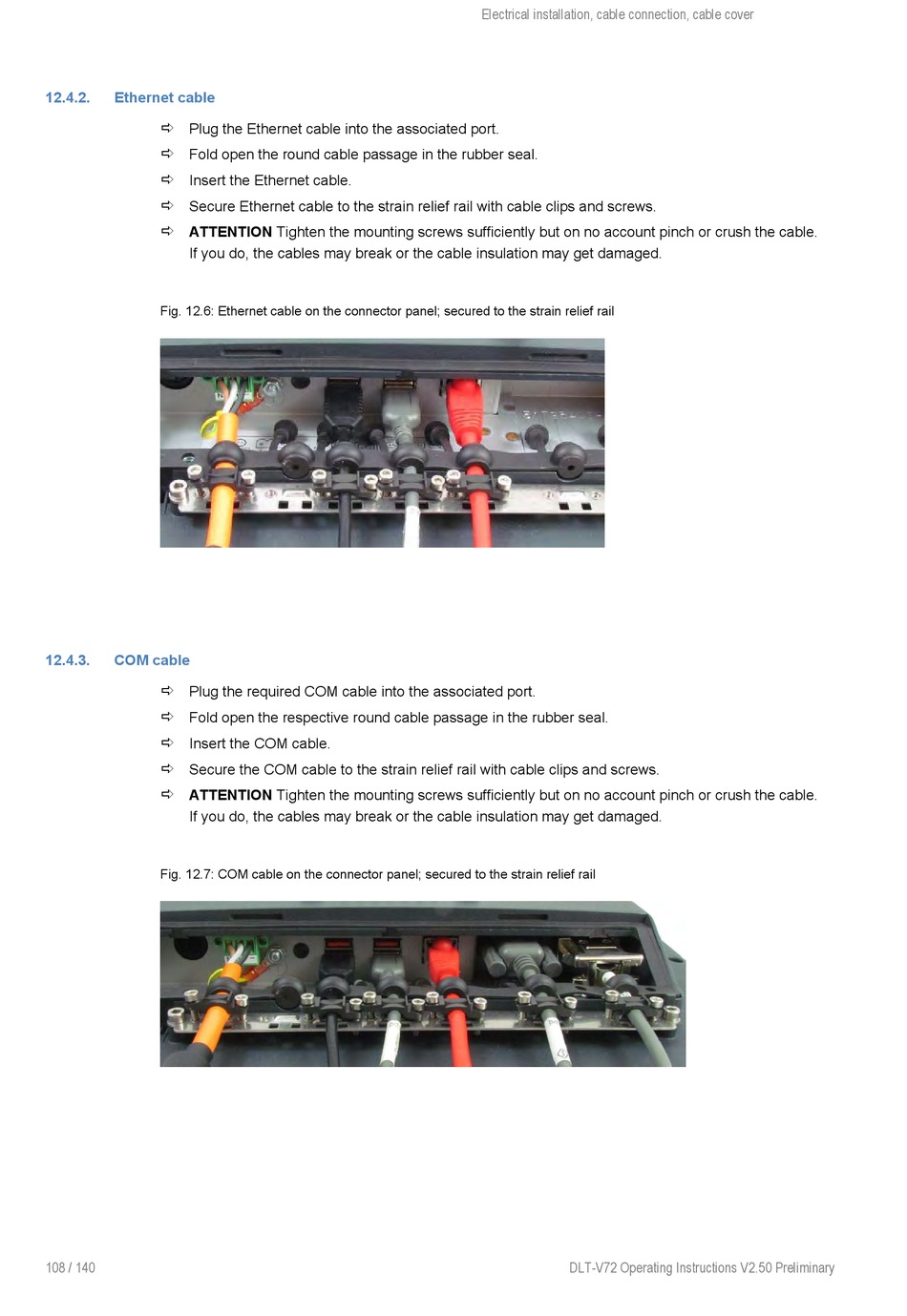

Fig. 12.6: Ethernet cable on the connector panel; secured to the strain relief rail

12.4.3.

COM cable

 Plug the required COM cable into the associated port.
Fold open the respective round cable passage in the rubber seal.

Insert the COM cable.

Secure the COM cable to the strain relief rail with cable clips and screws.

ATTENTION Tighten the mounting screws sufficiently but on no account pinch or crush the cable.

If you do, the cables may break or the cable insulation may get damaged.

Fig. 12.7: COM cable on the connector panel; secured to the strain relief rail
