WWAN configuration
10.6.

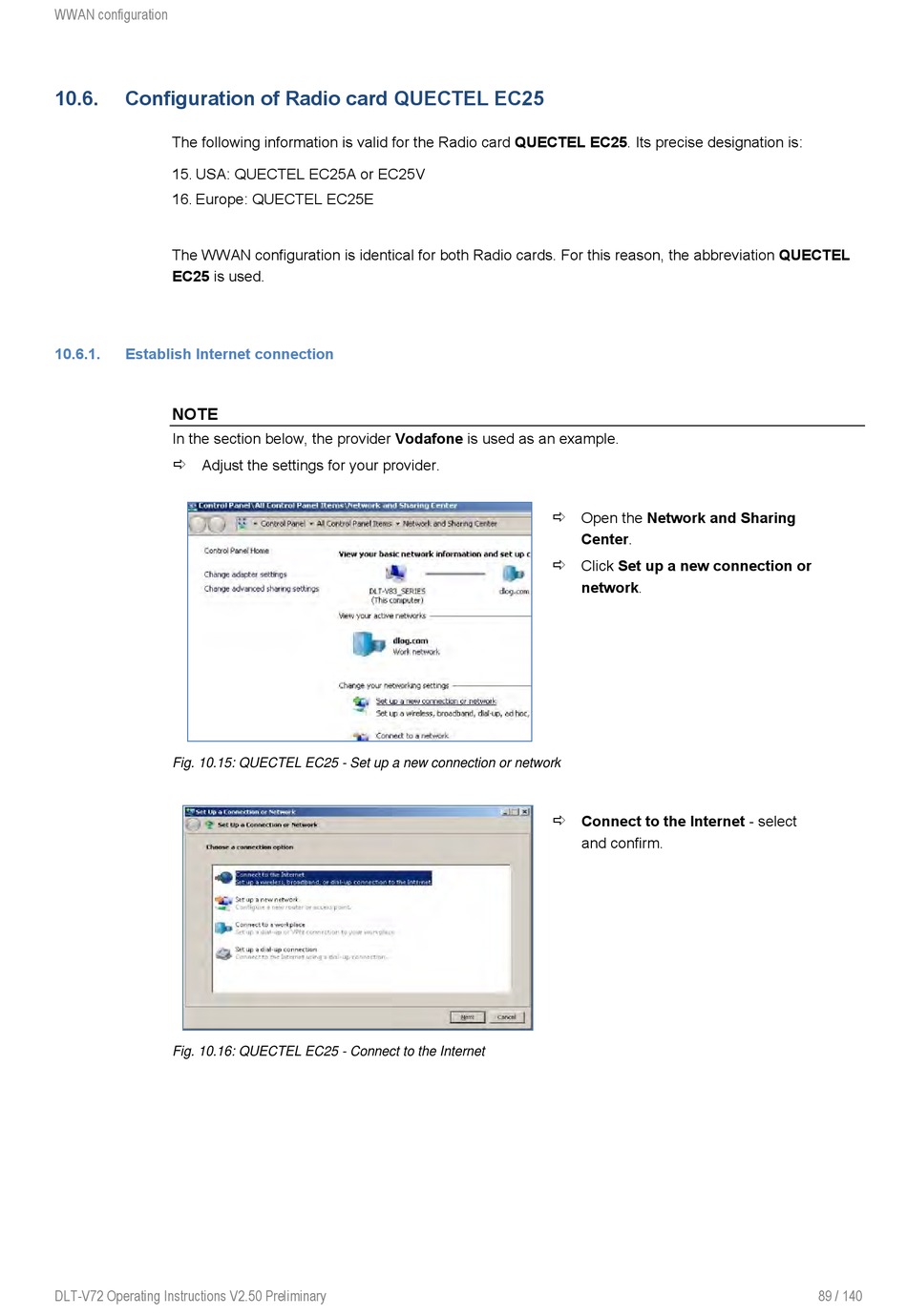

Configuration of Radio card QUECTEL EC25

The following information is valid for the Radio card QUECTEL EC25. Its precise designation is:
15. USA: QUECTEL EC25A or EC25V
16. Europe: QUECTEL EC25E
The WWAN configuration is identical for both Radio cards. For this reason, the abbreviation QUECTEL
EC25 is used.
10.6.1.

Establish Internet connection

NOTE
In the section below, the provider Vodafone is used as an example.
Adjust the settings for your provider.


Fig. 10.15: QUECTEL EC25 - Set up a new connection or network

Fig. 10.16: QUECTEL EC25 - Connect to the Internet

DLT-V72 Operating Instructions V2.50 Preliminary
Open the Network and Sharing

Center.
 Click Set up a new connection or
network.
Connect to the Internet - select

and confirm.
89 / 140
