11.3.

Attaching accessories to the DLT-V72

For example: mounting bracket, scanner mounting
ATTENTION: Physical damage
Only use mounting brackets, accessories and mounting materials that have been tested and
approved for the respective DLT-V72. Otherwise, any warranty for this device will be void.
All mounting brackets, accessories and mounting materials supplied by Advantech are only
intended to be used for attachment of the Industrial Computers and the peripheral devices and
may not be misused.
11.3.1.

VESA mounting hole pattern

The rear side of the DLT-V72 has a VESA-compatible mounting hole pattern with 75 x 75 mm for a RAM
Mount bracket or swivel mounting.

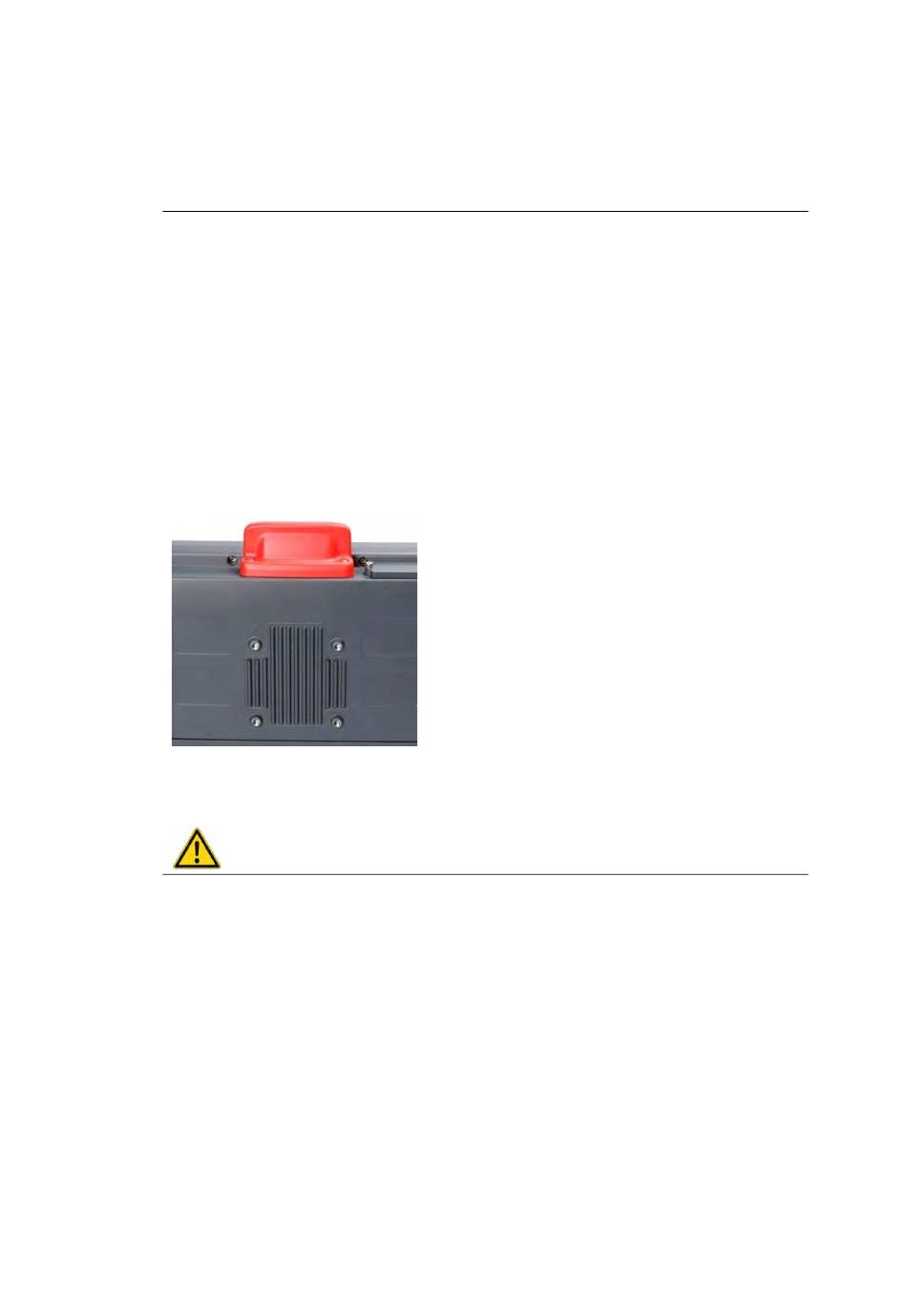

Fig. 11.1: VESA mounting hole pattern on the rear side of the DLT-V72

Risk of accident during vehicle operation if the mounting of the DLT-V72 becomes loose
and breaks while driving.
Ensure the following when attaching the mounting on the VESA mounting hole pattern:
Special mechanical knowledge is required for correct mounting!
−
− Use suitable mounting material.
− Use suitable screws: Screws that are too long can penetrate the back of the DLT-V72 and
cause irreparable damage. Screws that are too short do not provide secure mounting.
− Use suitable washers.
− Observe the maximum screw-in depth of the hole of the mounting hole pattern: The
recommended screw-in depth of Dx1 always applies (screw diameter x 1).
If you ordered a bracket from Advantech, it includes the suitable screws and washers.
−
Please use them (see examples).
98 / 140
WARNING
Screw-in depth VESA mounting hole pattern: M6 x 6 mm
Suitable mounting material:
− Cylinder-head screws int.hex DIN912 M6
Washers ISO 8738 (DIN 1440)-A6-A2
−
DLT-V72 Operating Instructions V2.50 Preliminary
Mechanical installation
