6.3.2.

Wi-Fi, WWAN, LTE 4G antenna (Multiband)

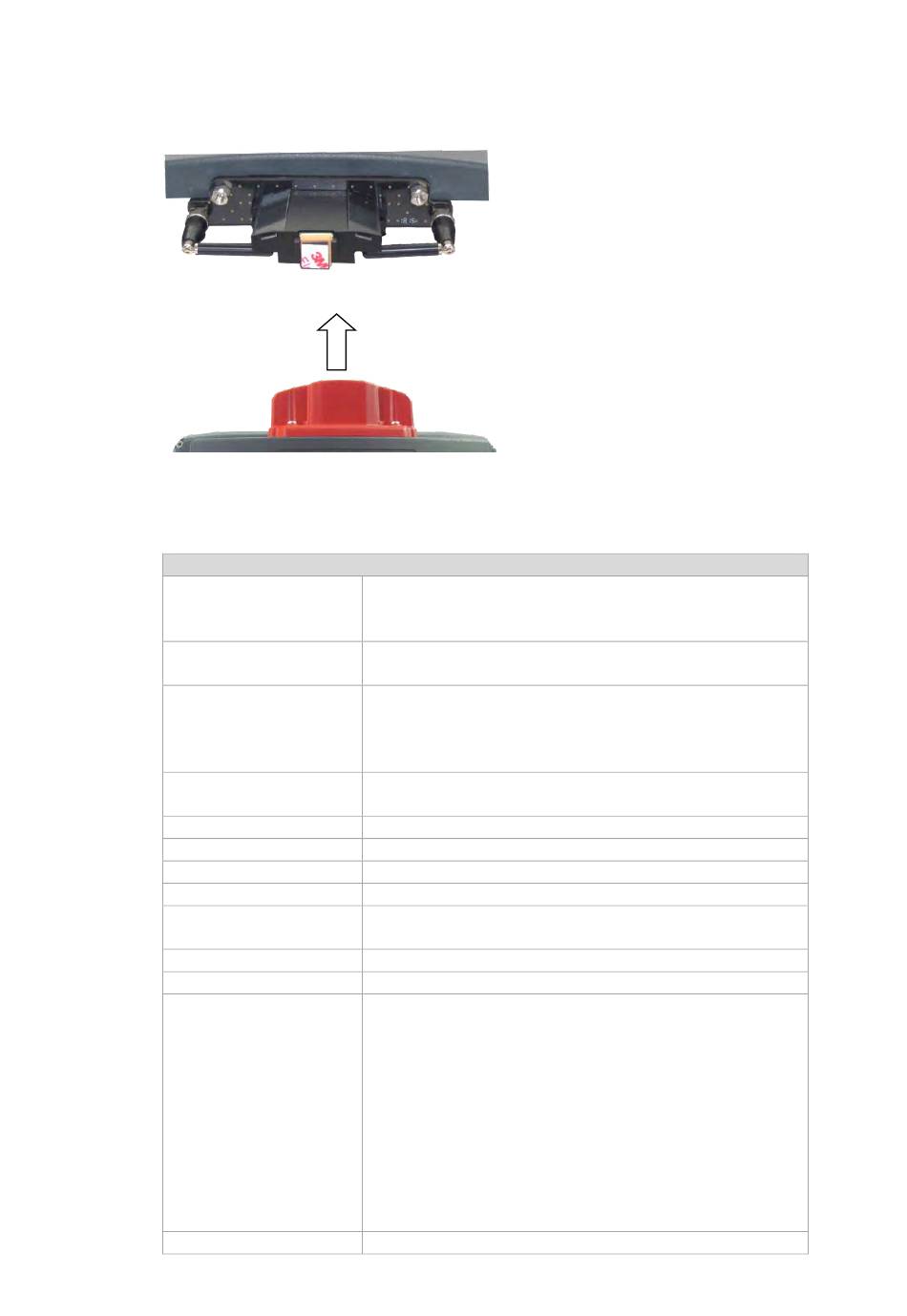

Detail view: Antenna module (visible with open antenna open)
Fig. 6.2: Wi-Fi, WWAN, LTE 4G antenna (Multiband)
Technical data
Application
Wi-Fi frequency range
WWAN frequency bands
with EC25-E
WWAN frequency bands
with EC25-A
Bluetooth features
Number of antennas
Available color
Type
Antenna gain
Impedance
Polarization
Maximum transmitting
power
Compatible Wi-Fi card:
30 / 140
Technical data – Radio modules (all optional)
Wi-Fi IEEE 802.11 ac/a/b/g/n Dual Band with MRC
WWAN 4G
Bluetooth 4.2+HS
Band 1: 2400 to 2483.5 MHz
Band 2: 5150 to 5875 MHz
FDD LTE: B1/B3/B5/B7/B8/B20
TDD LTE: B38/B40/B41
WCDMA: B1/B5/B8
GSM: 900/1800
FDD LTE: B2/B4/B12
WCDMA: B2/B4/B5
See section 6.4.1 Bluetooth
4
Red
PIFA antenna (Wi-Fi), Dipole antenna (WWAN)
Wi-Fi: Max. 2.8 dBi (2.4G Band), 2.8 dBi (5G Band)
WWAN: Max. 3.5 dBi
50 Ω
Vertical/horizontal
Wi-Fi: 22 dBm
WWAN:
Class 3 (23dBm±2dB) for LTE FDD
Class 3 (23dBm±2dB) for LTE TDD
Class 3 (24dBm+1/-3dB) for TD-SCDMA
Class 3 (24dBm+1/-3dB) for WCDMA
Class E2 (27dBm±3dB) for EDGE 850/900MHz
Class E2 (26dBm+3/-4dB) for EDGE
1800/1900MHz
Class 4 (33dBm±2dB) for GSM 850/900MHz
Class 1 (30dBm±2dB) for GSM 1800/1900MHz
SPARKLAN WPEQ-261 ACN (BT)
