Antennas (all optional)

6.3.1.

Wi-Fi antenna IEEE 802.11 a/b/g/n/ac

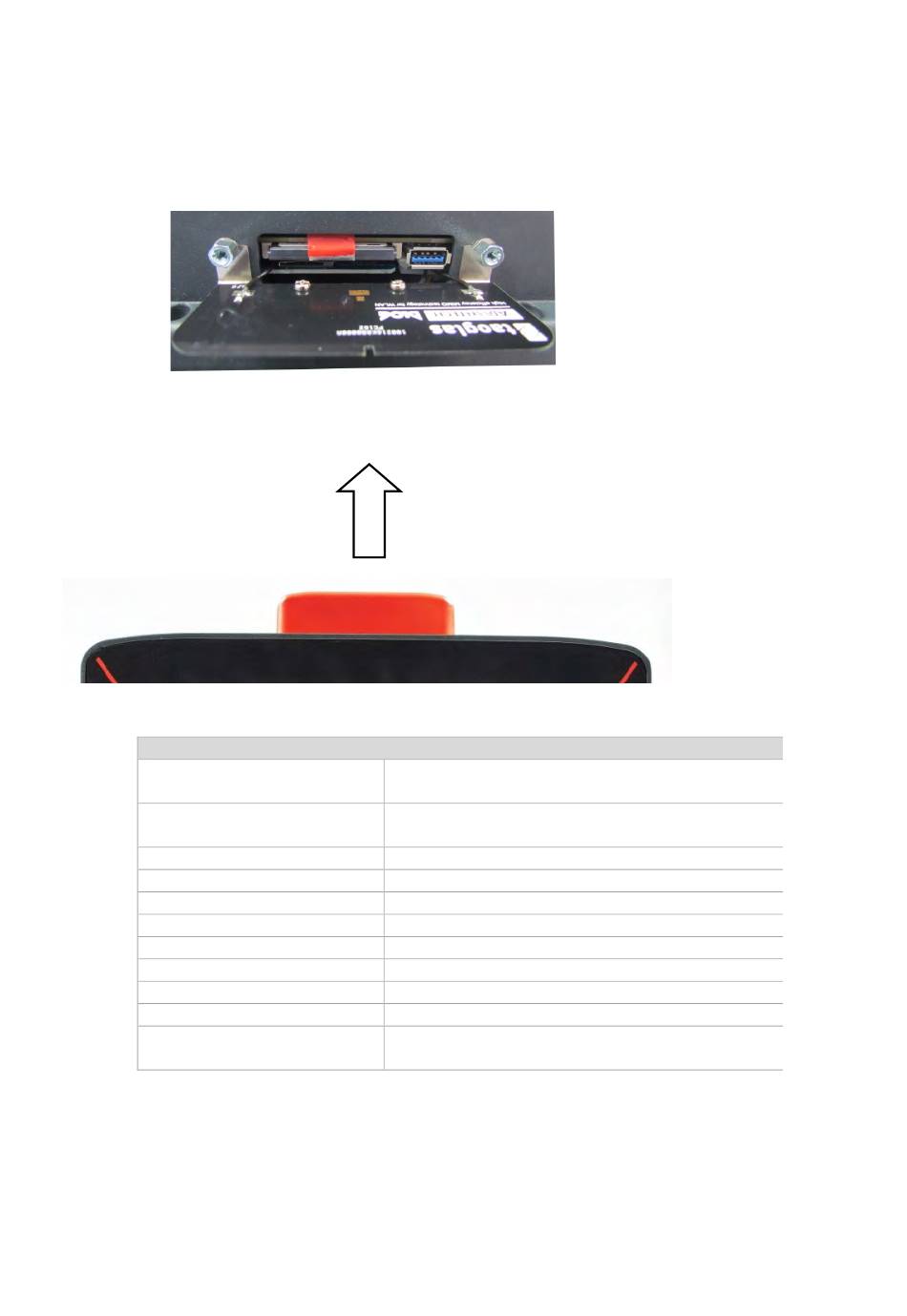

Detail view: Antenna module (visible with open antenna)
Technical data
Fig. 6.1: Wi-Fi antenna IEEE 802.11 a/b/g/n
Application
Wi-Fi frequency range
Bluetooth features
Number of antennas
Available color
Type
Antenna gain
Impedance
Polarization
Maximum transmitting power
Compatible Radio card:
DLT-V72 Operating Instructions V2.50 Preliminary
and antenna module
Wi-Fi a/b/g/n/ac Dual Band with MRC
Bluetooth (integrated via Radio card)
Band 1: 2400 to 2483.5 MHz
Band 2: 5150 to 5850 MHz
See section 6.4.1 Bluetooth
2
Red
PIFA antenna
Max. 3.44 dBi (Band 1) , 2.85 dBi (Band 2)
50 Ω
Vertical/horizontal
100 mW / 20 dBm
SPARKLAN WPEQ-261ACN(BT)
(see section 6.2.1 Available radio cards)
