13.2.2.

CFast slot

There is a CFast slot under the antenna.
 Exercise special care when removing and re-inserting CFast cards.
Use only CFast cards that have been approved.

13.2.3.

Antenna opening/closing

Opening
Loosen the two screws of the antenna using Torx screwdriver.

Carefully lift up the antenna.


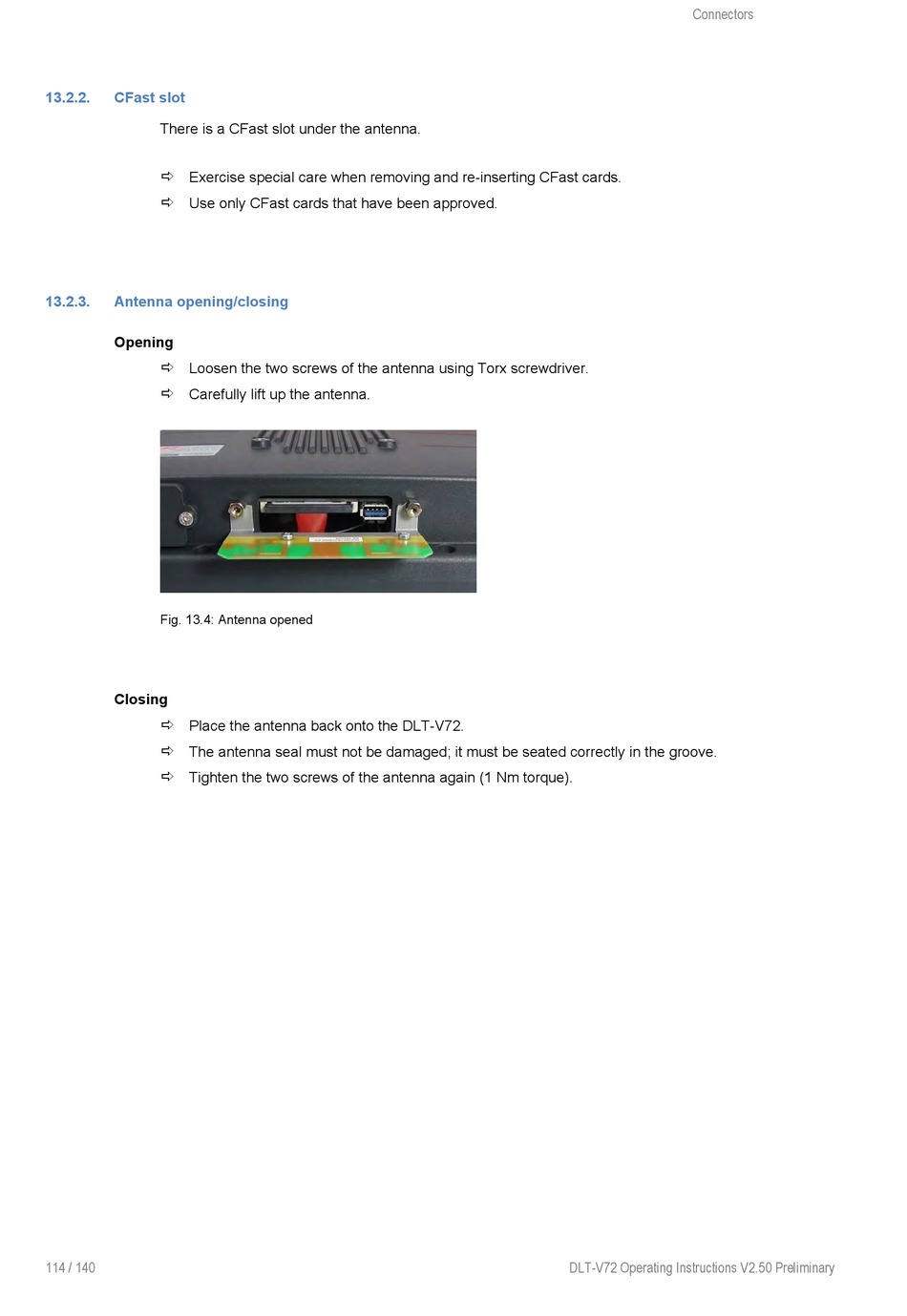

Fig. 13.4: Antenna opened

Closing
Place the antenna back onto the DLT-V72.

The antenna seal must not be damaged; it must be seated correctly in the groove.

 Tighten the two screws of the antenna again (1 Nm torque).
