Electrical installation, cable connection, cable cover
12.3.2.

Securing the ground using ring tongue to the ground bolt

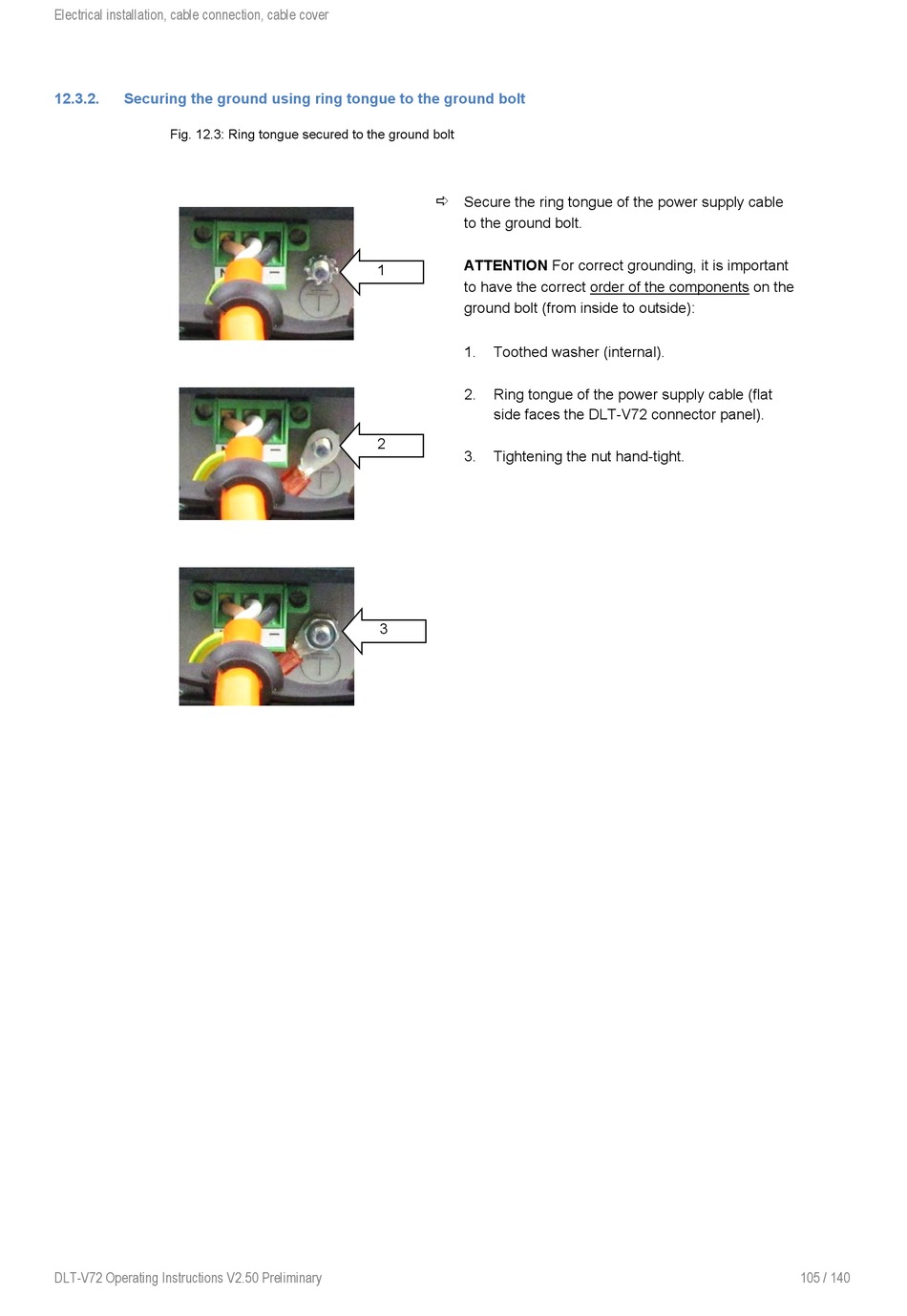

Fig. 12.3: Ring tongue secured to the ground bolt

DLT-V72 Operating Instructions V2.50 Preliminary
Secure the ring tongue of the power supply cable

to the ground bolt.
ATTENTION For correct grounding, it is important
1
to have the correct order of the components on the
ground bolt (from inside to outside):
1. Toothed washer (internal).
2. Ring tongue of the power supply cable (flat
side faces the DLT-V72 connector panel).
2
3. Tightening the nut hand-tight.
3
105 / 140
