Mechanical installation
Examples for RAM Mount Set mounting materials
RAM Mount Set short (arm length, 130 mm)
Fixing plate RAM Mount VESA
Mounting bracket VESA
Washer spring A6 DIN128 FSt galvan.
Cylinder-head screws int.hex DIN912 M6x16
V2A
Washer ISO 8738 (DIN 1440)-A6-A2
11.3.2.

Attach the mounting bracket

The housing of the DLT-V72 has holes provided for attaching an mounting bracket.

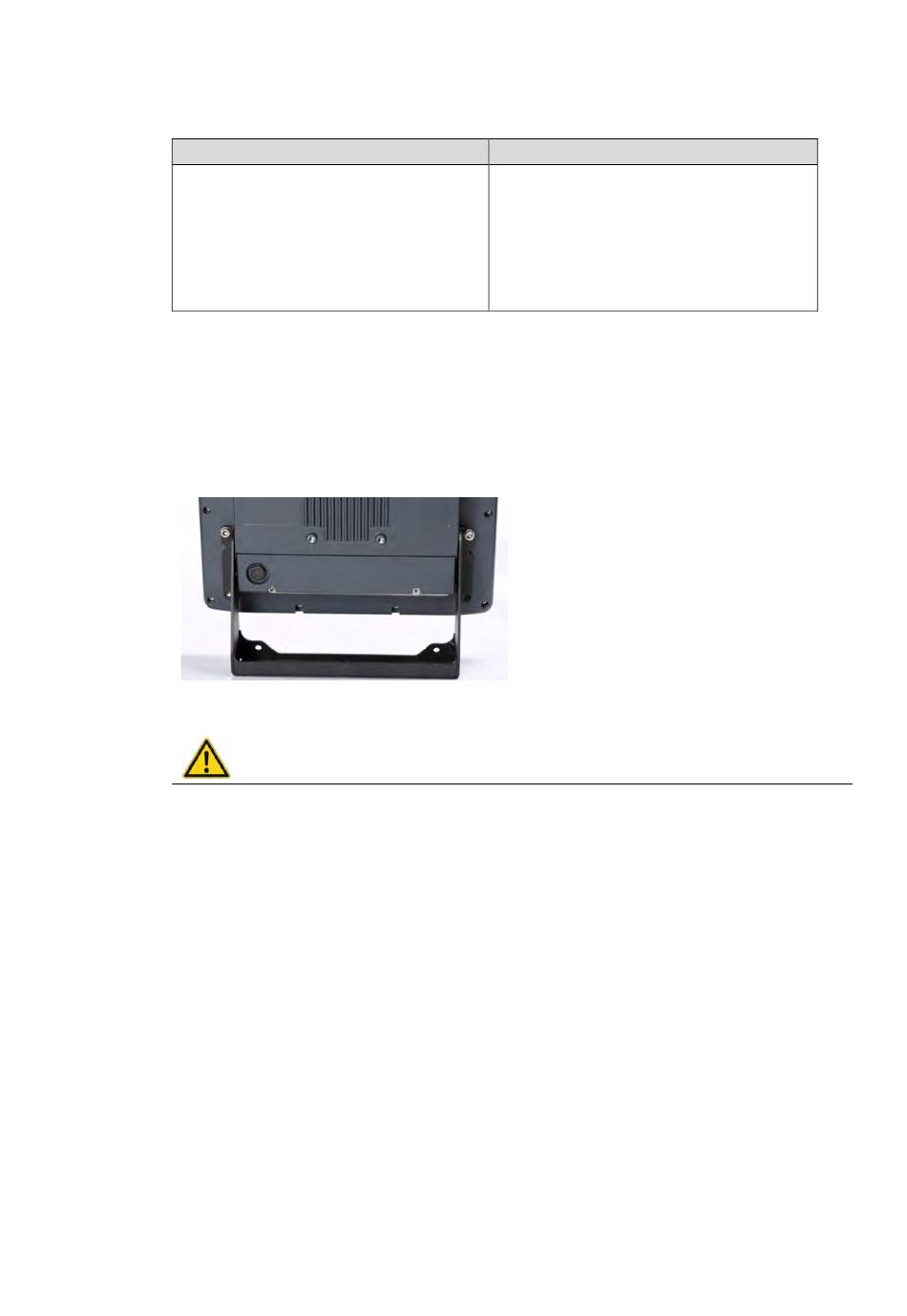

Fig. 11.2: Advantech mounting bracket on the DLT-V72

Risk of accident during vehicle operation if the mounting of the DLT-V72 becomes loose and
breaks while driving.
Please observe the following when attaching the Advantech mounting bracket:
− Special mechanical knowledge is required for correct mounting!
Use suitable mounting material (screws and washers).
−
− Observe the maximum screw-in depth of the holes of the DLT-V72: The recommended screw-in
depth of Dx1 always applies (screw diameter x 1).
DLT-V72 Operating Instructions V2.50 Preliminary
WARNING
RAM Mount Set long (arm length 215 mm)
Fixing plate RAM Mount VESA
Mounting bracket VESA
Washer spring A6 DIN128 FSt galvan.
Cylinder-head screws int.hex DIN912 M6x16
V2A
Washer ISO 8738 (DIN 1440)-A6-A2
Screw-in depth: M6 x 6 mm
Suitable mounting material:
Cylinder head screws DIN912 M6
−
Washers DIN 125 - A 6.4
−
