Connecting the USB, Ethernet and COM cables

NOTICE: Physical damage
Observe the following when connecting/removing external devices on the DLT-V72.
Only use accessories that have been tested and approved for the respective DLT-V72.

The DLT-V72 may not be connected to the power supply if external devices are being

connected/removed (not applicable for USB devices)
Otherwise considerable damage could be caused to both the DLT-V72 and the peripheral

devices.
Make sure that peripherals with their own power supply are either switched on at the same

time as the DLT-V72 or after the start of the DLT-V72.
 Otherwise, you must ensure that a backflow from the external device to the DLT-V72
cannot take place.
Only power up the DLT-V72 when all devices have been connected and the DLT-V72 has

been closed correctly (remember the cable cover!). Otherwise, you may damage the
DLT-V72.
12.4.1.

USB cable

Plug the required USB cable into the associated port.

 Fold open the respective round cable passage in the rubber seal.
 Insert the USB cable.
Secure each USB cables to the strain relief rail with cable clips and screws.

ATTENTION Tighten the mounting screws sufficiently but on no account pinch or crush the cable.

If you do, the cables may break or the cable insulation may get damaged.

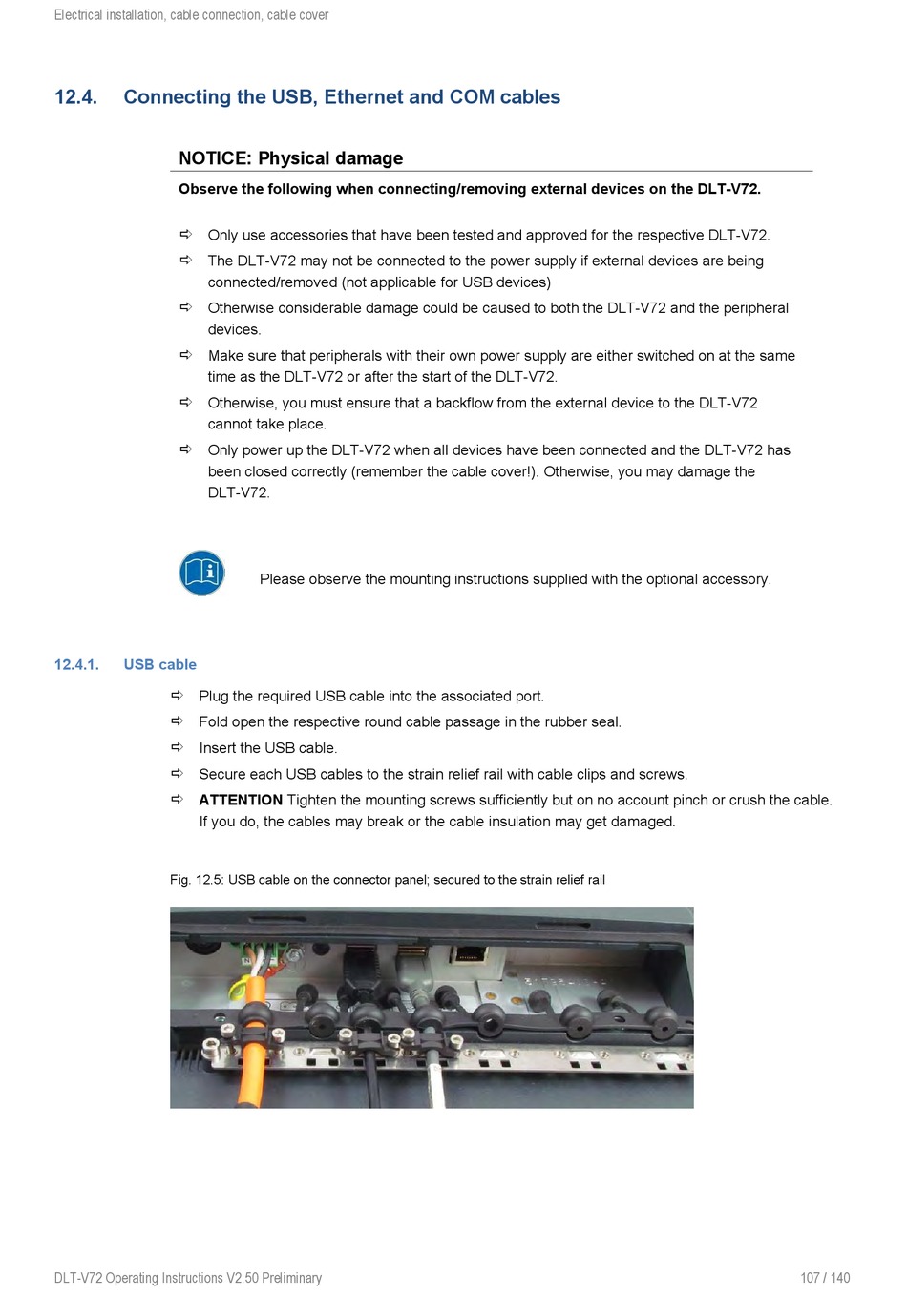

Fig. 12.5: USB cable on the connector panel; secured to the strain relief rail

DLT-V72 Operating Instructions V2.50 Preliminary
Please observe the mounting instructions supplied with the optional accessory.
