External Wwan Antenna 2G, 3G, 4G; Fig. 6.7: External 2G, 3G, 4G Wwan Antenna - Advantech-DLoG DLT-V72 Series Operating Instructions Manual

Technical data – Radio modules (all optional)
6.3.4.

External WWAN antenna 2G, 3G, 4G

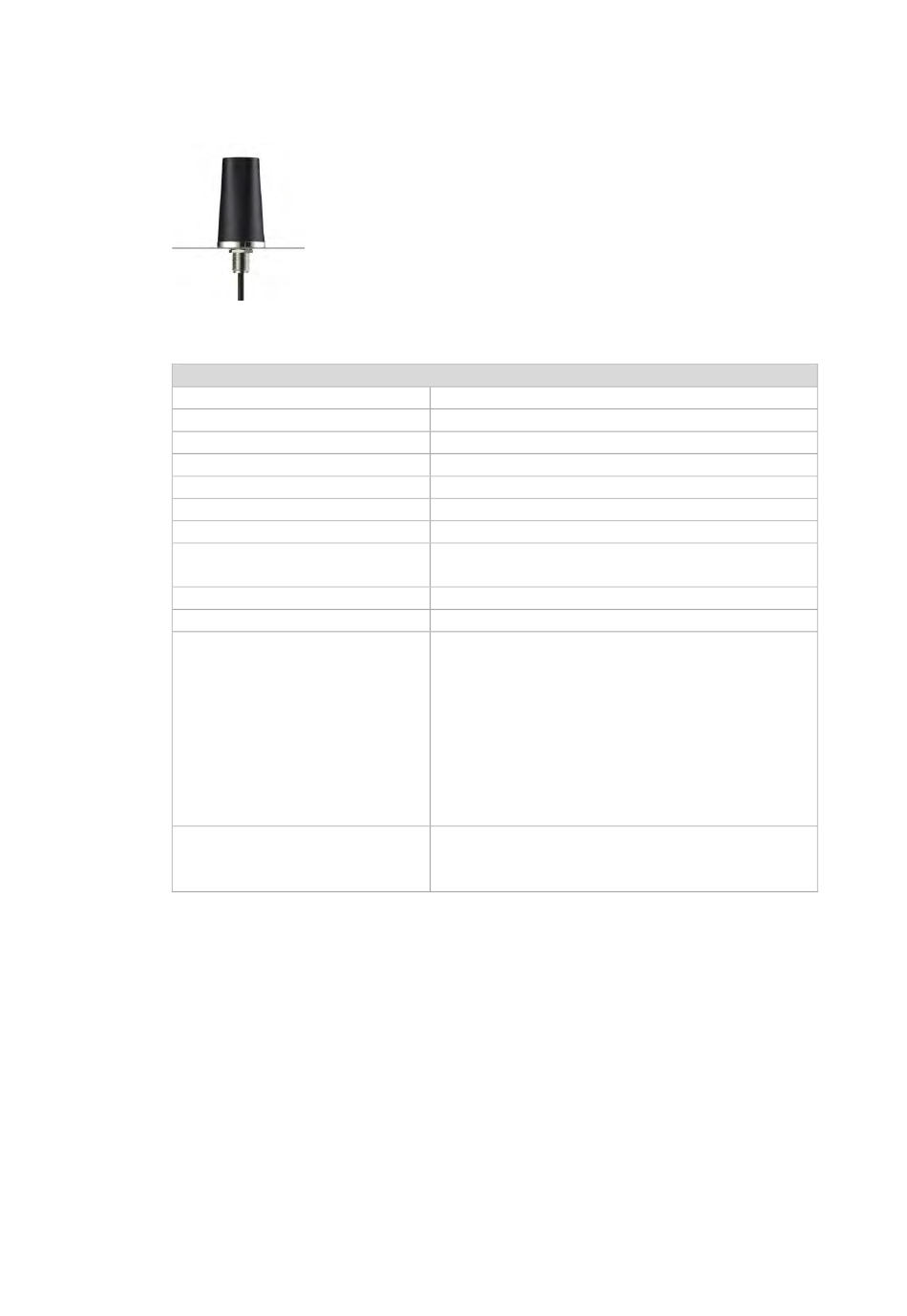

Fig. 6.7: External
Technical data
Application
Mounting location
Number of antennas
Type
Antenna gain
Impedance
Polarization
Dimensions
Cable length
IP protection
Max. transmitting power of antenna
Compatible WWAN card:
DLT-V72 Operating Instructions V2.50 Preliminary
2G, 3G, 4G
WWAN antenna
WWAN 2G, 3G, 4G cellular bands
For detached mounting, e.g. on the roof of the forklift
1
Dipole antenna
Max. 3.02 dBi
50 Ω
Vertical
Height 79.45 mm
Diameter 42 mm
3 m
IP67 and IP69K
Class 3 (23dBm±2dB) for LTE FDD
Class 3 (23dBm±2dB) for LTE TDD
Class 3 (24dBm+1/-3dB) for TD-SCDMA
Class 3 (24dBm+1/-3dB) for WCDMA
Class E2 (27dBm±3dB) for EDGE 850/900MHz
Class E2 (26dBm+3/-4dB) for EDGE
1800/1900MHz
Class 4 (33dBm±2dB) for GSM 850/900MHz
Class 1 (30dBm±2dB) for GSM 1800/1900MHz
USA: QUECTEL EC25A
Europe: QUECTEL EC25E
(see section 6.2.2 Available Radio cards)
