16.2.1.

Remove the integrated keyboard

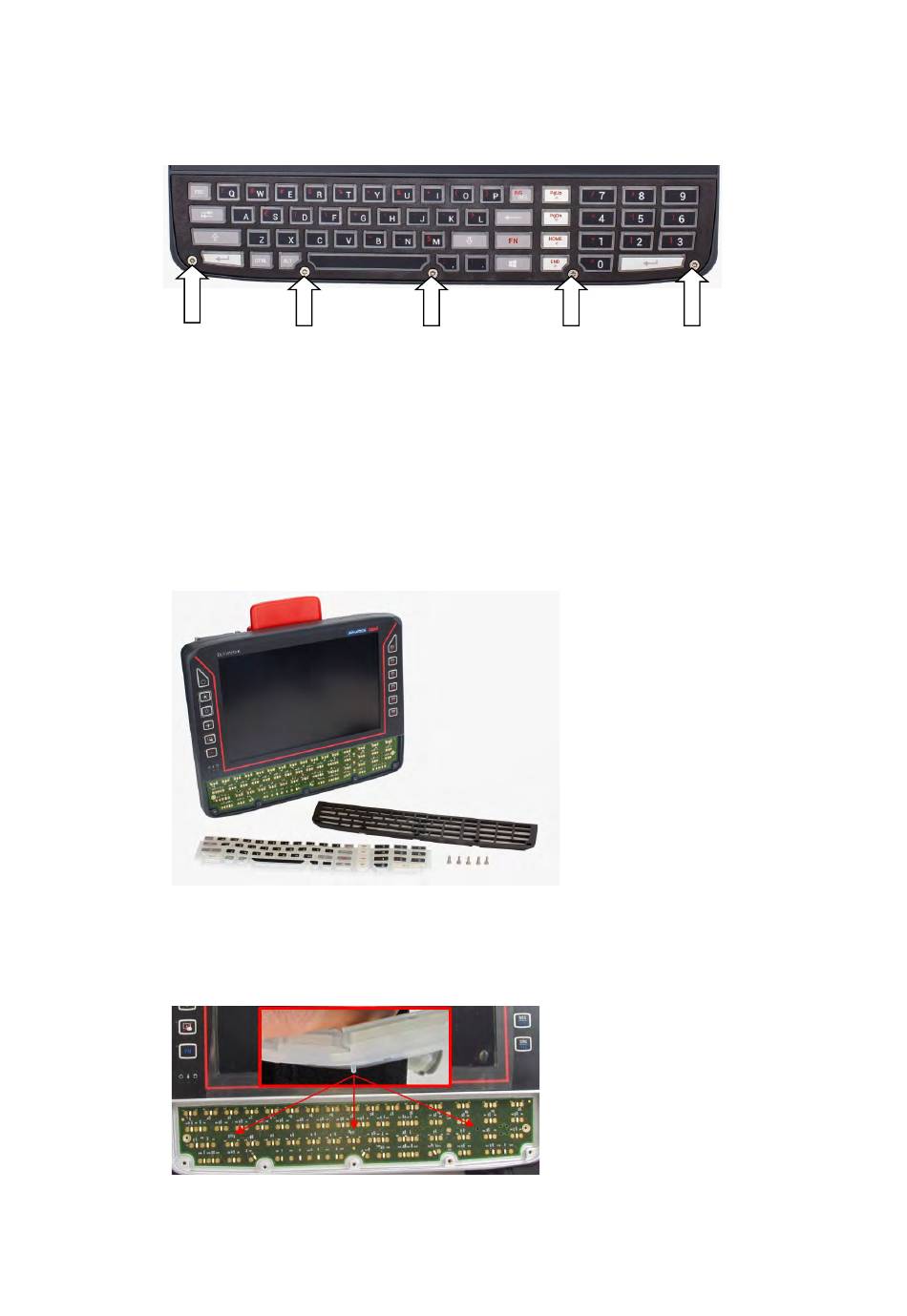

Fig. 16.1: Unscrew the mounting screws of the integrated keyboard

Use a TX10 screwdriver to loosen the 5 mounting screws of the integrated keyboard.
Carefully remove the keyboard grid; it will be used again later.
Carefully remove the silicon keyboard mat; make sure you do not damage the circuit board or
components on the circuit board.
16.2.2.

Attach the integrated keyboard

Fig. 16.2: DLT-V7210 K plus integrated keyboard components
Procedure

Fig. 16.3: Position at which the 3 nubs are inserted

128 / 140
Maintenance
Reuse:
Keyboard grid, black
New, replacement parts:
Silicon keyboard mat
5 x screws
ISO14580-m3x8 A2
Place the silicon keyboard mat on the
circuit board
DLT-V72 Operating Instructions V2.50 Preliminary
