Remove the integrated keyboard

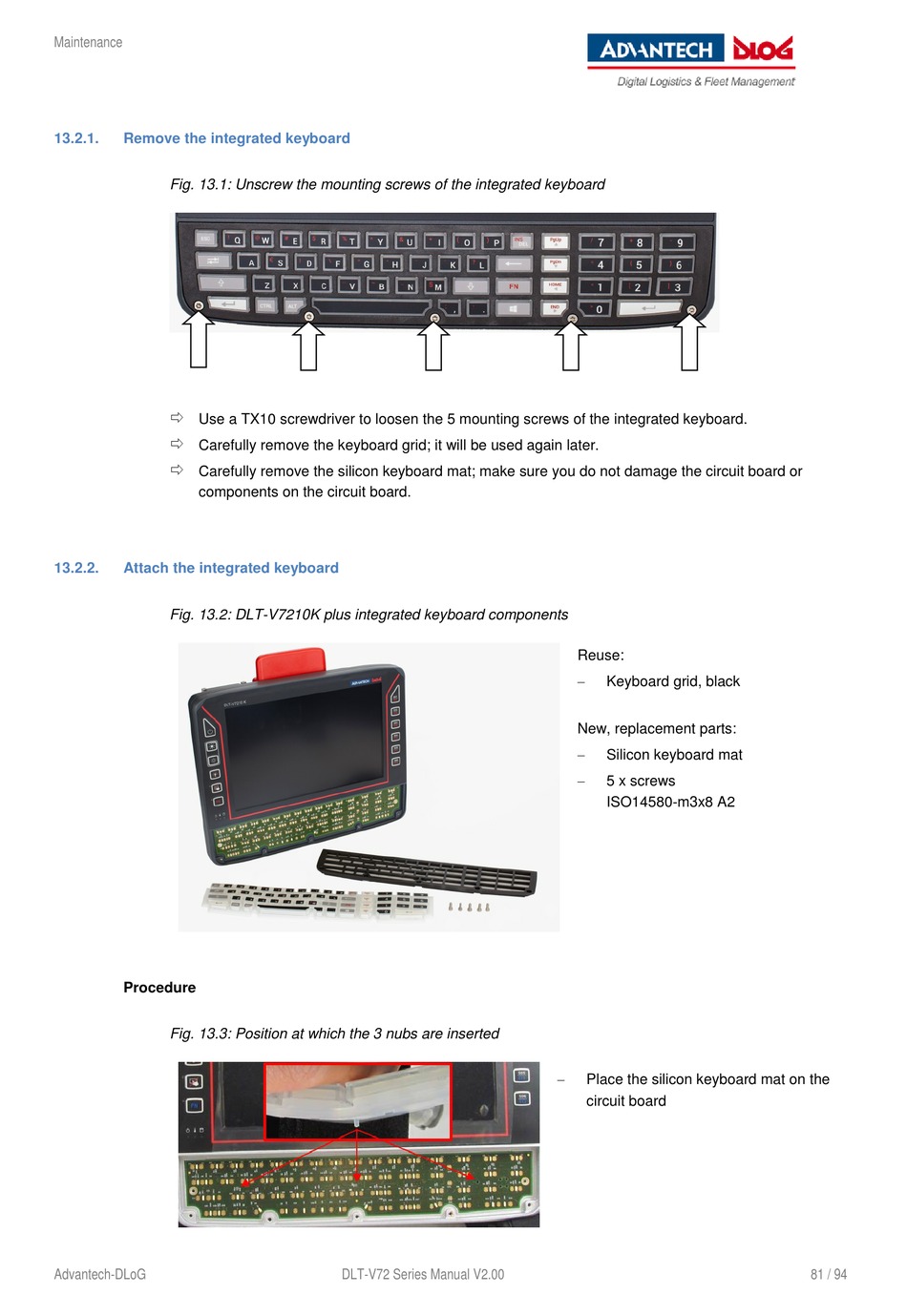

Fig. 13.1: Unscrew the mounting screws of the integrated keyboard


Use a TX10 screwdriver to loosen the 5 mounting screws of the integrated keyboard.

Carefully remove the keyboard grid; it will be used again later.

Carefully remove the silicon keyboard mat; make sure you do not damage the circuit board or
components on the circuit board.
13.2.2.

Attach the integrated keyboard

Fig. 13.2: DLT-V7210K plus integrated keyboard components

Procedure

Fig. 13.3: Position at which the 3 nubs are inserted

Advantech-DLoG DLT-V72 Series Manual V2.00
Reuse:
−
Keyboard grid, black
New, replacement parts:
−
Silicon keyboard mat
−
5 x screws
ISO14580-m3x8 A2
−
Place the silicon keyboard mat on the
circuit board
81 / 94
