9.2.2.

CFast slot

There is a CFast slot under the antenna cap.

Exercise special care when removing and re-inserting CFast cards.

Use only CFast cards that have been approved by Advantech-DLoG.
9.2.3.

Antenna cap opening/closing

Opening

Loosen the two screws of the antenna cap using Torx screwdriver.

Carefully lift up the antenna cap.

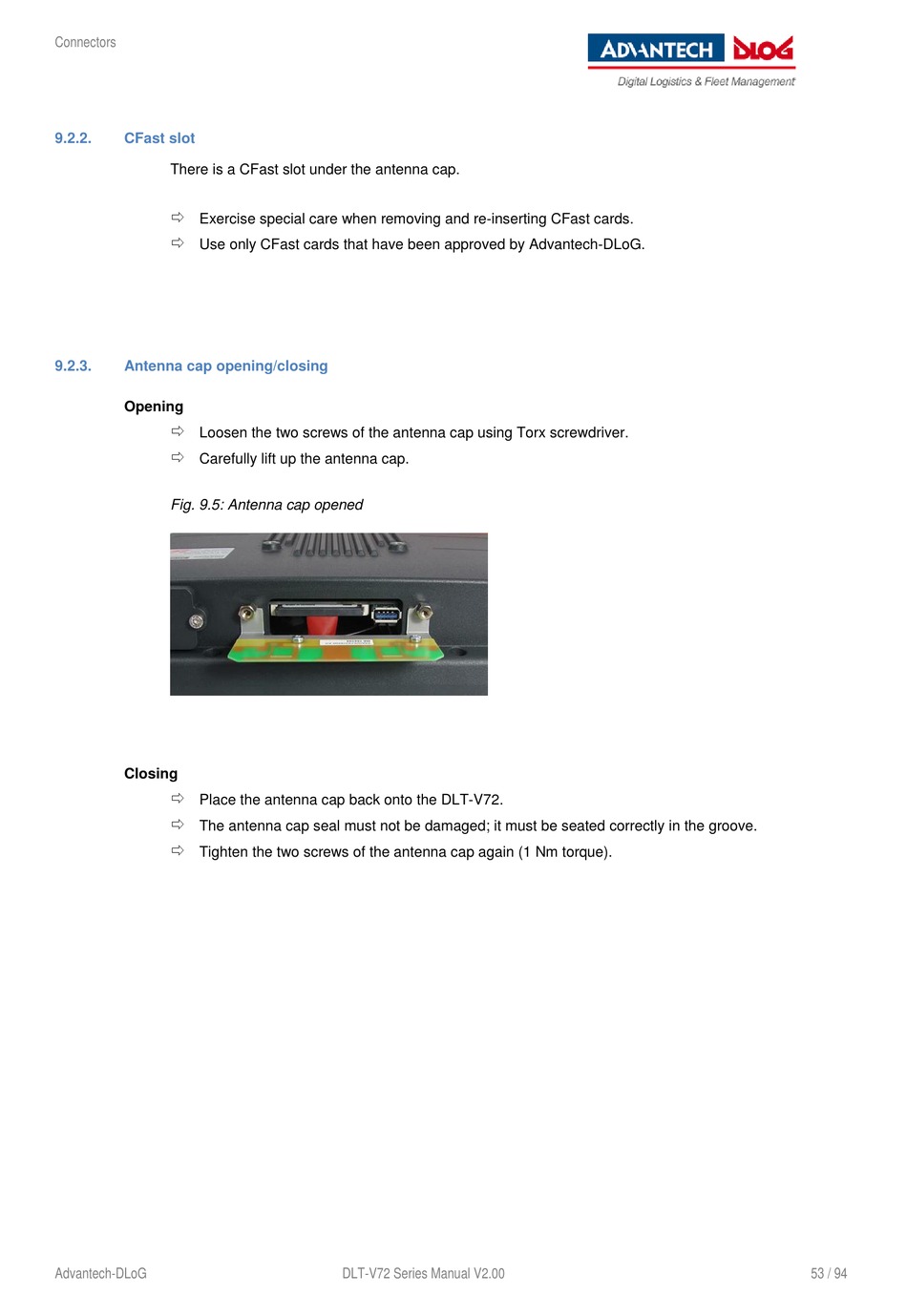

Fig. 9.5: Antenna cap opened

Closing

Place the antenna cap back onto the DLT-V72.

The antenna cap seal must not be damaged; it must be seated correctly in the groove.

Tighten the two screws of the antenna cap again (1 Nm torque).
