Appendices
Universal Stand
The Microscan Universal Stand is available in 4-inch, 6-inch, and 10-inch
flex models as well as a 7-1/4" extension kit.
4-inch, knob adjustable handle
6-inch, knob adjustable head and foot
10-inch flax neck, adjustable head
7-1/4-inch extension kit
MS-610 Adapter plate
4 inch Universal Stand
Mates to adaptor plate
Ball joint
.25 "
.635 cm
5.080 cm
.190" DIA.
.483 cm DIA.
4 PL
2.5 "
6.350 cm
A-12
MS-610 Scanner User's Manual
98-200008
98-200007
98-200006
98-200024
98-200011
6 inch Universal Stand
Adjust
knob
4 "
10.16 cm
6 "
15.24 cm
.25 "
.635 cm
2 "
7-1/4-inch Universal
Extension Kit
Bottom
7.25"
18.42 cm
1.250 "
3.175 cm
2.858 cm

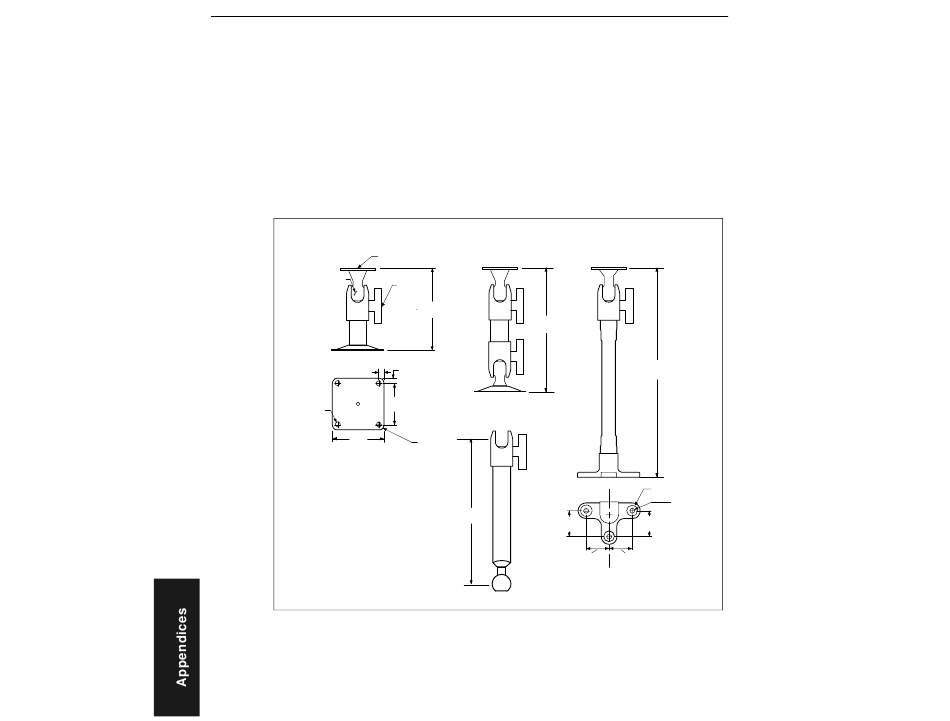

Figure A-9 Universal Stand

10 inch Flex Neck
Universal Stand
10 "
25.40 cm
.50 " DIA.1.270 cm
DIA. 3 Pl.
.20 " DIA.
.508 cm DIA.
3 PL
1.250 "
3.175 cm
1.125 " 1.125 "
2.858 cm
C
L
