Appendix F — Optional Equipment
Mounting Plate Kit
Part Number: 98-500002
To mount the scanner with the mounting plate, "pair up" the mounting
plate's four inner screw holes to the scanner's mounting holes (see figure 3-
1 in chapter 3, "Installation") and attach plate to scan head. Next, mount
entire assembly using the four outer holes on the plate.
2.1"
(53.34 mm)

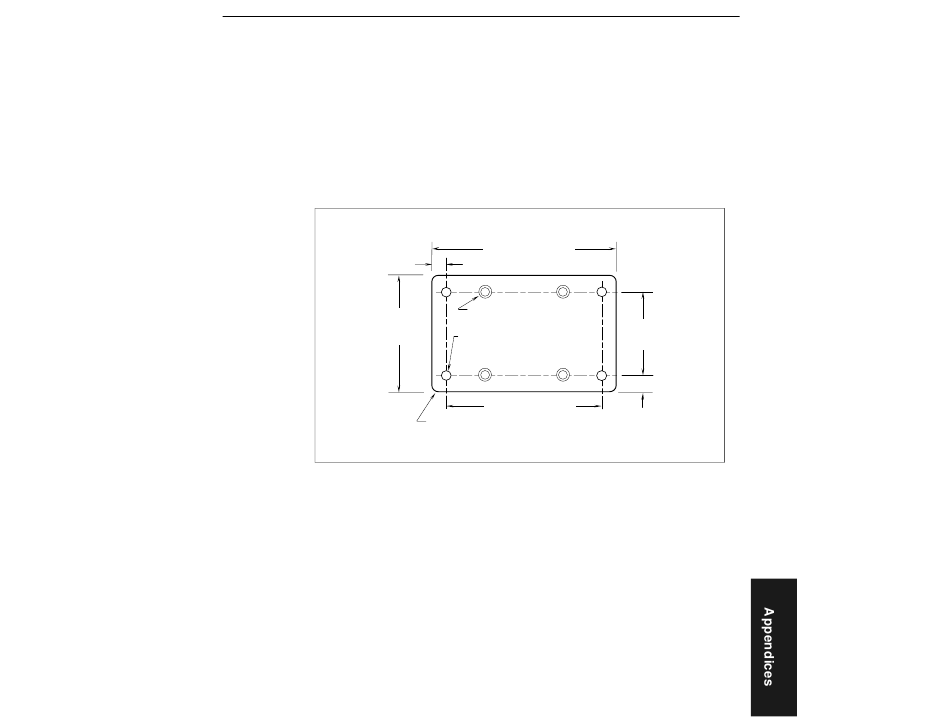

Figure A-8 MS-520 Bottom Mounting Plate (not full size)

MS-610 Scanner User's Manual
3.3" (83.82 mm)
0.25" (6.35 mm)
Four countersunk holes, for
attaching plate to scan head
Four 0.156" (3.96 mm) Diameter
holes, used to mount plate to any
suitable surface
2.8" (71.12 mm)
Thickness of Plate =
0.1" (2.54 mm)
Optional Equipment
1.5"
(38.1 mm)
0.3"
(7.62 mm)
A-11
