Appendix A — Scanner Specifications
Mechanical
Length: 2.92" (74.2 mm) Width: 2.25" (57.2 mm)
Height: 2.25" (57.2 mm) Weight: 9 oz. (257 g)
2.25" (57.2 mm)
laser beam exit
photodetector
window
2.25"
(57.2 mm)
1.31"
(33.3 mm)
Front view
NOTE: Do not block
photodetector
window.
2.92" (74.2 mm)
light collection
2.25"
(57.2 mm)
Side view
Side view
2.25" (57.2 mm)
Power LED (green)
Status LED (red)
2.25"
(57.2 mm)

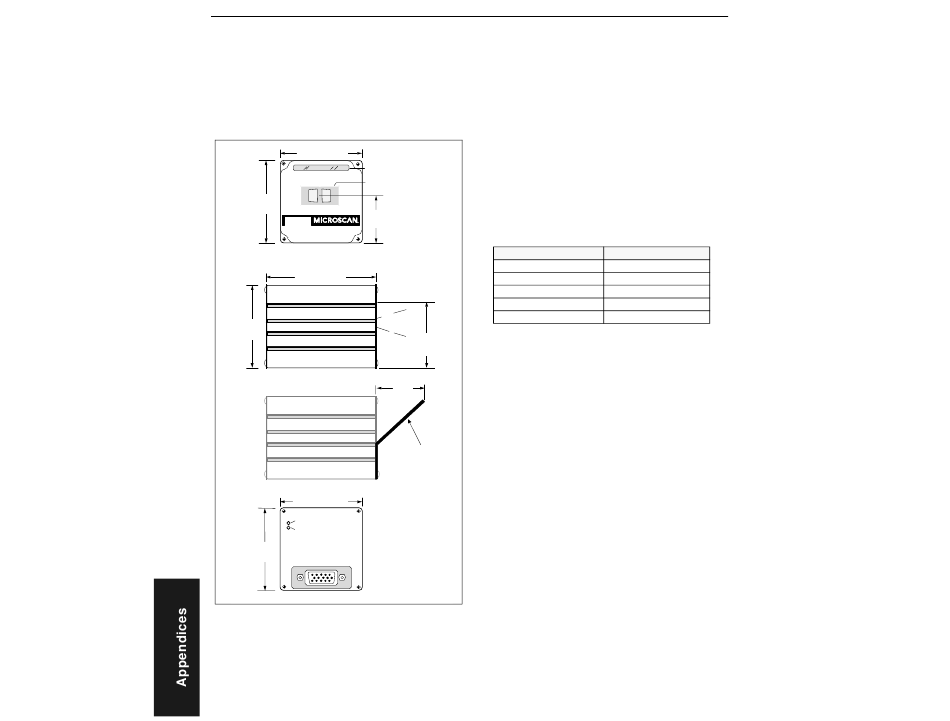

Figure A-1 Dimensions

Back view
Figure A-1 Mechanical Dimensions
Light Source
Type: Semiconductor Laser Diode
Beam Spot: Round or oval
A-2
MS-610 Scanner User's Manual
Output Wavelength: 670 nm nominal (visible),
780 nm nominal (infrared)
Safety Class: CDRH Class II (visible), CDRH Class I (infrared)
Operating Life: 50,000 hours @ 25°C (visible),
400,000 hours @ 25°C (infrared)
Scanning Parameters
Mirror Type: Rotating 10-faceted polygon
Scan Rate: 200 scans per second
Scan Width Angle: 60°
Raster Image: 10 raster scan lines over a 2-degree arc
(or 0.24 inch raster at 6-inch distance)
Scan Range
2 inches (50.8 mm)
4 inches (101.6 mm)
6 inches (152.4 mm)
laser beam exit
8 inches (203.2 mm)
10 inches (254 mm)
±18°
angle
2"
Communications
( 50.8 mm)
Interface: RS-232, RS-422, RS-485
±0.05"
Baud Rates: 300, 600, 1200, 2400, 4800, 9600, 19.2K
Parity: Odd, Even, None
1.32
Stop Bits: 1, 2
Data Bits: 7, 8
Code Types
Code 39, Codabar, Interleaved 2 of 5, UPC/EAN, Code 128
Right angle
mirror
Protocols
accessory
Point-to-Point, Point-to-Point w/RTS/CTS, Point-to-Point
w/XON/XOFF, Point-to-Point w/RTS/CTS & XON/XOFF, Poll-
ing Mode D, Multidrop, User Defined, User Defined Multidrop
Environment
Operating Temperature: 32° to 104°F (0° to 40°C) (visible),
32° to 113°F (0° to 45°C) (infrared)
Storage Temperature: –58° to 158°F (–50° to 70°C)
Humidity: Up to 95% (non-condensing)
Ambient Light Immunity: • 450 foot candles (indoor: fluo-
rescent, incandescent, mercury vapor, sodium vapor)
• 2000 foot candles (soft outdoors)
I/O Connector
Connector: High-density, 15-pin, D-subminiature socket
wired as DTE (RS-232, RS-422, RS-485)
Raster Height
0.10 inch (2.54 mm)
0.17 inch (4.32 mm)
0.24 inch (6.1 mm)
0.31 inch (7.87 mm)
0.38 inch (9.65 mm)
