Installation
3 Installation
3.1 Mechanical Dimensions
3
3
3.1.1 Overview

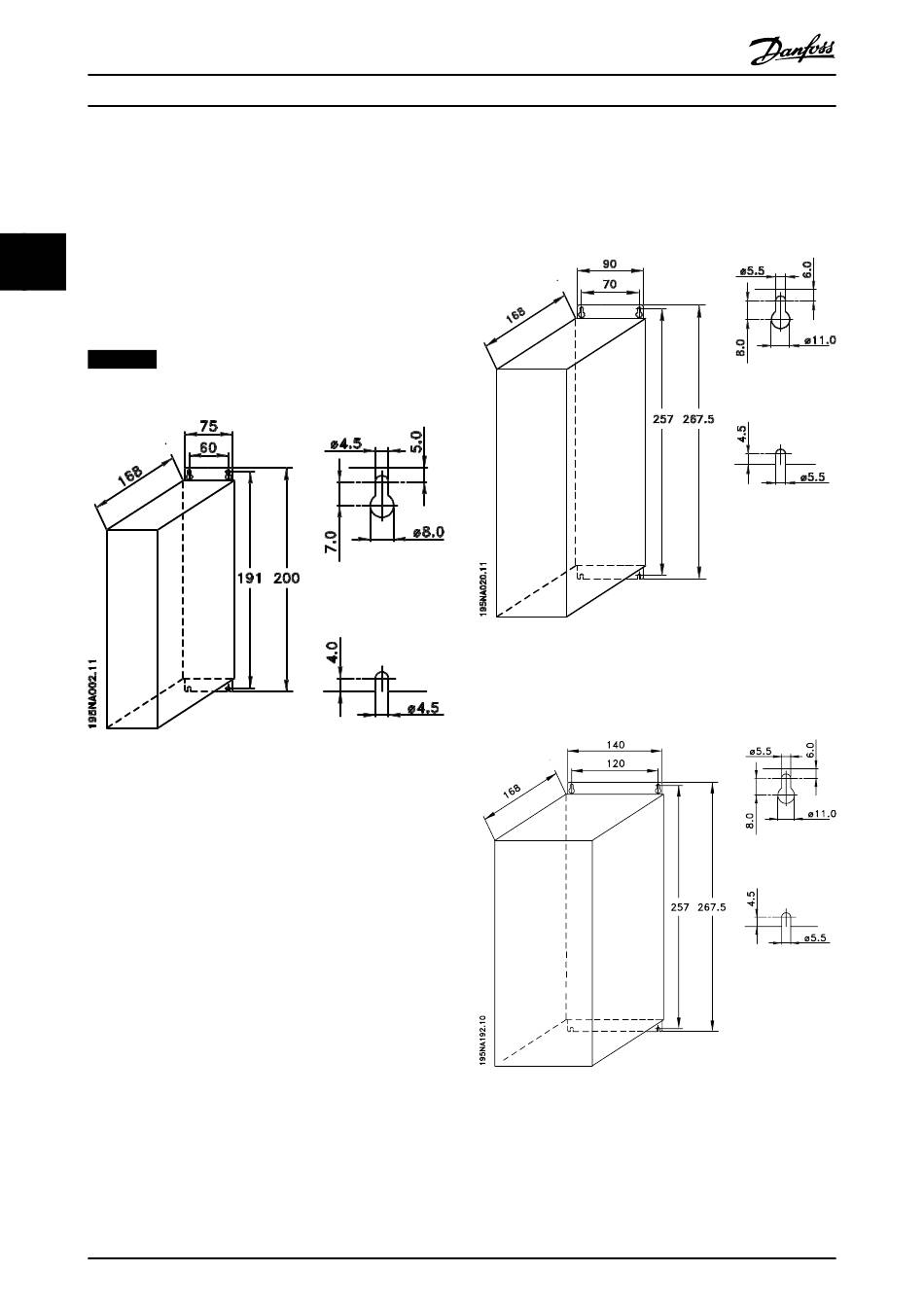

Illustration 3.1 shows the mechanical dimensions. All
dimensions are in mm.
NOTICE
All filter options must be vertically mounted.
Illustration 3.1 VLT 2803-2815 200-240 V
VLT 2805-2815 380-480 V
34
Design Guide
3.1.2 Enclosure B
Illustration 3.2 VLT 2822 200-240 V
VLT 2822-2840 380-480 V
3.1.3 Enclosure C
Illustration 3.3 VLT 2822 220-240 V, PD2
VLT 2840 200-240 V
VLT 2855-2875 380-480 V
Danfoss A/S © Rev. May/2014 All rights reserved.
MG27E402
