Introduction to VLT 2800
1 1

1.13 LCP 2 Control Unit

1.13.1 Introduction

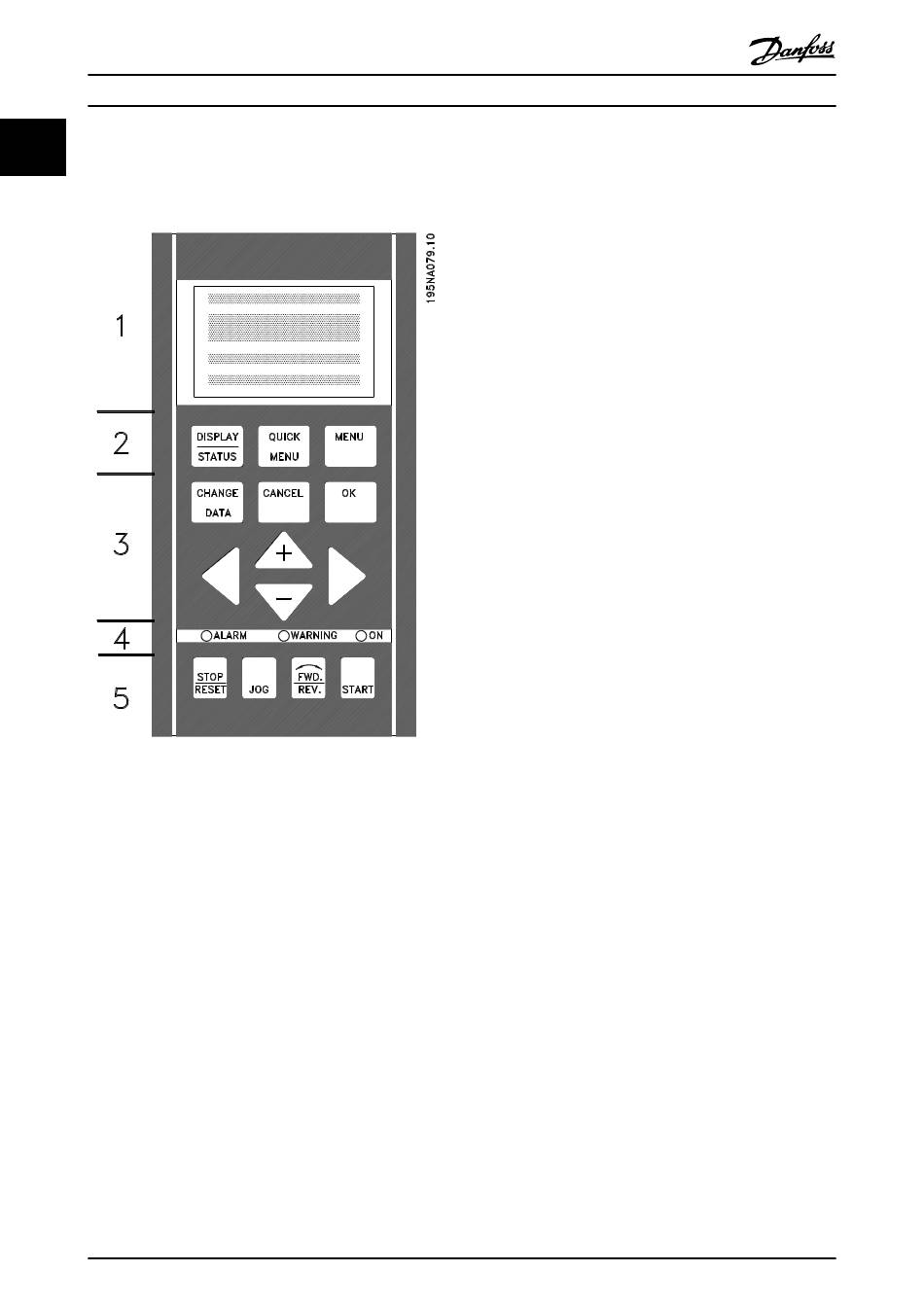

Illustration 1.24 LCP 2 Control Unit
The frequency converter can be used with an LCP control
unit (local control panel - LCP 2). The LCP 2 control unit
provides a complete interface for operation and
programming of the frequency converter. The LCP 2
control unit can be attached up to 3 m from the frequency
converter, e.g. on a front panel, using an accessory kit.
The control panel is divided into 5 functional groups:
1. Display
2. Keys used to change the display function
3. Keys used to change the programme parameters
4. Indicator lights
5. Local control keys
All data is displayed in a 4-line alphanumeric display,
which, during normal operation, continuously displays 4
items of operating data and 3 operating modes. During
programming, all information needed for quick, efficient
parameter set-up of the frequency converter is displayed.
As a supplement to the display, there are 3 indicator lights
26
Design Guide
for voltage (On), warning (Warning) and alarm (Alarm). All
frequency converter parameter set-ups can be changed
immediately from the control panel, unless this function
has been programmed as [1] Locked via parameter 018 Lock
for data changes.

1.13.2 Control Keys for Parameter Set-up

The control keys are divided into functions. The keys
between the display and the indicator lights are used for
parameter set-up, including selection of the display's view
mode during normal operation.
[Display/Status]
[Display/Status] is used to select the display's view mode
or to change back to Display mode from either Quick
Menu or Menu mode.
[Quick Menu]
[Quick Menu] provides access to the parameters used in
the Quick Menu. It is possible to switch between Quick
Menu and Menu mode.
[Menu]
[Menu] gives access to all parameters. It is possible to
switch between Menu mode and Quick Menu.
[Change Data]
Press [Change Data] to change a parameter that has been
selected either in Menu mode or Quick Menu.
[Cancel]
[Cancel] is used if a change to the selected parameter is
not to be implemented.
[OK]
Press [OK] to confirm a change to a selected parameter.
[+]/[-]
Press [+/-] to select parameters and change parameter
values.
These keys are also used in Display mode to switch
between the readouts of operating variables.
[◄][►]
Press [◄][►] to select parameter group and to move the
cursor when changing a numerical value.
