Introduction to VLT 2800
1 1

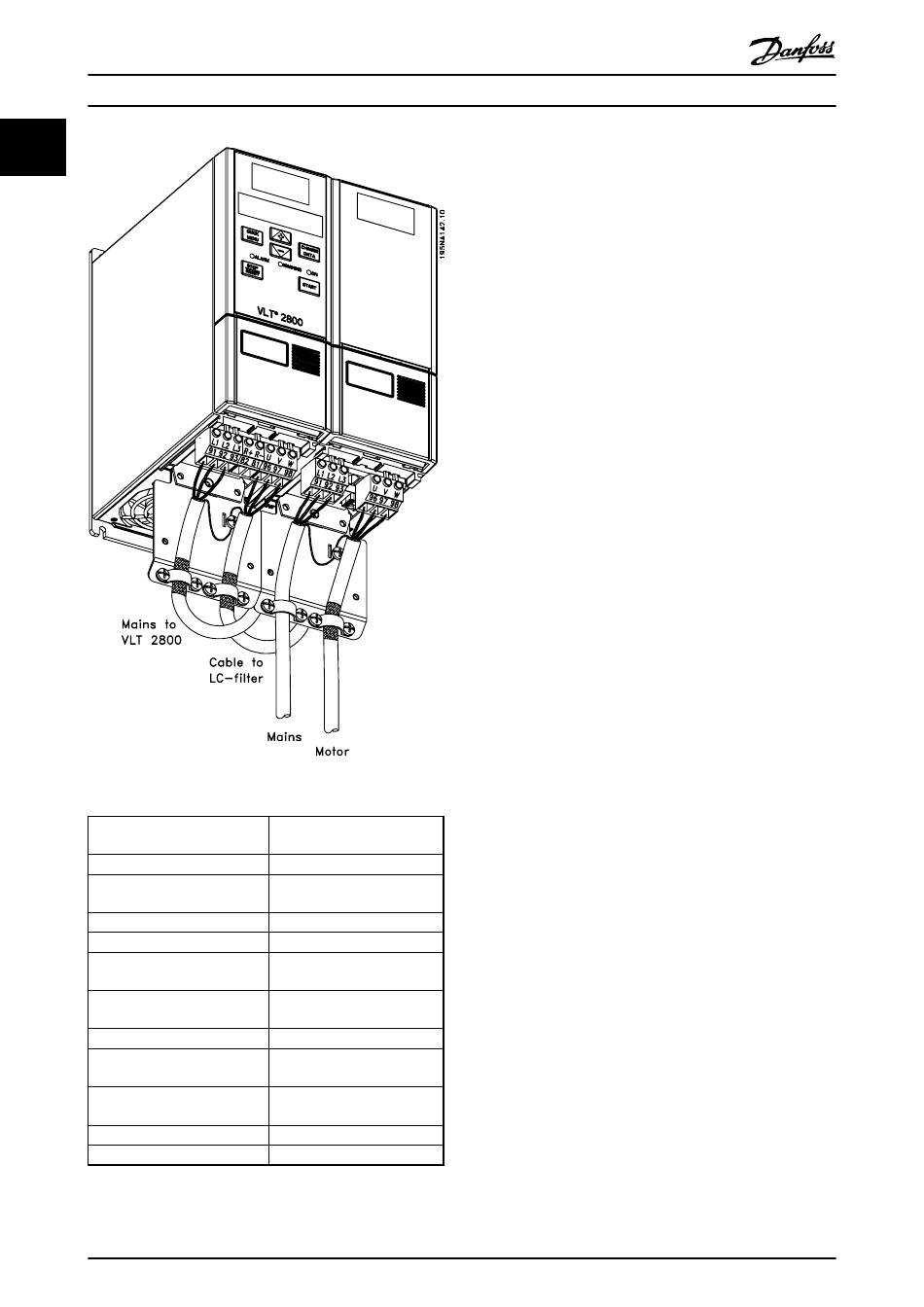

Illustration 1.7 Connection Example for RFI 1B/LC Filter
Maximum cable length
(screened/armoured) 380-480 V
Enclosure
Maximum rated current
Maximum voltage
Maximum voltage to ground
Minimum distance between VLT
and RFI 1B/LC filter
Minimum distance above and
below RFI 1B/LC filter
Mounting
Dimensions 195N3100 4.0 A
HxWxD (mm)
Dimensions 195N3101 9.1 A
HxWxD (mm)
Weight 195N3100 4.0 A
Weight 195N3101 9.1 A
Table 1.6 Technical Data for VLT 2803–2875 RFI 1B/LC filter
14
Design Guide
25 m (At 1A: 50 m)
IP20
4.0 (Order no.: 195N3100); 9.1
(Order no.: 195N3101)
480 V AC
300 V AC
Side-by-side
100 mm
Vertical mounting only
200x75x168
267.5x90x168
2.4 kg
4.0 kg
