Introduction to VLT 2800
P
motor
R
min
R
rec
P
b, cont.
Therm. relay
Ordering no.
Cable cross-section
Table 1.10 Definition of Variables

1.12 LCP Operation

1.12.1 Control Unit

On the front of the frequency converter there is a control
panel.

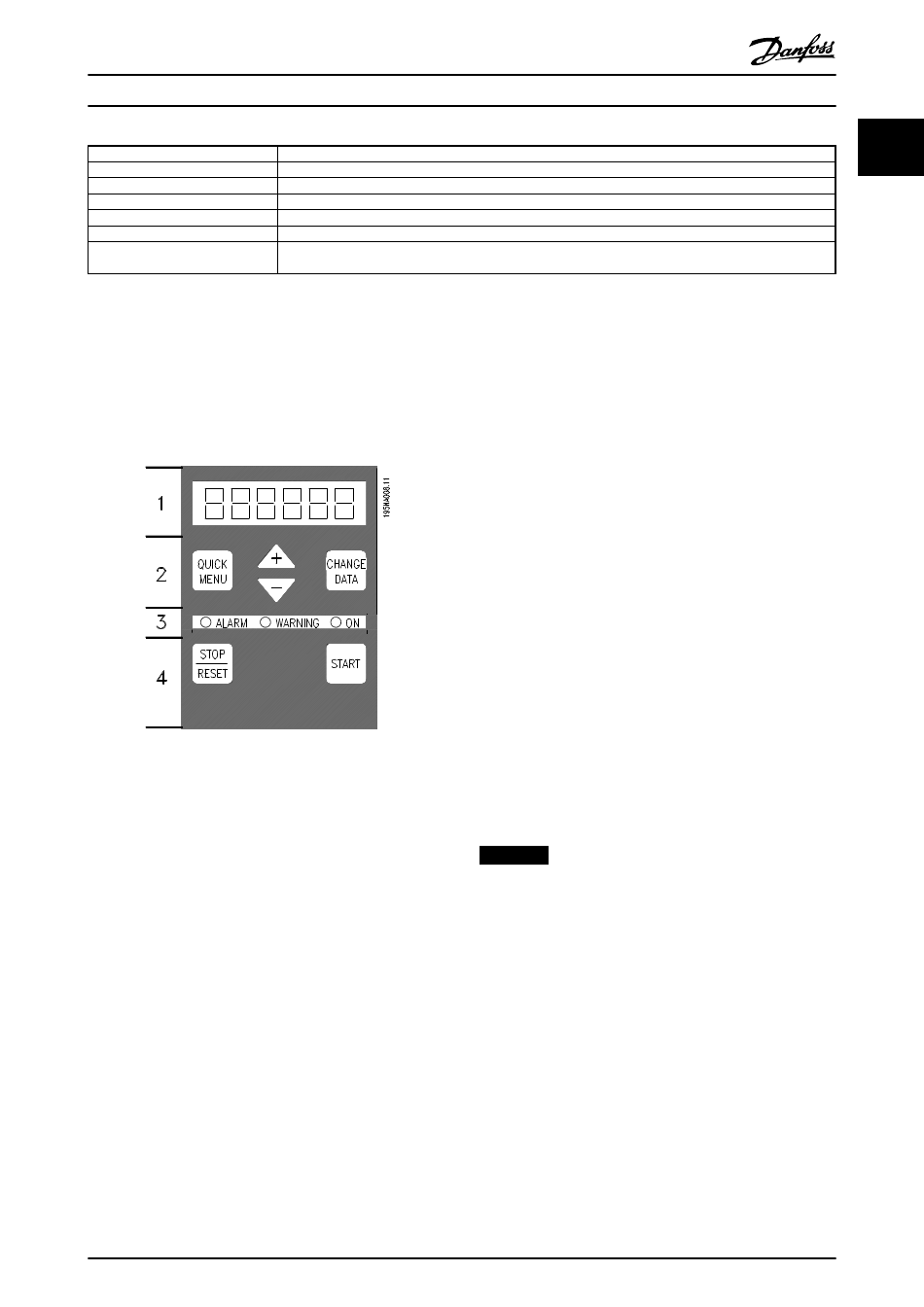

Illustration 1.13 Control Panel
The control panel is divided into 4 function groups:
1. 6-digit LED display.
2. Keys for changing parameters and shifting display
function.
3. Indicator lights.
4. Keys for local operation.
All displays of data are in the form of a 6-digit LED display
capable of showing one item of operating data contin-
uously during normal operation. As a supplement to the
display, there are 3 indicator lights for indication of mains
connection (On), warning (Warning) and alarm (Alarm).
Most of the frequency converter's parameter set-ups can
be changed immediately via the control panel, unless this
function has been programmed as [1] Locked via parameter
018 Lock for data changes.
MG27E402
Design Guide
Rated motor size for VLT type
Minimum permissible brake resistor
Recommended brake resistor (Danfoss)
Continuous braking power
Brake current setting of thermal relay
Ordering numbers for Danfoss brake resistors
Recommended minimum value based upon PVC insulated copper cable, 30 °C ambient temperature
with normal heat dissipation
Danfoss A/S © Rev. May/2014 All rights reserved.

1.12.2 Control Keys

[Quick Menu]
[Quick Menu] allows access to the parameters used for the
Quick Menu.
The [Quick Menu] key is also used if a change to a
parameter value is not to be implemented.
See also [Quick menu] + [+].
[Change Data]
[Change Data] is used for changing a setting.
The [Change Data] key is also used for confirming a
change of parameter settings.
[+]/[-]
[+]/[-] are used for selecting parameters and for changing
parameter values.
These keys are also used in Display mode for selecting the
display of an operating value.
[Quick Menu] and [+]
The [Quick Menu] + [+] keys must be pressed at the same
time to give access to all parameters. See Menu mode.
[Stop/Reset]
[Stop/Reset] is used for stopping the connected motor or
for resetting the frequency converter after a trip.
Can be selected as [1] Active or [0] Not active via parameter
014 Local stop/reset. In Display mode, the display flashes if
the stop function is activated
NOTICE
If the [Stop/Reset] key is set at [0] Not active in
parameter 014 Local stop/reset, and there is no stop
command via the digital inputs or serial communication,
the motor can only be stopped by disconnecting the
mains voltage to the frequency converter.
[Start]
[Start] is used for starting the frequency converter. It is
always active, but the [START] key cannot override a stop
command.
