Installation

3.3.8 Use of EMC Compliant Cables

To comply with requirements for EMC immunity of the control cables and EMC emissions for the motor cables, use
screened/armoured cables.
The ability of a cable to reduce the amount of ingoing and outgoing radiation of electric noise depends on the transfer
3 3 impedance (Z
lower Z is more effective than a screen with a higher Z
T
Z is rarely stated by cable manufacturers, but it is often possible to estimate Z
T
design of the cable.
Z can be assessed on the basis of the following factors:
T
•
The contact resistance between the individual screen conductors.
•
Screen coverage, i.e. the physical area of the cable covered by the screen. Is often stated as a percentage and
should be no less than 85%.
•
The screen type, i.e. braided or twisted pattern. A braided pattern or closed pipe is recommended.

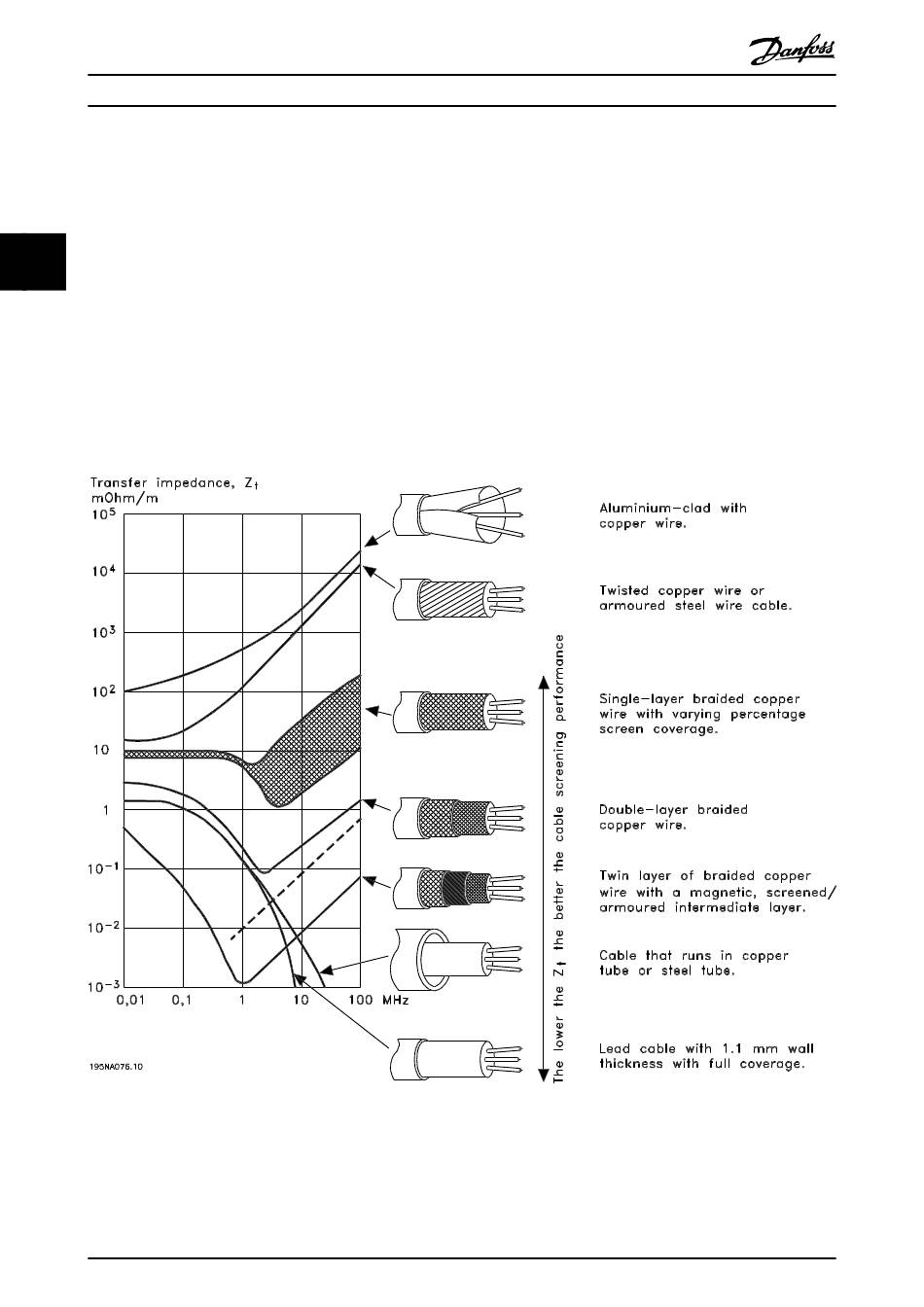

Illustration 3.18 Cable Comparison
42
). The screen of a cable is normally designed to reduce the transfer of electric noise, and a screen with a
T
Danfoss A/S © Rev. May/2014 All rights reserved.
Design Guide
.
T
by looking at and assessing the physical
