The function ensures that the frequency converter
automatically adjusts the switching frequency between f
and f
min sw, max
shown in Illustration 5.2.
5 5

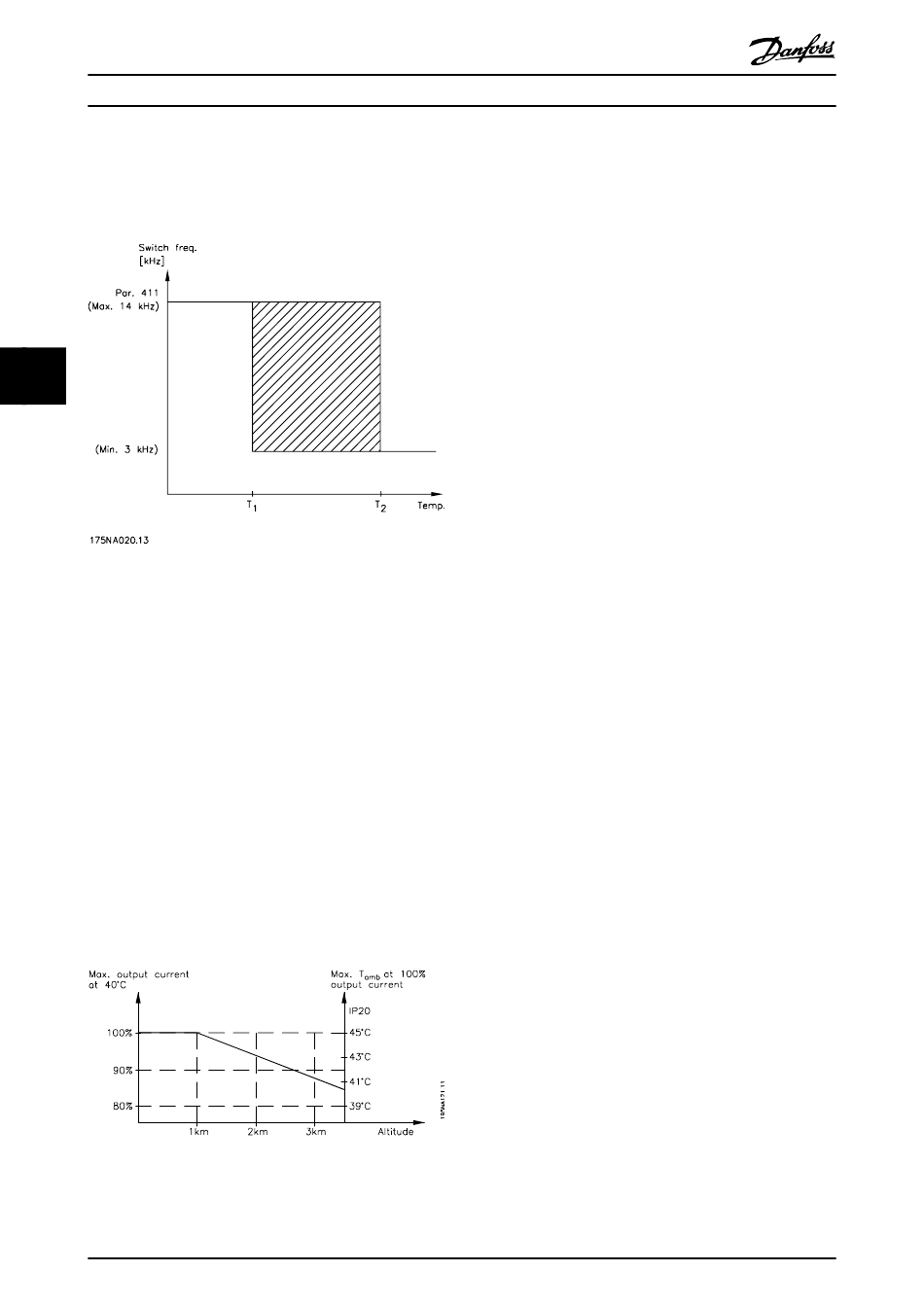

Illustration 5.2 Switching Frequencies vs. Temperature
When an LC filter is used, the minimum switching
frequency is 4.5 kHz.

5.1.10 Derating for Air Pressure

Protective Extra Low Voltage (PELV) requirements stated in
IEC 61800-5-1 are not fulfilled at altitudes above 2000 m
(6562 ft.). Contact Danfoss for further information.
Below 1000 m derating is not necessary.
Above 1000 m, derate the ambient temperature (T
maximum output current (I
diagram in Illustration 5.3:
1. Derating of output current versus altitude at
T
AMB
2. Derating of max. T
output current.
Illustration 5.3 Derating for Air Pressure
130
(parameter 411 Switching frequency), as
) in accordance with the
MAX
=maximum 45 °C.
versus altitude at 100%
AMB
