Installation

3.1.4 Enclosure D

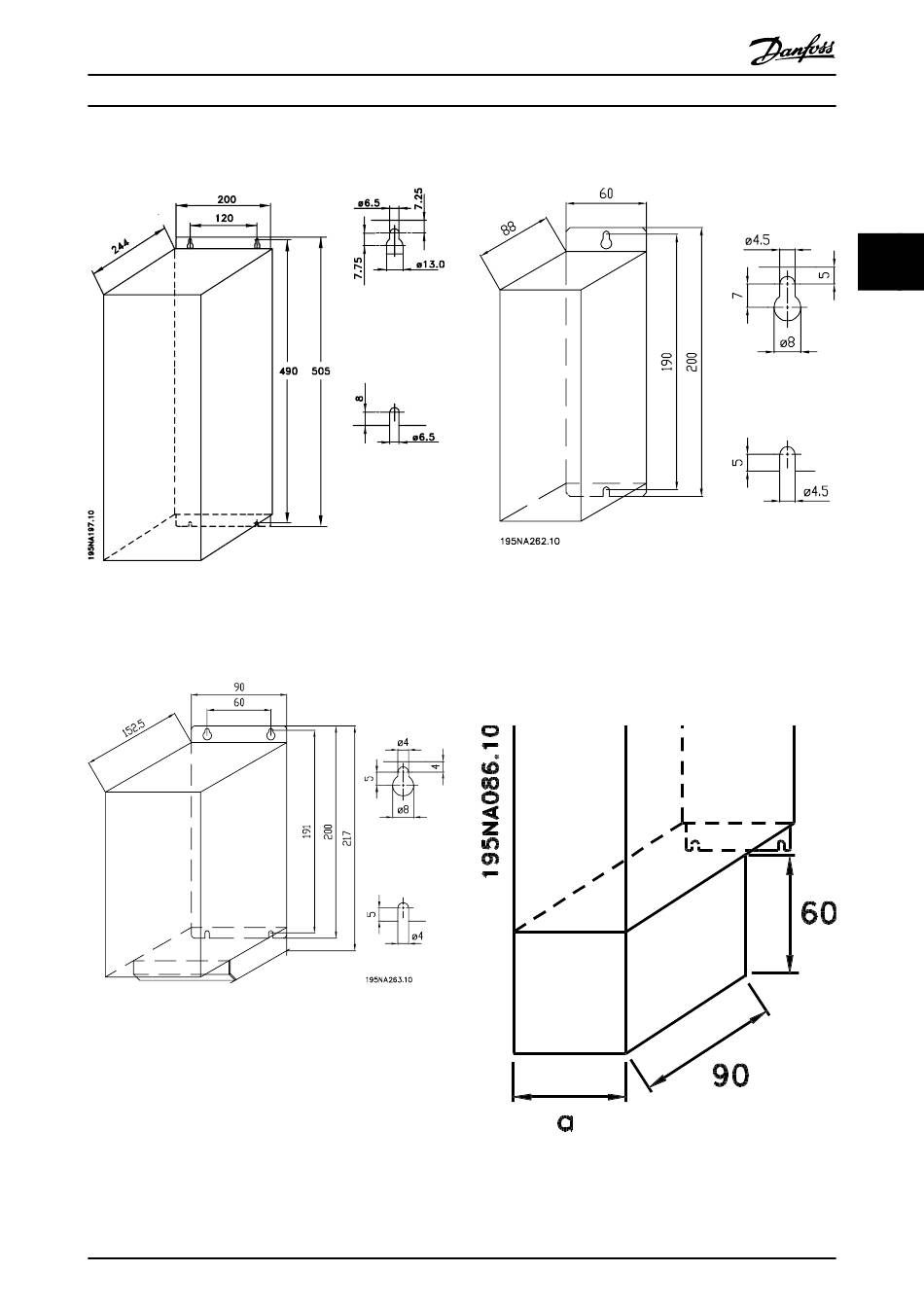

Illustration 3.4 VLT 2840, 220-240 V, PD2
VLT 2880-2882, 380-480 V

3.1.5 Motor Coils (195N3110)

Illustration 3.5 Motor Coils (195N3110)
MG27E402
Design Guide

3.1.6 RFI 1B Filter (195N3103)

Illustration 3.6 RFI 1B Filter (195N3103)

3.1.7 Terminal Cover

Illustration 3.7 shows the dimensions for NEMA 1 terminal
covers for VLT 2803-2875.
Dimension a depends on the unit type.
Illustration 3.7 Dimensions for NEMA 1 Terminal Cover
