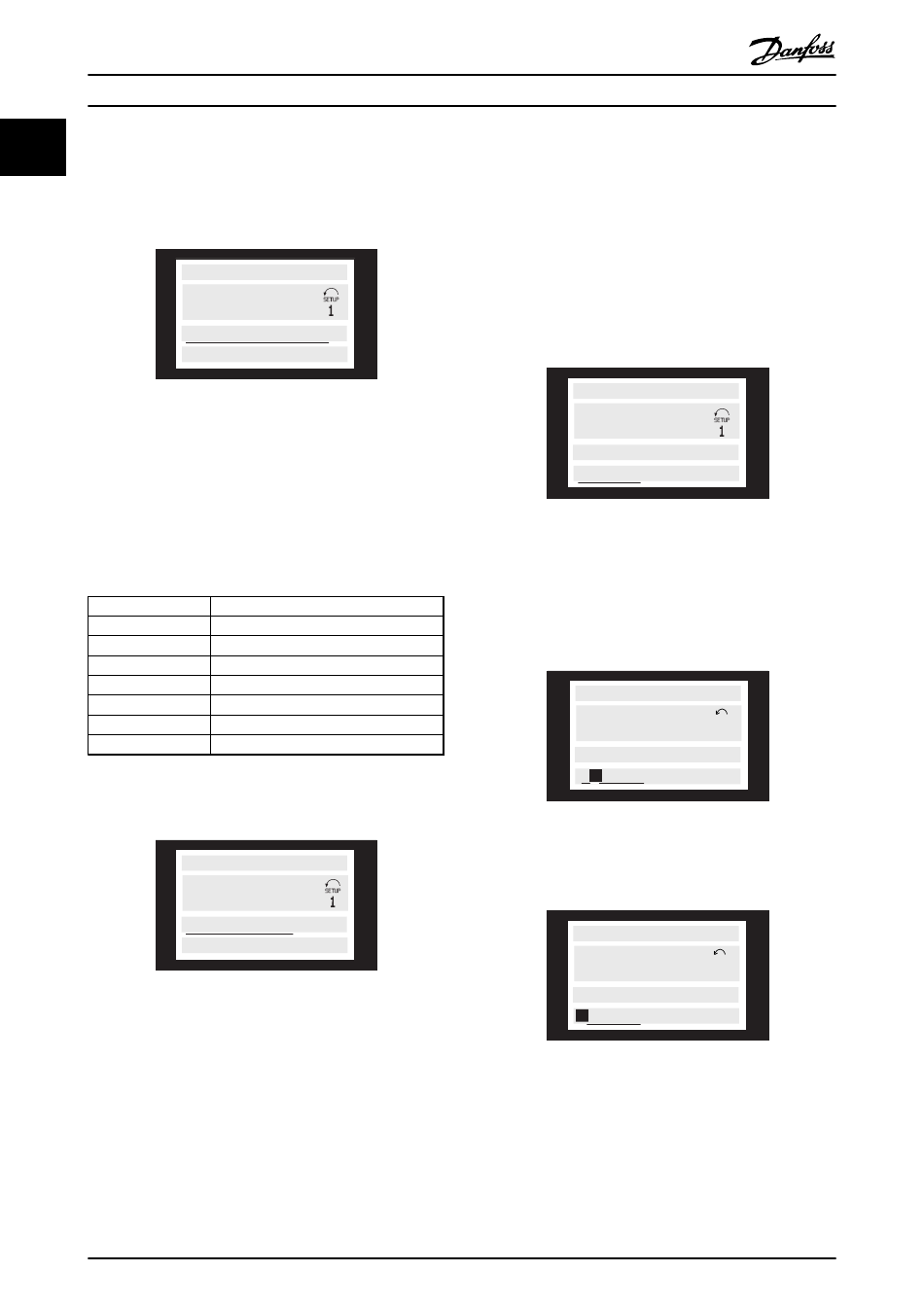

1.13.9 Parameter Selection

Press [Menu] to start the Menu mode, which produces the
following readout in the display:
Illustration 1.34 Menu Mode Display
Line 3 in the display shows the parameter group number
and name.
In Menu mode, the parameters are divided into groups.
Selection of parameter group is effected using the [< >]
keys.
The following parameter groups are accessible:
Group no.
0
1
2
3
4
5
6
When the required parameter group is selected, select the
parameter with the [+]/[ -] keys:
Illustration 1.35 Select a Parameter
The third line of the display shows the parameter number
and name, while the status/value of the selected
parameter is shown in line 4.
30
Design Guide
FREQUENCY
50.0 Hz
0 KEYB.&DISPLAY
Parameter group
Operation & Display
Load & Motor
References & Limits
Inputs & Outputs
Special functions
Serial communication
Technical functions
FREQUENCY
50.0 Hz
001 LANGUAGE
ENGLISH
