3.4.17 Relay Connection

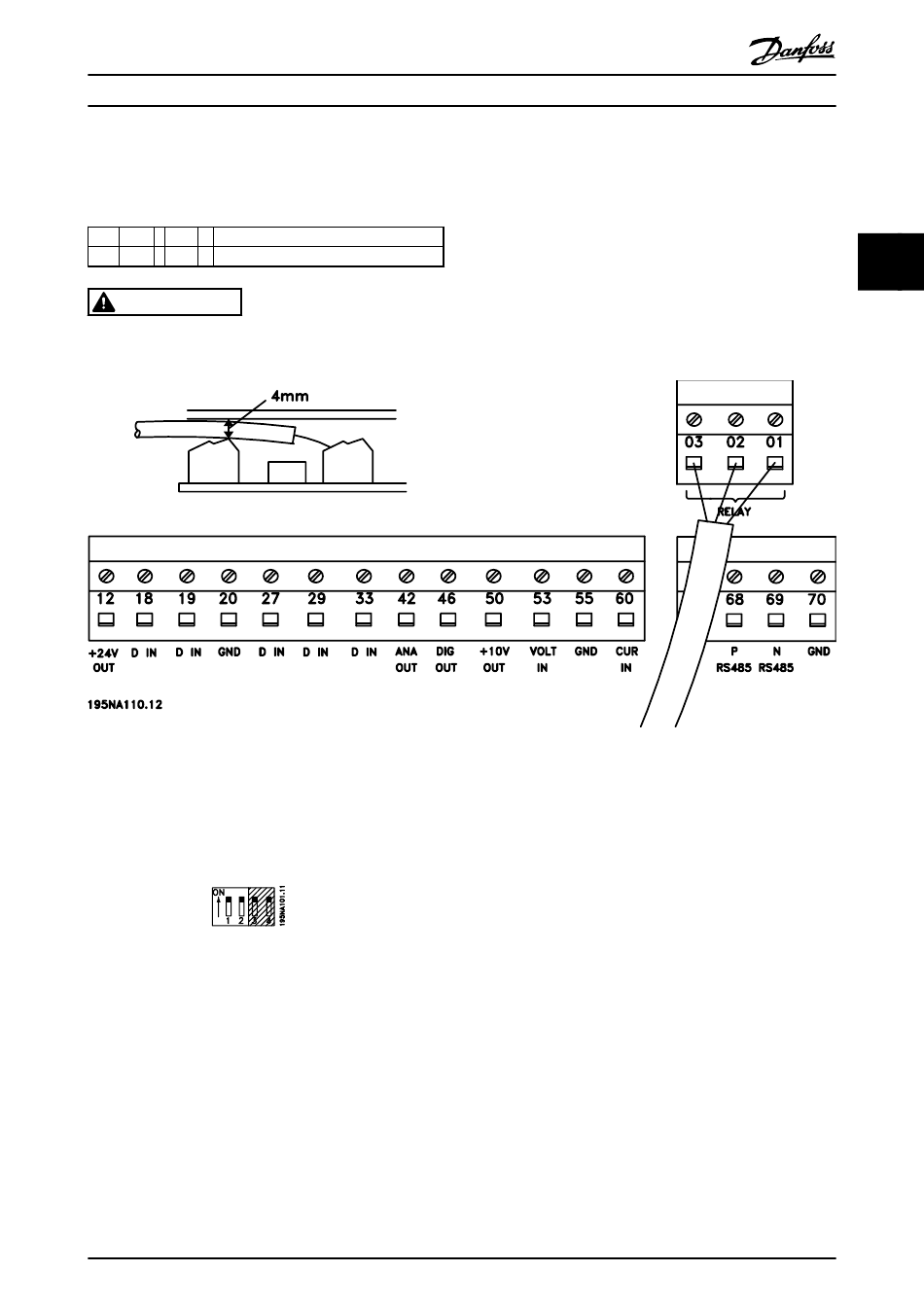

See parameter 323 Relay output for programming of relay output.
Nr. 01 - 02 1 - 2 make (normally open)
01 - 03 1 - 3 break (normally closed)
WARNING
The cable jacket for the relay must cover the first row of control card terminals. Otherwise the galvanic isolation (PELV)
cannot be maintained, which could result in equipment damage and personal injury. Maximum cable diameter is 4 mm.
Illustration 3.35 Relay Connection

3.4.18 Switches 1-4

The dip switch is only on the control card with Profibus DP
communication.
The switch position shown is the factory setting.
Switches 1 and 2 are used as cable termination for the
RS-485 interface. If the frequency converter is located as
the first or last unit in the bus system, switches 1 and 2
must be ON. On the remaining frequency converters,
switches 1 and 2 must be OFF.
Switches 3 and 4 are not applied.
MG27E402
Design Guide
3.4.19 VLT Motion Control Tool MCT 10
Connection to terminals 68-70 or Sub D:
•
•
•
Danfoss A/S © Rev. May/2014 All rights reserved.
Set-up Software
PIN 3 GND
PIN 8 P-RS 485
PIN 9 N-RS 485
