2 - Introduction
2.7

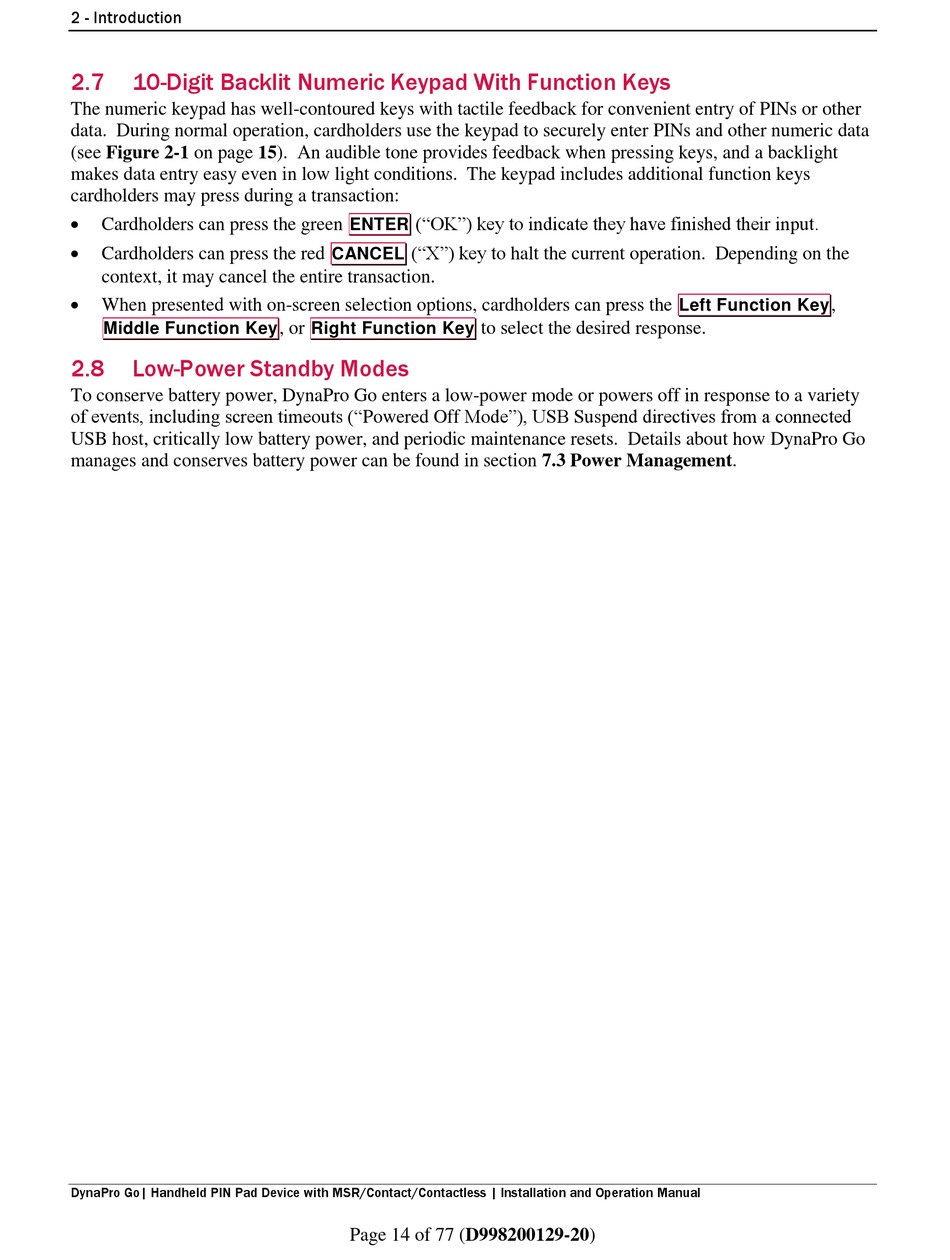

10-Digit Backlit Numeric Keypad With Function Keys

The numeric keypad has well-contoured keys with tactile feedback for convenient entry of PINs or other
data. During normal operation, cardholders use the keypad to securely enter PINs and other numeric data
(see Figure 2-1 on page 15). An audible tone provides feedback when pressing keys, and a backlight
makes data entry easy even in low light conditions. The keypad includes additional function keys
cardholders may press during a transaction:

Cardholders can press the green

Cardholders can press the red
context, it may cancel the entire transaction.

When presented with on-screen selection options, cardholders can press the
Middle Function Key
2.8

Low-Power Standby Modes

To conserve battery power, DynaPro Go enters a low-power mode or powers off in response to a variety
of events, including screen timeouts ("Powered Off Mode"), USB Suspend directives from a connected
USB host, critically low battery power, and periodic maintenance resets. Details about how DynaPro Go
manages and conserves battery power can be found in section 7.3 Power Management.
DynaPro Go| Handheld PIN Pad Device with MSR/Contact/Contactless | Installation and Operation Manual
("OK") key to indicate they have finished their input.
ENTER
("X") key to halt the current operation. Depending on the
CANCEL
, or
Right Function Key
Page 14 of 77 (D998200129-20)
to select the desired response.
,
Left Function Key
