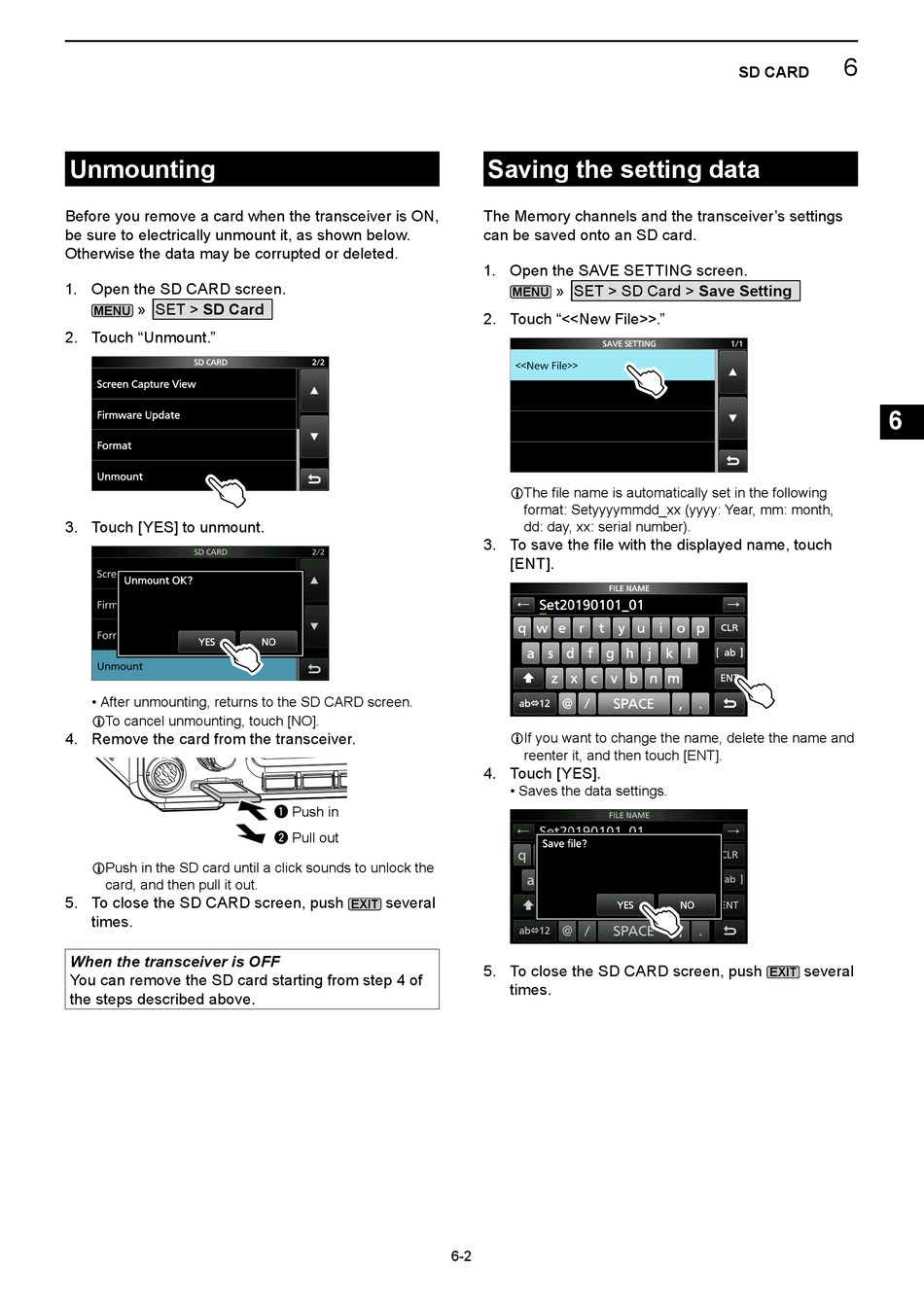

Unmounting

Before you remove a card when the transceiver is ON,
be sure to electrically unmount it, as shown below.
Otherwise the data may be corrupted or deleted.
1. Open the SD CARD screen.
» SET > SD Card
MENU
2. Touch "Unmount."
3. Touch [YES] to unmount.
• After unmounting, returns to the SD CARD screen.
LTo cancel unmounting, touch [NO].
4. Remove the card from the transceiver.
L Push in the SD card until a click sounds to unlock the
card, and then pull it out.
5. To close the SD CARD screen, push
times.
When the transceiver is OFF
You can remove the SD card starting from step 4 of
the steps described above.
q Push in
w Pull out
several
EXIT
Saving the setting data
The Memory channels and the transceiver's settings
can be saved onto an SD card.
1. Open the SAVE SETTING screen.
» SET > SD Card > Save Setting
MENU
2. Touch "<<New File>>."
L The file name is automatically set in the following
format: Setyyyymmdd_xx (yyyy: Year, mm: month,
dd: day, xx: serial number).
3. To save the file with the displayed name, touch
[ENT].
L If you want to change the name, delete the name and
reenter it, and then touch [ENT].
4. Touch [YES].
• Saves the data settings.
5. To close the SD CARD screen, push
times.
6-2
