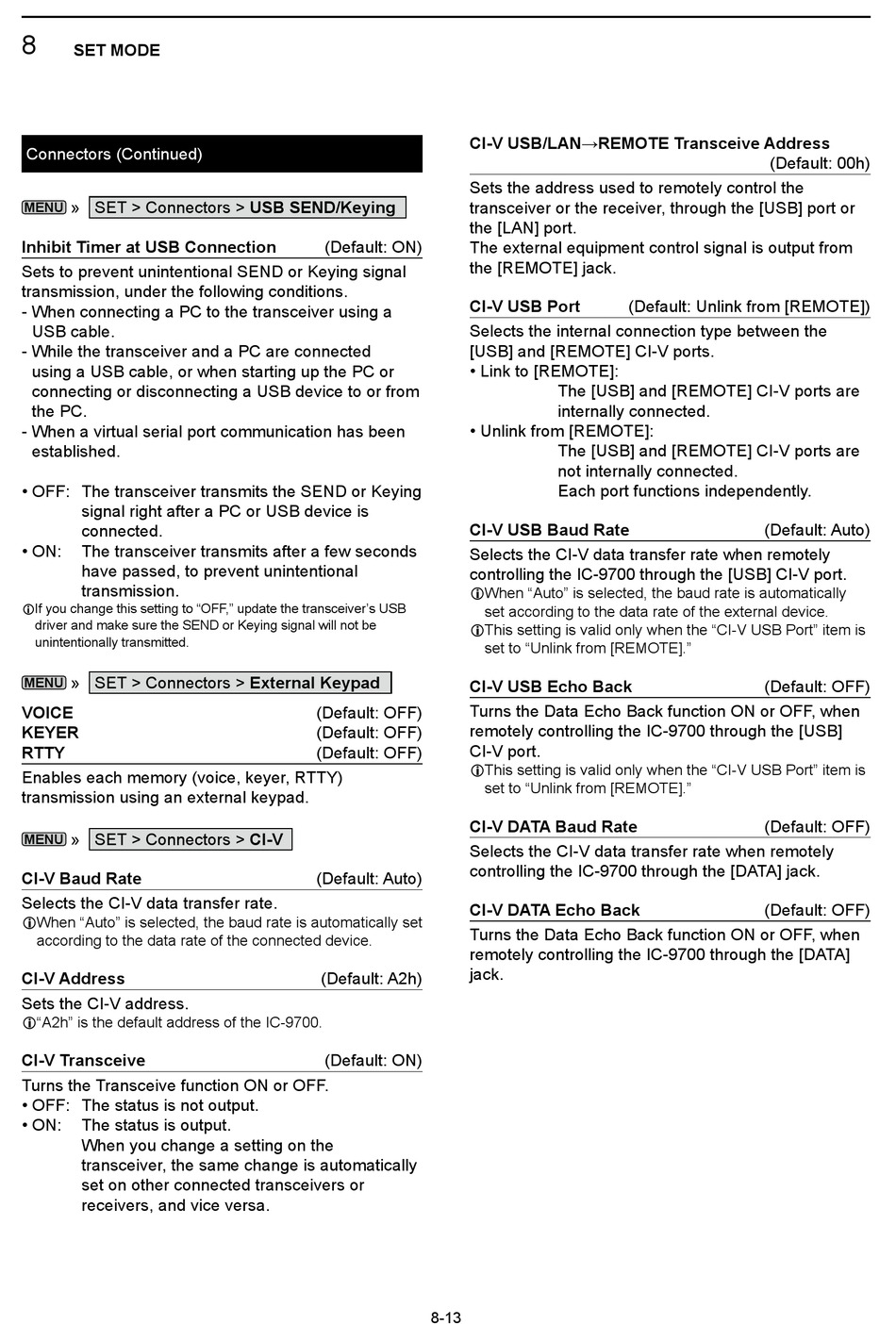

Icom IC-9700 Basic Manual page 68

8
SET MODE
Connectors (Continued)
» SET > Connectors > USB SEND/Keying
MENU
Inhibit Timer at USB Connection
Sets to prevent unintentional SEND or Keying signal
transmission, under the following conditions.
- When connecting a PC to the transceiver using a
USB cable.
- While the transceiver and a PC are connected
using a USB cable, or when starting up the PC or
connecting or disconnecting a USB device to or from
the PC.
- When a virtual serial port communication has been
established.
• OFF: The transceiver transmits the SEND or Keying
signal right after a PC or USB device is
connected.
• ON: The transceiver transmits after a few seconds
have passed, to prevent unintentional
transmission.
L If you change this setting to "OFF," update the transceiver's USB
driver and make sure the SEND or Keying signal will not be
unintentionally transmitted.
» SET > Connectors > External Keypad
MENU
VOICE
KEYER
RTTY
Enables each memory (voice, keyer, RTTY)
transmission using an external keypad.
» SET > Connectors > CI-V
MENU
CI-V Baud Rate
Selects the CI-V data transfer rate.
L When "Auto" is selected, the baud rate is automatically set
according to the data rate of the connected device.
CI-V Address
Sets the CI-V address.
L"A2h" is the default address of the IC-9700.
CI-V Transceive
Turns the Transceive function ON or OFF.
• OFF: The status is not output.
• ON: The status is output.
When you change a setting on the
transceiver, the same change is automatically
set on other connected transceivers or
receivers, and vice versa.
CI-V USB/LAN→REMOTE Transceive Address
Sets the address used to remotely control the
transceiver or the receiver, through the [USB] port or
the [LAN] port.
(Default: ON)
The external equipment control signal is output from
the [REMOTE] jack.
CI-V USB Port
Selects the internal connection type between the
[USB] and [REMOTE] CI-V ports.
• Link to [REMOTE]:
• Unlink from [REMOTE]:
CI-V USB Baud Rate
Selects the CI-V data transfer rate when remotely
controlling the IC-9700 through the [USB] CI-V port.
L When "Auto" is selected, the baud rate is automatically
set according to the data rate of the external device.
L This setting is valid only when the "CI-V USB Port" item is
set to "Unlink from [REMOTE]."
CI-V USB Echo Back
Turns the Data Echo Back function ON or OFF, when
(Default: OFF)
remotely controlling the IC-9700 through the [USB]
(Default: OFF)
CI-V port.
(Default: OFF)
L This setting is valid only when the "CI-V USB Port" item is
set to "Unlink from [REMOTE]."
CI-V DATA Baud Rate
Selects the CI-V data transfer rate when remotely
controlling the IC-9700 through the [DATA] jack.
(Default: Auto)
CI-V DATA Echo Back
Turns the Data Echo Back function ON or OFF, when
remotely controlling the IC-9700 through the [DATA]
jack.
(Default: A2h)
(Default: ON)
8-13
(Default: Unlink from [REMOTE])
The [USB] and [REMOTE] CI-V ports are
internally connected.
The [USB] and [REMOTE] CI-V ports are
not internally connected.
Each port functions independently.
(Default: 00h)
(Default: Auto)
(Default: OFF)
(Default: OFF)
(Default: OFF)
