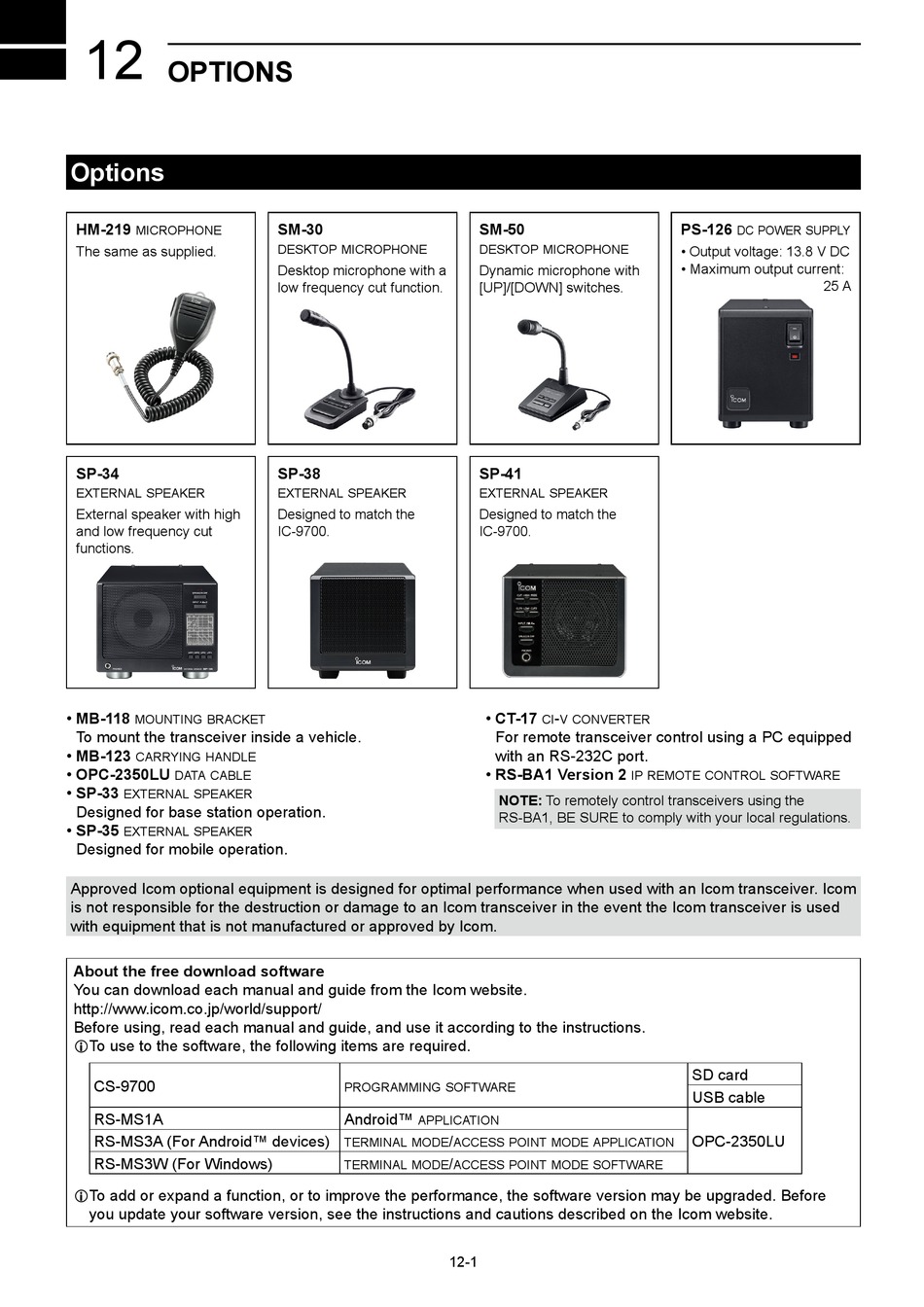

12
OPTIONS
Options
HM-219
microphone
The same as supplied.
SP-34
eXternal speaker
External speaker with high
and low frequency cut
functions.
• MB-118
mounting bracket
To mount the transceiver inside a vehicle.
• MB-123
carrying handle
• OPC-2350LU
data cable
• SP-33
eXternal speaker
Designed for base station operation.
• SP-35
eXternal speaker
Designed for mobile operation.
Approved Icom optional equipment is designed for optimal performance when used with an Icom transceiver. Icom
is not responsible for the destruction or damage to an Icom transceiver in the event the Icom transceiver is used
with equipment that is not manufactured or approved by Icom.
About the free download software
You can download each manual and guide from the Icom website.
http://www.icom.co.jp/world/support/
Before using, read each manual and guide, and use it according to the instructions.
L To use to the software, the following items are required.
CS-9700
RS-MS1A
RS-MS3A (For Android™ devices)
RS-MS3W (For Windows)
L To add or expand a function, or to improve the performance, the software version may be upgraded. Before
you update your software version, see the instructions and cautions described on the Icom website.
SM-30
desktop microphone
Desktop microphone with a
low frequency cut function.
SP-38
eXternal speaker
Designed to match the
IC-9700.
programming software
Android™
application
/
terminal mode
/
terminal mode
12-1
SM-50
desktop microphone
Dynamic microphone with
[UP]/[DOWN] switches.
SP-41
eXternal speaker
Designed to match the
IC-9700.
• CT-17
-
ci
V conVerter
For remote transceiver control using a PC equipped
with an RS-232C port.
• RS-BA1 Version 2
NOTE: To remotely control transceivers using the
RS-BA1, BE SURE to comply with your local regulations.
access point mode application
access point mode software
PS-126
dc power supply
• Output voltage: 13.8 V DC
• Maximum output current:
ip remote control software
SD card
USB cable
OPC-2350LU
25 A
