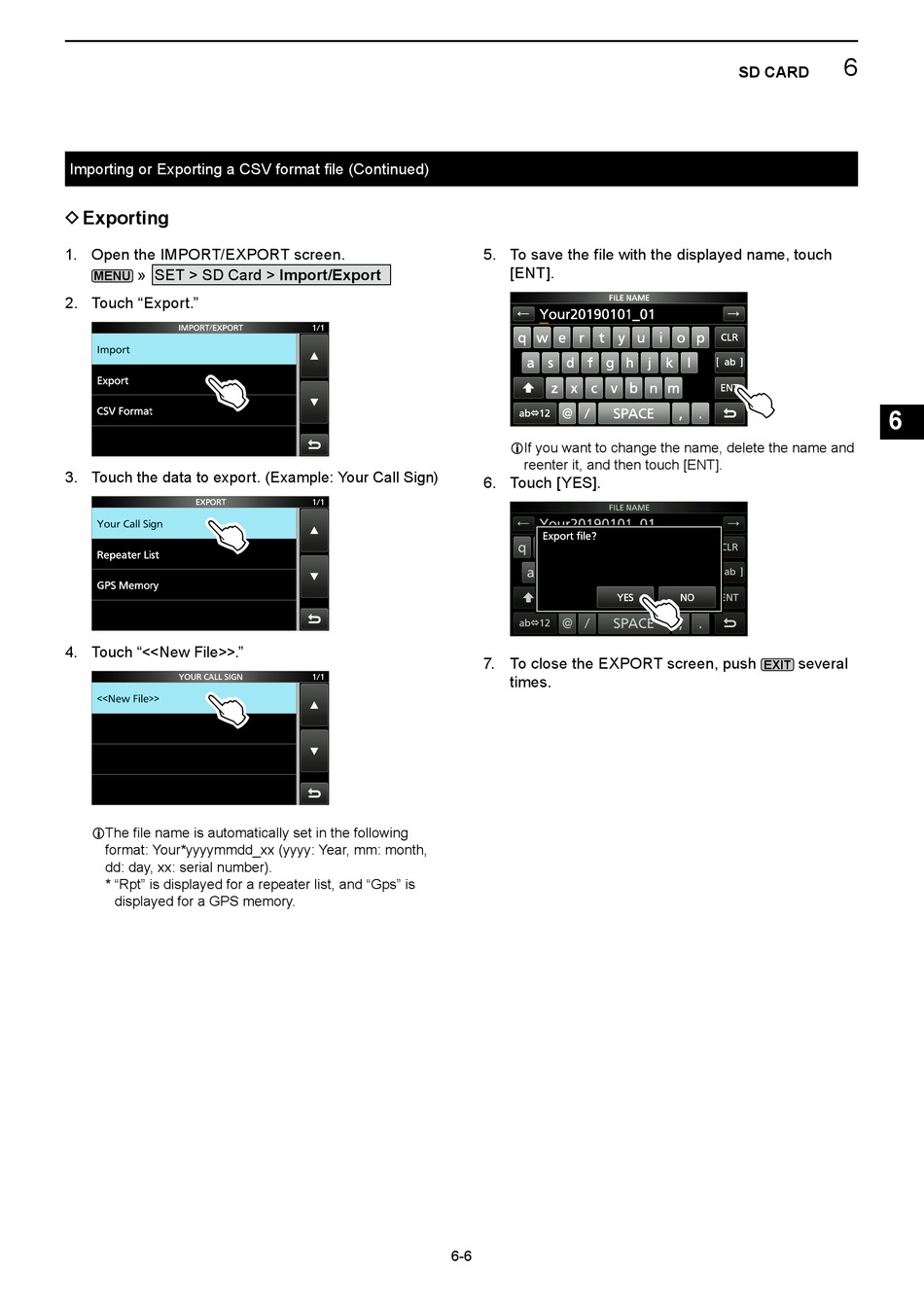

Importing or Exporting a CSV format file (Continued)
D Exporting
1. Open the IMPORT/EXPORT screen.
» SET > SD Card > Import/Export
MENU
2. Touch "Export."
3. Touch the data to export. (Example: Your Call Sign)
4. Touch "<<New File>>."
L The file name is automatically set in the following
format: Your*yyyymmdd_xx (yyyy: Year, mm: month,
dd: day, xx: serial number).
* "Rpt" is displayed for a repeater list, and "Gps" is
displayed for a GPS memory.
5. To save the file with the displayed name, touch
[ENT].
L If you want to change the name, delete the name and
reenter it, and then touch [ENT].
6. Touch [YES].
7. To close the EXPORT screen, push
times.
6-6
6
SD CARD
1
2
3
4
5
6
7
8
9
10
11
12
several
EXIT
13
14
15
16
17
18
19
20
21
- Quick Links:
- Rear Panel
Hide quick links:
Advertisement
Table of Contents
Need help?
Do you have a question about the IC-9700 and is the answer not in the manual?
Questions and answers
Hi I cannot get my ic7900 to work on independe freq and green light sub is on plus I got main rev and sub in my screen .and cannot get my transceiver work with DUB function.on 2 meter please can you help ?
To resolve the issue where the Icom IC-9700 is not working on an independent frequency with the green Sub light on and the Dualwatch (DUB) function not functioning on 2 meters:
1. Confirm Dualwatch is Enabled: Hold down the OFF button for 1 second to turn the Dualwatch function ON. This activates independent monitoring of both Main and Sub bands.
2. Select the Proper Band: Touch the grayed frequency readout to select the active band. Ensure the Main and Sub bands are set to different frequencies and not both on 2 meters, as the same frequency cannot be set on both bands.
3. Check Band Settings: Ensure that the Sub band is not set to the same frequency or band as the Main. The IC-9700 supports independent operation on different bands, but not the same frequency on both Main and Sub.
4. Verify TX is on Main Band: Transmission is only possible on the Main band (except in Split Frequency mode), so ensure the Main band is the one you intend to transmit on.
5. Check for Mode Compatibility: Some functions only apply to the selected band and mode. Confirm that the correct mode (FM, SSB, etc.) is selected for the band in use.
Following these steps should allow independent frequency operation with Dualwatch enabled.
This answer is automatically generated
