6

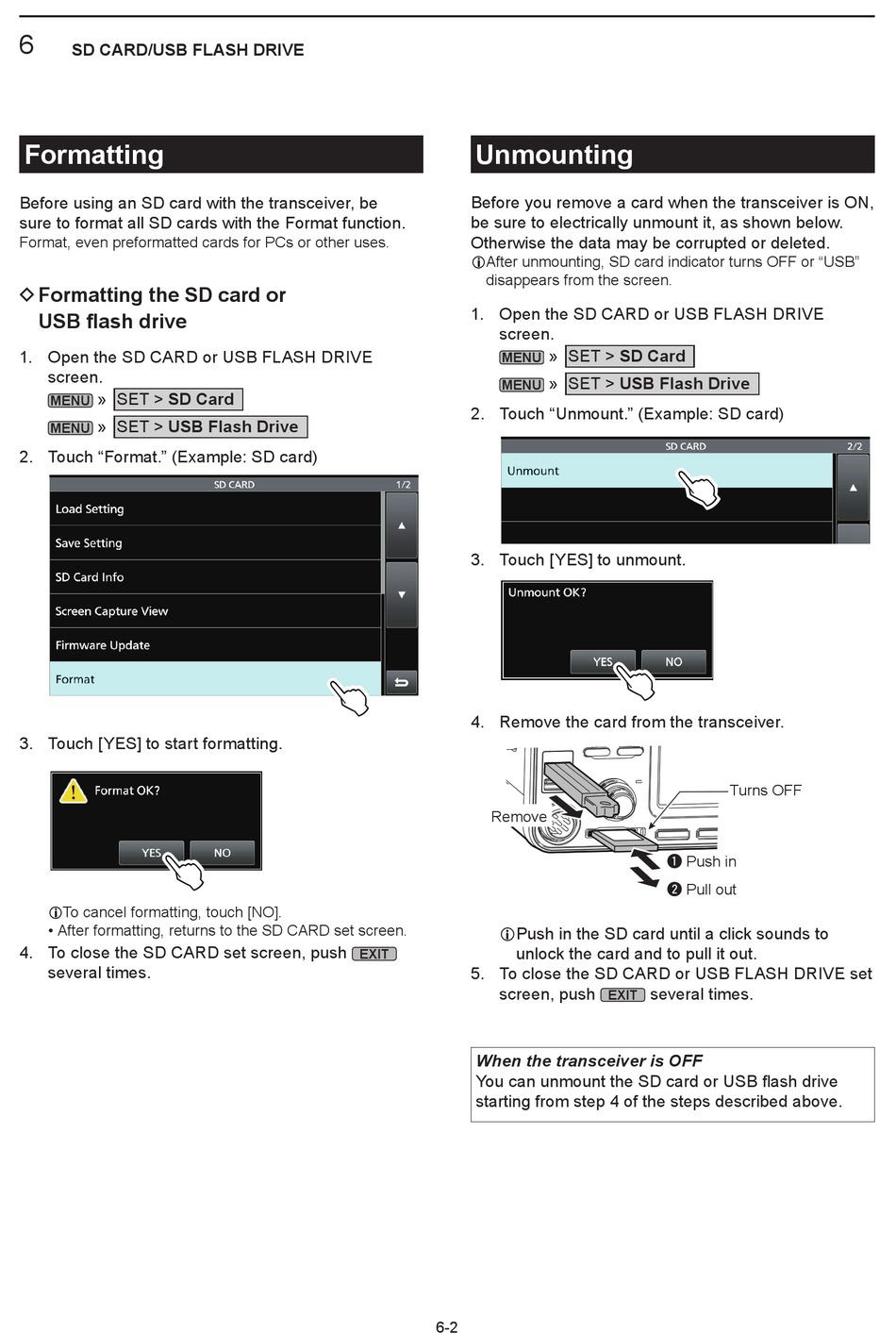

SD CARD/USB FLASH DRIVE

Formatting

Before using an SD card with the transceiver, be
sure to format all SD cards with the Format function.
Format, even preformatted cards for PCs or other uses.

D Formatting the SD card or

USB flash drive

1. Open the SD CARD or USB FLASH DRIVE
screen.
» SET > SD Card
MENU
» SET > USB Flash Drive
MENU
2. Touch "Format." (Example: SD card)
3. Touch [YES] to start formatting.
LTo cancel formatting, touch [NO].
• After formatting, returns to the SD CARD set screen.
4. To close the SD CARD set screen, push
several times.

Unmounting

Before you remove a card when the transceiver is ON,
be sure to electrically unmount it, as shown below.
Otherwise the data may be corrupted or deleted.
L After unmounting, SD card indicator turns OFF or "USB"
disappears from the screen.
1. Open the SD CARD or USB FLASH DRIVE
screen.
MENU
MENU
2. Touch "Unmount." (Example: SD card)
3. Touch [YES] to unmount.
4. Remove the card from the transceiver.
Remove
L Push in the SD card until a click sounds to
unlock the card and to pull it out.
EXIT
5. To close the SD CARD or USB FLASH DRIVE set
screen, push
When the transceiver is OFF
You can unmount the SD card or USB flash drive
starting from step 4 of the steps described above.
6-2
» SET > SD Card
» SET > USB Flash Drive
q Push in
w Pull out
several times.
EXIT
Turns OFF
