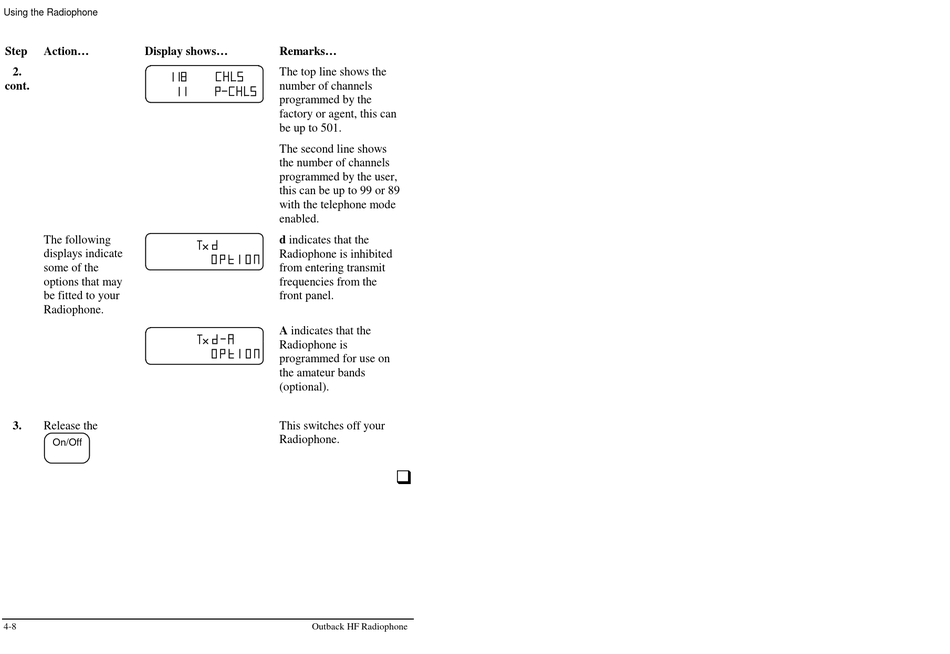

Codan 8525B Series Handbook page 36

Using the Radiophone
Step Action... Display shows...
2.
cont.
The following
displays indicate
some of the
options that may
be fitted to your
Radiophone.
3. Release the
On/Off
4-8
Remarks...
The top line shows the
number of channels
programmed by the
factory or agent, this can
be up to 501.
The second line shows
the number of channels
programmed by the user,
this can be up to 99 or 89
with the telephone mode
enabled.
d indicates that the
Radiophone is inhibited
from entering transmit
frequencies from the
front panel.
A indicates that the
Radiophone is
programmed for use on
the amateur bands
(optional).
This switches off your
Radiophone.
q
Outback HF Radiophone
