Front and rear panel sockets

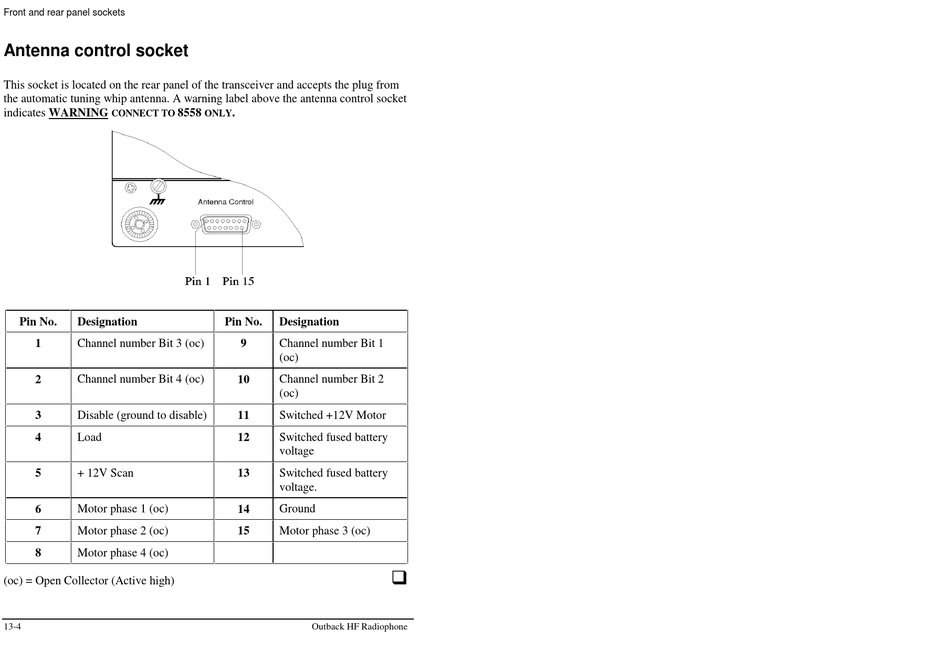

Antenna control socket

This socket is located on the rear panel of the transceiver and accepts the plug from
the automatic tuning whip antenna. A warning label above the antenna control socket
indicates WARNING 8558
CONNECT TO
Pin No. Designation
1 Channel number Bit 3 (oc)
2 Channel number Bit 4 (oc)
3 Disable (ground to disable)
4 Load
5 + 12V Scan
6 Motor phase 1 (oc)
7 Motor phase 2 (oc)
8 Motor phase 4 (oc)
(oc) = Open Collector (Active high)
13-4
.
ONLY
Pin No. Designation
9 Channel number Bit 1
(oc)
10 Channel number Bit 2
(oc)
11 Switched +12V Motor
12 Switched fused battery
voltage
13 Switched fused battery
voltage.
14 Ground
15 Motor phase 3 (oc)
