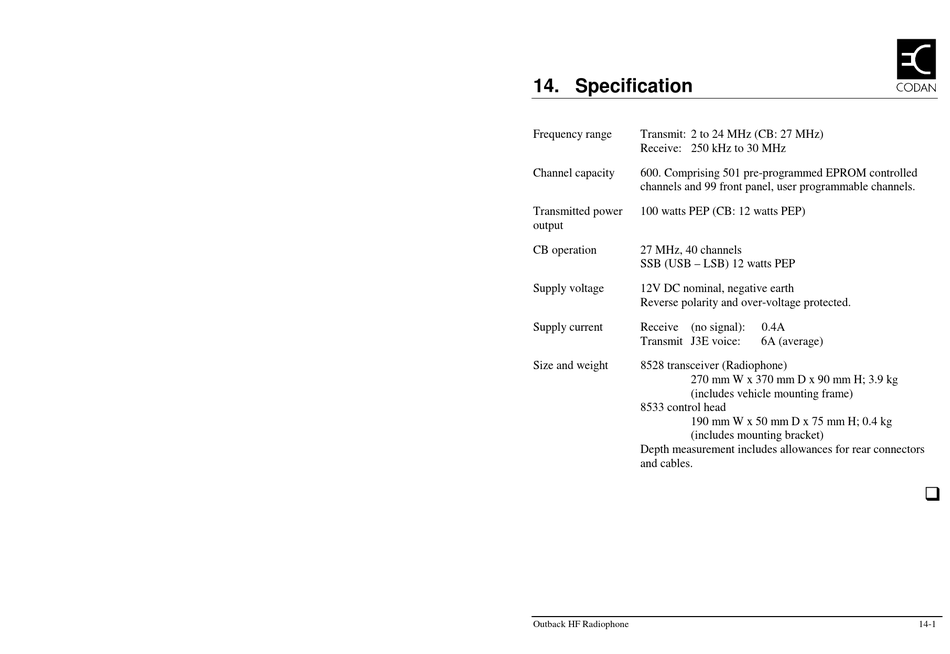

14. Specification

Frequency range Transmit: 2 to 24 MHz (CB: 27 MHz)
Receive: 250 kHz to 30 MHz
Channel capacity 600. Comprising 501 pre-programmed EPROM controlled
channels and 99 front panel, user programmable channels.
Transmitted power 100 watts PEP (CB: 12 watts PEP)
output
CB operation 27 MHz, 40 channels
SSB (USB – LSB) 12 watts PEP
Supply voltage 12V DC nominal, negative earth
Reverse polarity and over-voltage protected.
Supply current Receive (no signal):
Transmit J3E voice:
Size and weight 8528 transceiver (Radiophone)
270 mm W x 370 mm D x 90 mm H; 3.9 kg
(includes vehicle mounting frame)
8533 control head
190 mm W x 50 mm D x 75 mm H; 0.4 kg
(includes mounting bracket)
Depth measurement includes allowances for rear connectors
and cables.
Outback HF Radiophone
0.4A
6A (average)
q
14-1
