Item No. Item Function
22 Selects the next lower channel. It also keys in
9
number 9.
23 Selects the next higher channel. It also keys in
4
number 4.
24 Decreases the audio volume. It also keys in the
O
P number 0 and the letter P.
25 Increases the audio volume. It also keys in
5
number 5.
1 2 2 3 4 5 6 7
Selective
Tune
On'Off
Call
OTC
USB
Tx
S'Call LSB
OTC
1
Tone Call
Fast
Receiver Tuning
Fast
RFDS 6
Emgcy
13 14 15 16 17 18

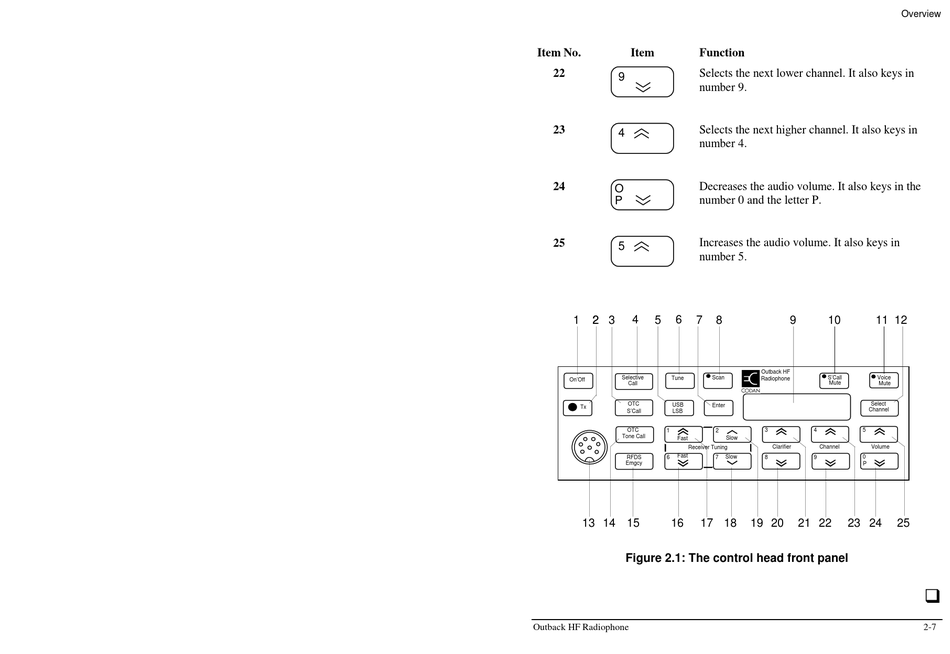

Figure 2.1: The control head front panel
Outback HF Radiophone
8 9 10 11 12
Outback HF
Scan S'Call Voice
Radiophone
Mute
Mute
Select
Enter
Channel
3 4 5
2
Slow
Clarifier Channel Volume
Slow 0
7 8 9
P
19 20 21 22 23 24
Overview
25
q
2-7
