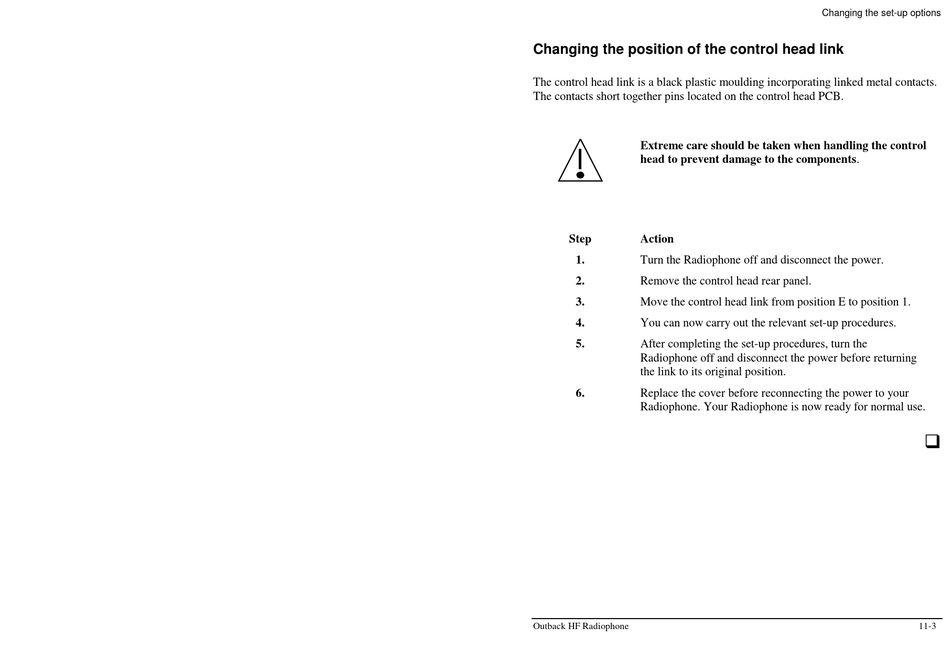

Changing the position of the control head link

The control head link is a black plastic moulding incorporating linked metal contacts.
The contacts short together pins located on the control head PCB.
Extreme care should be taken when handling the control
head to prevent damage to the components.
Step Action
1. Turn the Radiophone off and disconnect the power.
2. Remove the control head rear panel.
3. Move the control head link from position E to position 1.
4. You can now carry out the relevant set-up procedures.
5. After completing the set-up procedures, turn the
Radiophone off and disconnect the power before returning
the link to its original position.
6. Replace the cover before reconnecting the power to your
Radiophone. Your Radiophone is now ready for normal use.
