3. Installation

On receipt of your Outback HF Radiophone package, check
the contents against the packing list. Ensure all items are
available before commencing installation.
The following notes provide guidance to your vehicle
installation but are not intended to be comprehensive
procedures. It is recommended that installation is carried out
by qualified and experienced personnel.

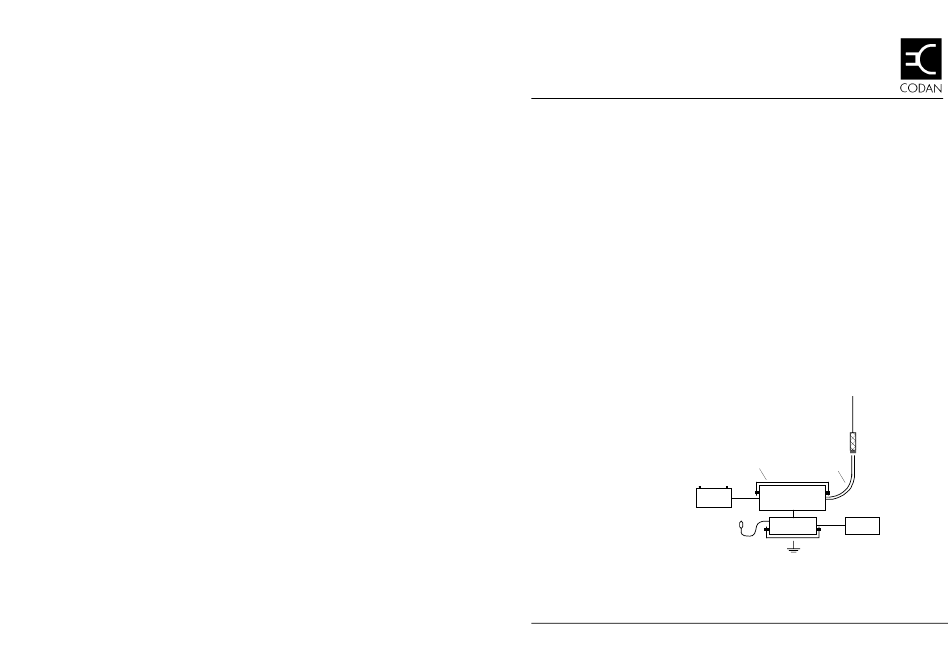

The vehicle installation (figure 3.1) typically consists of a
12V DC power supply (battery) connected to the transceiver
with the automatic tuning antenna connected to the
transceiver by coaxial cable and control cable.
The microphone is connected to the control head which, in
turn, is connected to the transceiver. The speaker can be
connected to either the transceiver or the control head.
12V Battery
Microphone
Figure 3.1: Typical vehicle installation
Outback HF Radiophone
Automatic tuning
whip antenna
Coaxial
and
Vehicle mounting
control
cradle
cable
Transceiver
Control head Speaker
Vehicle earth
3-1
