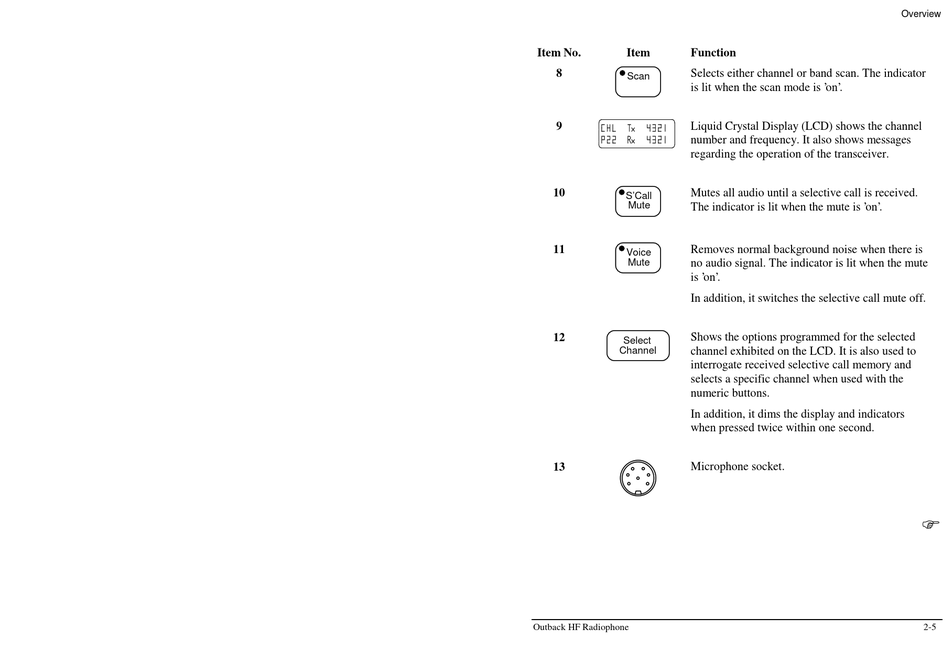

Item No. Item Function
8 Selects either channel or band scan. The indicator
Scan
is lit when the scan mode is 'on'.
9 Liquid Crystal Display (LCD) shows the channel
number and frequency. It also shows messages
regarding the operation of the transceiver.
10 Mutes all audio until a selective call is received.
S'Call
Mute
The indicator is lit when the mute is 'on'.
11 Removes normal background noise when there is
Voice
Mute no audio signal. The indicator is lit when the mute
is 'on'.
In addition, it switches the selective call mute off.
12 Shows the options programmed for the selected
Select
Channel
channel exhibited on the LCD. It is also used to
interrogate received selective call memory and
selects a specific channel when used with the
numeric buttons.
In addition, it dims the display and indicators
when pressed twice within one second.
13 Microphone socket.
