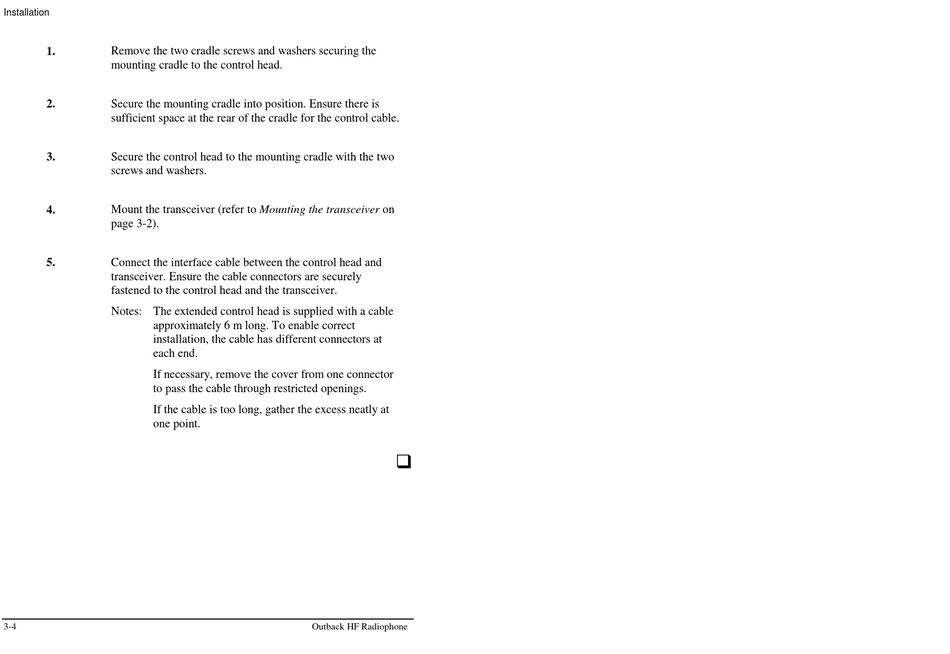

Codan 8525B Series Handbook page 24

Installation
Remove the two cradle screws and washers securing the
1.
mounting cradle to the control head.
2. Secure the mounting cradle into position. Ensure there is
sufficient space at the rear of the cradle for the control cable.
3. Secure the control head to the mounting cradle with the two
screws and washers.
4. Mount the transceiver (refer to Mounting the transceiver on
page 3-2).
5. Connect the interface cable between the control head and
transceiver. Ensure the cable connectors are securely
fastened to the control head and the transceiver.
Notes: The extended control head is supplied with a cable
approximately 6 m long. To enable correct
installation, the cable has different connectors at
each end.
If necessary, remove the cover from one connector
to pass the cable through restricted openings.
If the cable is too long, gather the excess neatly at
one point.
