Codan 8525B Series Handbook page 119

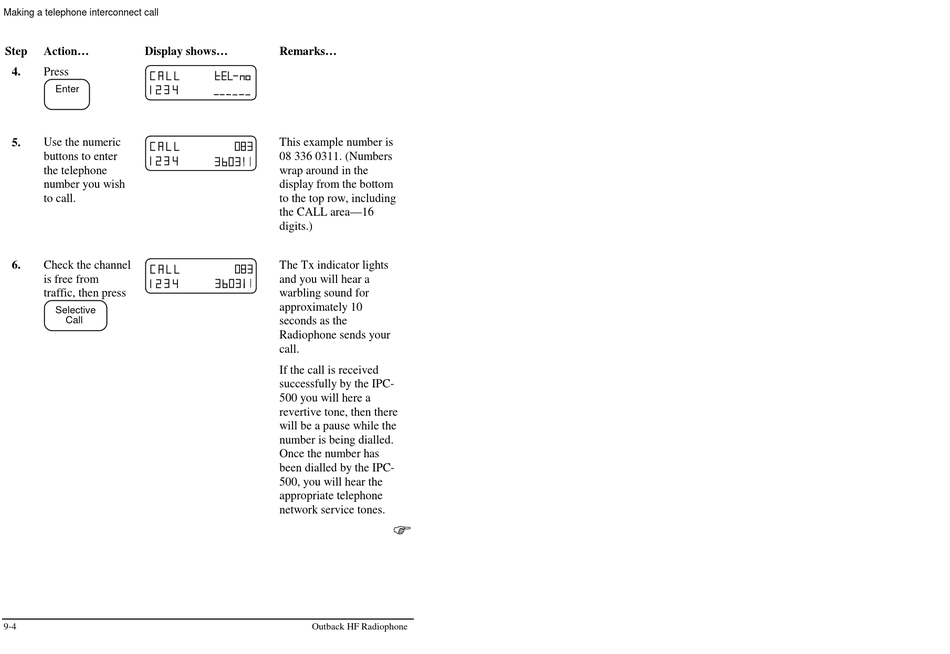

Making a telephone interconnect call
Step Action... Display shows...
4. Press
Enter
5. Use the numeric
buttons to enter
the telephone
number you wish
to call.
6. Check the channel
is free from
traffic, then press
Selective
Call
9-4
Remarks...
This example number is
08 336 0311. (Numbers
wrap around in the
display from the bottom
to the top row, including
the CALL area—16
digits.)
The Tx indicator lights
and you will hear a
warbling sound for
approximately 10
seconds as the
Radiophone sends your
call.
If the call is received
successfully by the IPC-
500 you will here a
revertive tone, then there
will be a pause while the
number is being dialled.
Once the number has
been dialled by the IPC-
500, you will hear the
appropriate telephone
network service tones.
F
Outback HF Radiophone
