ZiLOG Z8 User Manual page 61

Hide thumbs Also See for Z8:
Table of Contents

Advertisement

ZiLOG
P37 OUT
P32
+
-
REF (P33)
P37 OUT
P32
+
-
REF (P33)
PCON
UM001601-0803
0 P34, P37 Standard Output
D0
1 P34, P37 Comparator Output

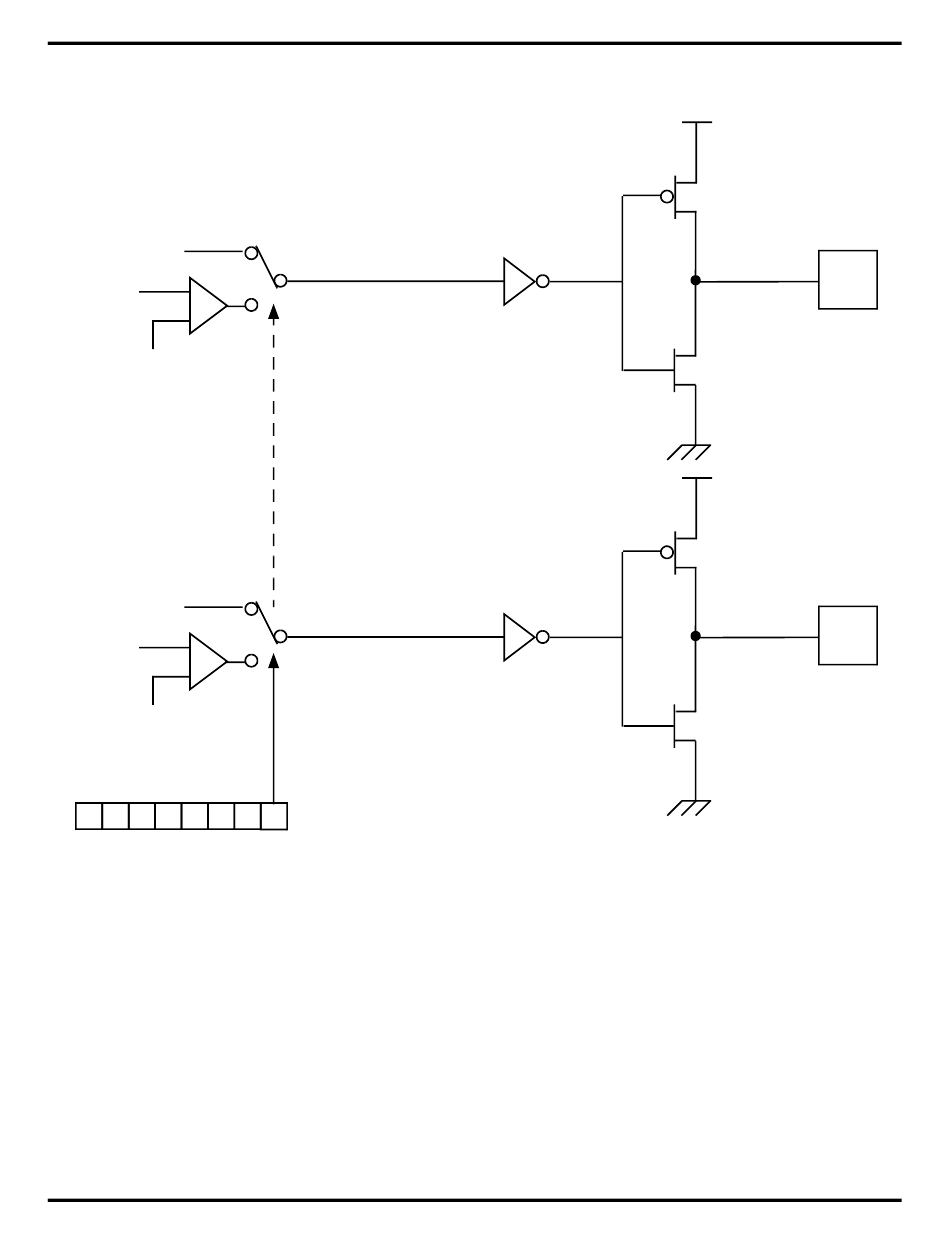

Figure 5-19. Port 3 Configuration with Comparator
Z8 Microcontrollers
I/O Ports
P34
PIN
P37
PIN
5-15
