Z8 Microcontrollers
External Interface ZiLOG
M1
M2 M3
T1 T3
T3 T1 T2
T1 T2 T2 T3
Clock
A15-A8 A15-A8 A15-A8
A15-A8
A7-A0 A7-A0 A7-A0 A7-A0
A7-A0 A7-A0 A7-A0
AS
DS
R/W
Fetch 2nd Byte
Fetch 3rd Byte
Fetch 1st Byte
(3-Byte Instruction)
Fetch 1st Byte (1- or 2-Byte Instruction)
*Port inputs are strobed during T2, which is two internal system clocks before
the execution cycle of the current instruction.

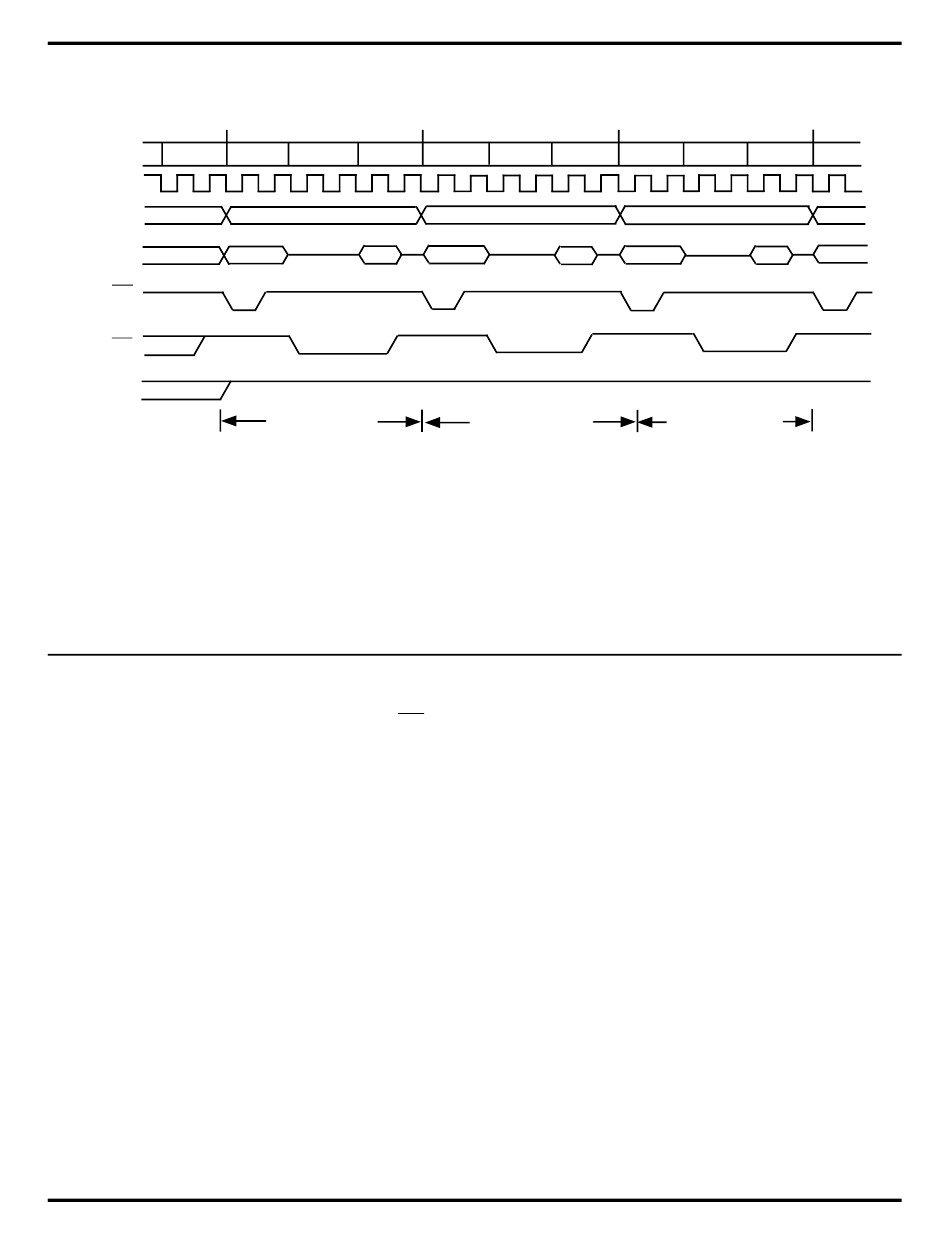

Figure 10-11. Instruction Cycle Timing (2- and 3-Byte Instructions)

10.9 Z8 RESET CONDITIONS

After a hardware reset, extended timing is set to accommodate
slow memory access during the configuration routine, DM is in-
active, the stack resides in the register file. Port 0, 1, and 2 are
reset to input mode. Port 2 is set to Open-Drain Mode.
